ZLINE Kitchen and Bath 373AA-RS-30-400, 373AR-RS-42-400, 373AR-RS-48, 373AR-RS-30-400, 373AR-RS-30, 373AR-RS-48-400, 373AR-RD-48, 373AR-30, 373AR-RS-36 Specification

ZLINE Kitchen and Bath 373AA-RS-30-400, 373AR-RS-42-400, 373AR-RS-48, 373AR-RS-30-400, 373AR-RS-30, 373AR-RS-48-400, 373AR-RD-48, 373AR-30, 373AR-RS-36 Specification

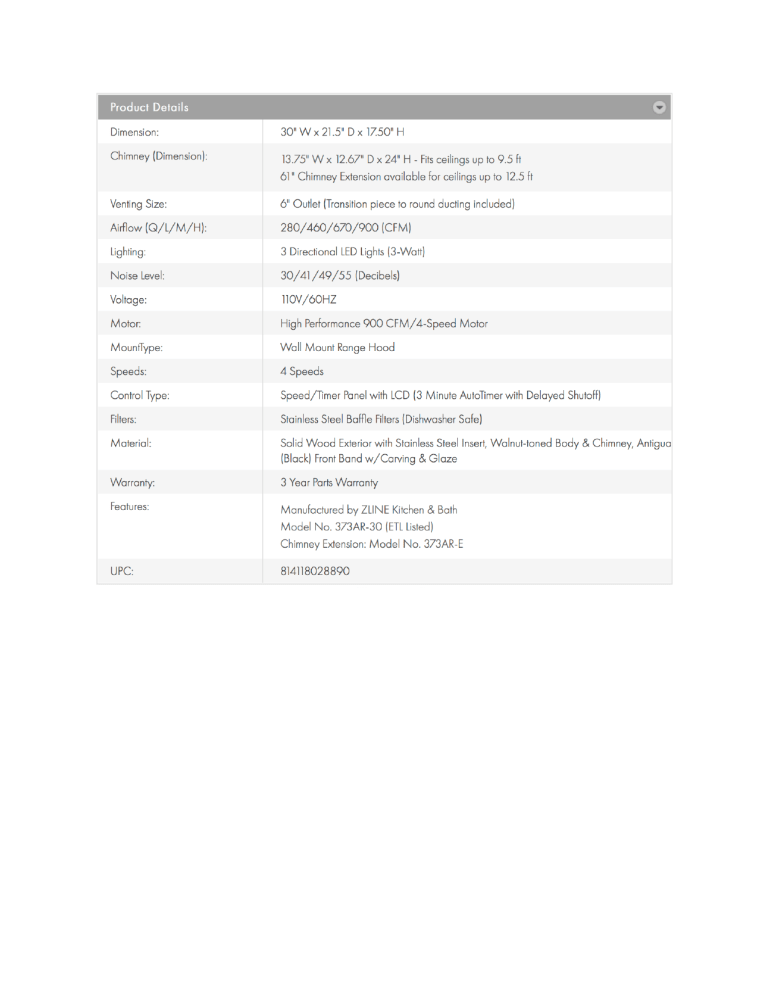

Product Details
Dimension:
Chimney (Dimension):
Venting Size:
Airflow (Q/L/M/H):
Lighting:
Noise Level:
Voltage:
Motor:
Mounilype:
Speeds:
Control Type:
Filters:
Material:
Warranty:
Features:
UPC:
30" W x 21.5" D x 1750" H
13.75" W x 12.67" D x 24" H - Fits ceilings up to 9.5 ft
61" Chimney Extension available for ceilings up to 12.5 ft
6" Outlet (Transition piece to round ducting included)
280/460/670/900 (СЕМ)
3 Directional LED Lights (3-Watt)
30/41 /49/55 (Decibels)
110V/60HZ
High Performance 900 CFM /4-Speed Motor
Wall Mount Range Hood
4 Speeds
Speed/ Timer Panel with LCD (3 Minute Autolimer with Delayed Shutoff)
Stainless Steel Baffle Filters (Dishwasher Safe)
Solid Wood Exterior with Stainless Steel Insert, Walnut-toned Body & Chimney, Antigua
(Black) Front Band w/ Carving & Glaze
3 Year Parts Warranty
Manufactured by ZLINE Kitchen & Bath
Model No. 373AR-30 (ETL Listed)
Chimney Extension: Model No. 373AR-E
814118028890
