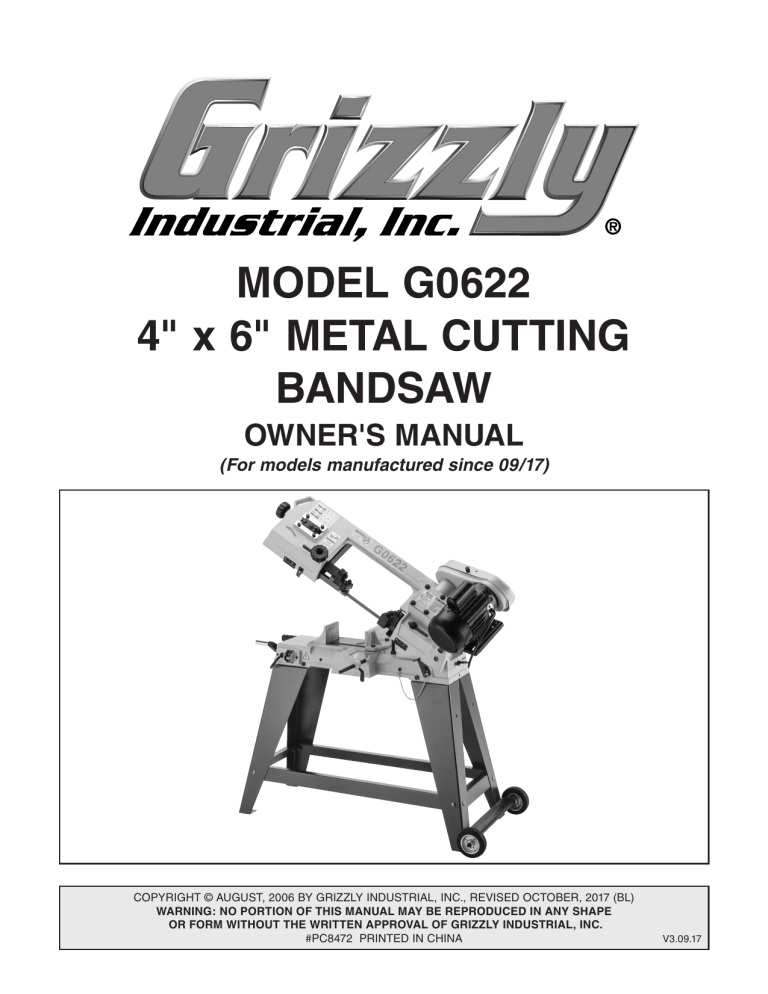

MODEL G0622
4" x 6" METAL CUTTING
BANDSAW
OWNER'S MANUAL
(For models manufactured since 09/17)
COPYRIGHT © AUGUST, 2006 BY GRIZZLY INDUSTRIAL, INC., REVISED OCTOBER, 2017 (BL)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#PC8472 PRINTED IN CHINA
V3.09.17
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
•
•
•
Lead from lead-based paints.
Crystalline silica from bricks, cement and other masonry products.
Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Table of Contents
INTRODUCTION................................................ 2
Contact Info.................................................... 2
Manual Accuracy............................................ 2
Identification.................................................... 3
Machine Data Sheet....................................... 4
SECTION 1: SAFETY........................................ 6
Safety Instructions for Machinery................... 6
Additional Safety for Horizontal ..................... 8
Metal Bandsaws............................................. 8
SECTION 2: POWER SUPPLY......................... 9
SECTION 3: SETUP........................................ 11
Needed for Setup.......................................... 11
Unpacking..................................................... 11
Inventory....................................................... 12
Cleanup......................................................... 13
Site Considerations....................................... 14
Assembly...................................................... 15
Test Run....................................................... 18
Recommended Adjustments......................... 18
SECTION 4: OPERATIONS............................ 19
Operation Overview...................................... 19
Operation Tips.............................................. 20
Vertical Operation......................................... 21
Head-Locking Pin......................................... 22
Vise............................................................... 23
Blade Guides................................................ 24
Feed Rate..................................................... 24
Blade Speed................................................. 25
Blade Terminology........................................ 25
Blade Selection............................................. 26
Metal Chip Inspection Chart......................... 27
SECTION 5: ACCESSORIES.......................... 28
SECTION 6: MAINTENANCE.......................... 30
Schedule....................................................... 30
Cleaning........................................................ 30
Lubrication.................................................... 30
SECTION 7: SERVICE.................................... 31
Troubleshooting............................................ 31
Blade Change............................................... 33
Blade Tracking.............................................. 34
Blade Tension............................................... 35
Squaring the Blade....................................... 35
Blade Guide Bearings................................... 36
SECTION 8: WIRING....................................... 37
Wiring Safety Instructions............................. 37
Electrical Components.................................. 38
Wiring Diagram............................................. 38
SECTION 9: PARTS........................................ 39
Main.............................................................. 39
WARRANTY AND RETURNS......................... 45
INTRODUCTION
Contact Info
Manual Accuracy
We stand behind our machines! If you have questions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number and manufacture date from the
machine ID label. This will help us help you faster.
We are proud to provide a high-quality owner’s
manual with your new machine!
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546-9663
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
We made every effort to be exact with the instructions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that sometimes the machine you receive is
slightly different than shown in the manual.
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something, check our
website for an updated version. We post current
manuals and manual updates for free on our website at www.grizzly.com.
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the Manufacture Date and Serial Number from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documentation is available for your machine.
Manufacture Date
Serial Number
-2-
Model G0622 (Mfd. Since 09/17)
Identification
D
E
F
C
B
G
A
H
J
I
K
L
N
O
P
M
Figure 1. Model G0622 controls and features.
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
L.
M.
N.
O.
P.
Model G0622 (Mfd. Since 09/17)
Motor
Pulley Cover
Blade
Blade Guard Adjustment Knob
Blade Tracking Mechanism
Blade Tension Knob
Auto-Off Tab
Blade Guide Bearing Assemblies
Vise Jaws
Feed Adjustment Handle
Vise Crank
Power Switch
Stand
Work Stop
Horizontal Stop
Stand Wheels
-3-
Machine Data Sheet
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL G0622 4" X 6" METAL‐CUTTING BANDSAW
Product Dimensions:
Weight.............................................................................................................................................................. 117 lbs.
Width (side-to-side) x Depth (front-to-back) x Height........................................................................... 34 x 14 x 38 in.
Footprint (Length x Width)............................................................................................................................ 34 x 14 in.
Shipping Dimensions:
Type..................................................................................................................................................... Cardboard Box
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 122 lbs.
Length x Width x Height....................................................................................................................... 39 x 13 x 15 in.
Must Ship Upright................................................................................................................................................... Yes
Electrical:
Power Requirement........................................................................................................... 110V, Single-Phase, 60 Hz
Prewired Voltage.................................................................................................................................................. 110V
Full-Load Current Rating.......................................................................................................................................... 5A
Minimum Circuit Size.............................................................................................................................................. 15A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length.......................................................................................................................................... 6-1/2 ft.
Power Cord Gauge......................................................................................................................................... 18 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type................................................................................................................................................ 5-15
Switch Type................................................................ Toggle Safety Switch w/Removable Key & Automatic Shut-Off
Motors:
Main
Horsepower............................................................................................................................................. 3/4 HP
Phase............................................................................................................................................ Single-Phase
Amps.............................................................................................................................................................. 5A
Speed................................................................................................................................................ 1725 RPM
Type................................................................................................................. TEFC Capacitor-Start Induction
Power Transfer ............................................................................................................................... V-Belt Drive
Bearings..................................................................................................... Shielded & Permanently Lubricated
Main Specifications:
Operation Info
Blade Speeds......................................................................................................................... 78, 108, 180 FPM
Std. Blade Length................................................................................................................................ 64-1/2 in.
Blade Size Range..................................................................................................................................... 1/2 in.
Model G0622
-4-
The information contained herein is deemed accurate as of 10/9/2017 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.
PAGE 1 OF 2
Model G0622 (Mfd. Since 09/17)
Cutting Capacities
Cutting Height.............................................................................................................................................. 6 in.
Angle Cuts......................................................................................................................................... 0 - 60 deg.
Vise Jaw Depth...................................................................................................................................... 6-1/2 in.
Vise Jaw Height..................................................................................................................................... 3-1/4 in.
Max. Capacity Rectangular Height at 90 Deg....................................................................................... 4-1/2 in.
Max. Capacity Rectangular Width at 90 Deg............................................................................................... 6 in.
Max. Capacity Round at 90 Deg............................................................................................................ 4-1/2 in.
Max. Capacity Rectangular Height at 45 Deg....................................................................................... 4-1/2 in.
Max. Capacity Rectangular Width at 45 Deg......................................................................................... 3-1/2 in.
Max. Capacity Round at 45 Deg............................................................................................................ 3-1/2 in.
Max. Capacity Rectangular Height at 60 Deg....................................................................................... 4-1/2 in.
Max. Capacity Rectangular Width at 60 Deg............................................................................................... 5 in.
Max. Capacity Round at 60 Deg............................................................................................................ 4-1/2 in.
Construction
Table.................................................................................................................................................... Cast Iron
Upper Wheel........................................................................................................................................ Cast Iron
Lower Wheel........................................................................................................................................ Cast Iron
Body..................................................................................................................................................... Cast Iron
Base..................................................................................................................................................... Cast Iron
Stand....................................................................................................................................... Pre-formed Steel
Wheel Cover.......................................................................................................................... Pre-Formed Steel
Paint Type/Finish........................................................................................................... Urethane Hammertone
Other
Wheel Size............................................................................................................................................ 7-3/8 in.
Blade Guides Upper........................................................................................................................ Ball Bearing
Blade Guides Lower........................................................................................................................ Ball Bearing
Mobile Base............................................................................................................................................. Built-In
Table Info
Table Size Length................................................................................................................................ 10-1/4 in.
Table Size Width................................................................................................................................... 6-3/4 in.
Table Size Thickness............................................................................................................................ 1-1/4 in.
Floor To Cutting Area Height..................................................................................................................... 33 in.
Other Specifications:
Country of Origin ................................................................................................................................................ China
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ........................................................................................................ 30 Minutes
Serial Number Location .................................................................................................................. ID on Body Frame
ISO 9001 Factory .................................................................................................................................................... No
Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No
Features:
Horizontal and Vertical Operation
Automatic Shut-Off
3/4 HP Motor
Work Stop
Model G0622
The information contained herein is deemed accurate as of 10/9/2017 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.
Model G0622 (Mfd. Since 09/17)
PAGE 2 OF 2
-5-
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
NOTICE
This symbol is used to alert the user to useful information about
proper operation of the machine.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
-6-
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST. Always disconnect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Model G0622 (Mfd. Since 09/17)
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
Model G0622 (Mfd. Since 09/17)
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-7-
Additional Safety for Horizontal
Metal Bandsaws
Serious injury or death can occur from getting fingers, hair, or clothing entangled in rotating or
moving parts or making direct contact with the moving blade. To minimize risk of injury, anyone
operating this machine MUST completely heed hazards and warnings below.
BLADE CONDITION. Do not operate with dull,
cracked, or badly worn blade. Inspect blades for
cracks and missing teeth before each use.
HAND PLACEMENT. Never position hands or fingers in line with the cut or under bandsaw headstock while lowering or operating. Hands could be
cut or crushed.
ENTANGLEMENT HAZARDS. Do not operate
this saw without blade guard in place. Loose
clothing, jewelry, long hair and work gloves can be
drawn into working parts.
BLADE REPLACEMENT. When replacing
blades, disconnect the machine from power, wear
gloves to protect hands and safety glasses to
protect eyes.
WORKPIECE HANDLING. Always properly support workpiece with table, vise, or some type of
support fixture. Flag long pieces to avoid a tripping hazard. Never hold the workpiece with your
hands during a cut.
Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety
precautions are overlooked or ignored,
serious personal injury may occur.
-8-
UNSTABLE WORKPIECES. Avoid cutting workpieces that cannot be properly supported or
clamped in a vise or jig, because they can unexpectedly move while cutting and draw the operator’s hands into the blade causing serious personal injury. Examples are chains, cables, round
or oblong-shaped workpieces, and those with
internal or built-in moving or rotating parts, etc.
FIRE HAZARD. Use EXTREME CAUTION if cutting magnesium. Using the wrong cutting fluid
could lead to chip fire and possible explosion.
CUTTING FLUID SAFETY. Cutting fluids are
poisonous. Always follow manufacturer’s cuttingfluid safety instructions. Pay particular attention
to contact, contamination, inhalation, storage and
disposal warnings. Spilled cutting fluid invites slipping hazards.
HOT SURFACES. Contact with hot surfaces from
machine components, ejections of hot chips,
swarf, and the workpiece itself can cause burns.
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equipment, or poor work results.
Model G0622 (Mfd. Since 09/17)
SECTION 2: POWER SUPPLY
Availability
Before installing the machine, consider the availability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.
Electrocution, fire, shock,
or equipment damage
may occur if machine is
not properly grounded
and connected to power
supply.
Full-Load Current Rating
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.
Full-Load Current Rating at 110V......... 5 Amps
The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.
If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid overloading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.
Model G0622 (Mfd. Since 09/17)
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.
110V Circuit Requirements
This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:
Nominal Voltage............................... 110V–120V
Cycle...........................................................60 Hz
Phase............................................ Single-Phase
Power Supply Circuit.......................... 15 Amps
A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power supply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)
For your own safety and protection of
property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, consult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.
-9-
Grounding & Plug Requirements
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!
GROUNDED
5-15 RECEPTACLE
Grounding Prong
5-15 PLUG
Neutral Hot
Figure 2. Typical 5-15 plug and receptacle.
Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is necessary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service personnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with
a new one.
Extension Cords
We do not recommend using an extension cord
with this machine. If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.
Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:
Minimum Gauge Size............................14 AWG
Maximum Length (Shorter is Better).......50 ft.
SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if
it will not fit the outlet, have a qualified
electrician install the proper outlet with a
verified ground.
-10-
Model G0622 (Mfd. Since 09/17)
SECTION 3: SETUP
Needed for Setup
This machine presents
serious injury hazards
to untrained users. Read
through this entire manual to become familiar with
the controls and operations before starting the
machine!
Wear safety glasses during
the entire setup process!
The Model G0622 is a
heavy machine. DO NOT
over-exert yourself while
unpacking or moving
your machine—get assistance.
The following are needed to complete the setup
process, but are not included with your machine:
Description
Qty
•
Safety Glasses......................... 1 Per Person
•
Open-End Wrench 10mm............................ 1
•
Open-End Wrench 14mm............................ 1
•
Sawhorses................................................... 2
•
Assistant for Lifting...................................... 1
•
Cleaner/Degreaser (Page 13)..................... 1
Pliers........................................................... 1
•
•
Straightedge 12" Minimum.......................... 1
Unpacking
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage. If items are damaged,
please call us immediately at (570) 546-9663.
IMPORTANT: Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original packaging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
SUFFOCATION HAZARD!
Keep children and pets away
from plastic bags or packing
materials shipped with this
machine. Discard immediately.
Model G0622 (Mfd. Since 09/17)
-11-
Inventory
C
B
D
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Inventory (Figure 3)
Qty
A. Bandsaw (not shown).................................. 1
B. Stand Legs.................................................. 2
C. Wheel Mounting Bracket............................. 1
D. Axle............................................................. 1
E. Table Support.............................................. 1
F. Table............................................................ 1
G. Long Braces................................................ 2
H. Short Braces............................................... 2
I. Wheels........................................................ 2
J. Pulley Cover................................................ 1
K. V-Belt........................................................... 1
L. Pulleys with Keys......................................... 2
M. Work Stop.................................................... 1
N. Work Stop Rod............................................ 1
O. Transport Handle......................................... 1
E
F
G
J
H
K
L
M
N
I
O
Figure 3. Model G0622 inventory.
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.
Hardware Bag (not shown)
•
Hex Wrench 4mm (Work Stop)................... 1
•
Hex Bolts M8-1.25 x 25 (Saw to Stand)...... 8
•
Hex Nuts M8-1.25 (Saw to Stand)............... 8
•
Flat Washers 8mm (Saw to Stand)............. 8
Hex Bolts M6-1 x 12 (Stand)....................... 8
•
•
Lock Washers 6mm (Saw to Stand)............ 8
•
Carriage Bolts M6-1 x 16 (Stand)................ 8
Flat Washers 6mm (Stand)......................... 8
•
•
Lock Washers 6mm (Stand)........................ 8
•
Hex Nuts M6-1 (Stand)................................ 8
Hex Bolts M6-1 x 12 (Stand)....................... 2
•
•
Flat Washers 6mm (Bracket/Legs).............. 4
•
Lock Washers 6mm (Bracket/Legs)............ 2
•
Hex Nuts M6-1 (Bracket/Legs).................... 2
•
Cotter Pins M4 x 30 (Axle & Handle).......... 4
-12-
Model G0622 (Mfd. Since 09/17)
Cleanup
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preventative, but the following steps work well in a wide
variety of situations. Always follow the manufacturer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
•
Disposable rags
•
Cleaner/degreaser (WD•40 works well)
•
Safety glasses & disposable gloves
•
Plastic paint scraper (optional)
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avo i d
u sing t h e s e p r o d u c t s
to c l e a n m a c hin e r y.
Many cleaning solvents
are toxic if inhaled. Only
work in a well-ventilated
area.
NOTICE
Avoid chlorine-based solvents, such as
acetone or brake parts cleaner, that may
damage painted surfaces.
T23692—Orange Power Degreaser
A great product for removing the waxy shipping
grease from your machine during clean up.
Basic steps for removing rust preventative:
1.
Put on safety glasses.
2.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
3.
Wipe off the surfaces. If your cleaner/degreaser is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
4.
Figure 4. T23692 Orange Power Degreaser.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
Model G0622 (Mfd. Since 09/17)
-13-
Site Considerations
Weight Load
Physical Environment
Refer to the Machine Data Sheet for the weight
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.
The physical environment where the machine is
operated is important for safe operation and longevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the maintenance and service described in this manual.
See below for required space allocation.
Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.
Electrical Installation
Place this machine near an existing power source.
Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or
other hazards. Make sure to leave enough space
around machine to disconnect power supply or
apply a lockout/tagout device, if required.
Lighting
Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.
38"
110V
16"
Figure 5. Minimum working clearances.
-14-
Model G0622 (Mfd. Since 09/17)
Assembly
4.
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to Needed for Setup and gather
all listed items. To ensure the assembly process
goes smoothly, first clean any parts that are covered or coated in heavy-duty rust preventative (if
applicable).
Attach short brace to legs with (4) M6-1 x
16 carriage bolts, (4) 6mm flat washers,
(4) 6mm lock washers, and (4) M6-1 hex
nuts (see Figure 7).
Short
Braces
To assemble the bandsaw:
1.
Install head-locking pin (refer to Page 22).
2.
With help of an assistant, lift bandsaw onto
a pair of closely spaced sawhorses or other
suitable support (see Figure 6).
3.
x4
Figure 7. Short braces attached to legs.
5.
Attach legs to bandsaw with (8) M8-1.25 x
25 hex bolts, (8) 8mm flat washers, (8) 8mm
lock washers, and (8) M8-1.25 hex nuts
(see Figure 6).
Remove bandsaw from sawhorses and
attach long braces to legs with (4) M6-1 x
16 carriage bolts, (4) 6mm flat washers, (4)
6mm lock washers, and (4) M6-1 hex nuts
(see Figure 8).
Note: At this time, tighten with a 14mm
wrench or socket just enough to secure the
parts. Final tightening will take place when
the stand is fully assembled.
x4
x8
Long Brace
Figure 8. Long braces attached to legs.
6.
Figure 6. Attaching legs to bandsaw.
Attach wheel-mounting bracket to bottom of
two legs, as shown in Figure 9.
x2
WheelMounting
Bracket
Figure 9. Wheel-mounting bracket attached to
legs.
Model G0622 (Mfd. Since 09/17)
-15-
7.
Slide axle through holes in wheel-mounting
bracket (see Figure 10).
8.
Slide wheels onto axle on outside of mounting brackets, and secure them with cotter
pins (see Figure 10).
11. Place pulley cover over motor and gear
shafts, and secure it with pre-installed M6-1 x
12 Phillips head screws and 12mm flat washers, as shown in Figure 12.
Wheel
x2
Axle
Figure 10. Wheels attached to axle.
9.
On opposite side of stand, insert handle
into holes and secure with cotter pins
(see Figure 11).
Figure 12. Installing pulley cover.
12. Open pulley cover, then insert keys into the
slots on pulley shafts.
13. Slide the large-diameter motor pulley onto
the motor shaft (see Figure 13).
x2
Motor Pulley
with Key Slot
Handle
Figure 11. Cotter pins installed in handle.
10. Check to see if bandsaw is relatively level,
then final tighten all bolts and nuts.
-16-
Figure 13. Installing motor pulley.
14. Install worm gear pulley with small-diameter
wheel on shaft closest to gear box.
Model G0622 (Mfd. Since 09/17)
15. Use a straightedge to check alignment of the
pulley wheels, as shown in Figure 14, and
adjust them as needed.
Figure 14. Checking pulley alignment.
16. When the pulley wheels are aligned, tighten
the set screws on both pulleys.
17. Unthread motor lock bolt, then pivot motor up
and slide the V-belt into pulley grooves, as
shown in Figure 15.
19. Install work stop shaft into side of bandsaw
then lock it in place by tightening the set
screw, as shown in Figure 16.
Figure 16. Installing work stop shaft.
20. Slide work stop onto end of the shaft and lock
it into position with locking lever, as shown in
Figure 17.
Locking
Lever
Motor Lock
Bolt
Figure 17. Work stop locking lever.
Figure 15. V-belt installation.
18. Release motor, letting its weight tension
V-belt, then thread motor lock bolt against the
side of bandsaw.
Model G0622 (Mfd. Since 09/17)
-17-
Test Run
Projectiles thrown from
the machine could cause
serious eye injury. Wear
safety glasses during
assembly and operation.
Starting the machine:
1.
Read the entire instruction manual.
2.
Make sure all tools and foreign objects have
been removed from the machine.
3.
Connect the bandsaw to power.
4.
Put on safety glasses and secure loose clothing or long hair.
5.
Remove the head-locking pin and raise the
bandsaw by the handle.
6.
Start bandsaw while keeping your finger near
ON/OFF switch at all times during the test
run (Figure 18). The bandsaw should run
smoothly with little or no vibration.
Recommended
Adjustments
The adjustments listed below have been performed at the factory. However, because of the
many variables involved with shipping, we recommend that you at least verify the following
adjustments to ensure the adjustments remain
unchanged.
Step-by-step instructions on verifying these adjustments can be found in SECTION 7: SERVICE
ADJUSTMENTS.
Factory adjustments that should be verified:
1.
Blade Tracking (Page 34).
2.
Squaring the Blade (Page 35).
3.
Blade Guide Bearings (Page 36).
—If you suspect any problems, immediately
stop the bandsaw and correct before continuing.
—If you need any help with your bandsaw
call our Tech Support at (570) 546-9663.
Figure 18. ON/OFF switch.
-18-
Model G0622 (Mfd. Since 09/17)
SECTION 4: OPERATIONS
Operation Overview
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
To reduce risk of eye injury from flying
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.
Electrocution Hazard. The motor and switch
on this bandsaw are not protected against
liquids. Do not use water-based cutting fluids with this bandsaw.
If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable
for accidents caused by lack of training.
This overview gives you the basic process that
happens during an operation with this machine.
Familiarize yourself with this process to better
understand the remaining parts of the Operation
section.
To complete a typical operation, the operator
does the following:
1.
Prepares the workpiece for cutting.
2.
Raises the head.
3.
Securely clamps the workpiece in the vise
and adjusts the vise angle for the operation.
4.
Checks/adjusts the V-belt position on the pulleys to ensure the correct cutting speed for
the workpiece.
5.
Adjusts the spring tension for the correct feed
rate.
6.
Makes sure the workpiece and bandsaw are
stable and there are no obstructions for the
cut.
7.
Wears safety glasses.
8.
Starts the machine and waits for the blade to
reach full speed.
9.
Slowly lowers the head until the blade makes
contact with the workpiece, then releases
the head so that the spring-controlled feed
rate continues to lower the blade into the
workpiece until the cut is finished.
10. Stops the machine, raises the head, and
removes the workpieces.
Model G0622 (Mfd. Since 09/17)
-19-
Operation Tips
The following tips will help you safely and effectively operate your bandsaw and help you get the
maximum life out of your saw blades.
Horizontal Cutting
•
Use the work stop to quickly and accurately
cut multiple pieces of stock to the same
length (see Figure 19).
•
Clamp the material firmly in the vise jaws to
ensure a straight cut through the material.
•
Let the blade reach full speed before engaging the workpiece. Never start a cut with the
blade in contact with the workpiece (see
Figure 20).
•
Chips should be curled and silvery. If the
chips are thin and powder like, increase your
feed rate (refer to the Metal Chip Inspection
Chart on Page 27).
•
If the chips are burned, reduce the blade
speed.
•
Wait until the blade has completely stopped
before removing the workpiece from the vise,
and avoid touching the cut end—it could be
very hot!
Figure 19. Work stop.
Figure 20. Proper starting position.
Vertical Cutting
•
Workpieces that cannot be properly supported or stabilized without a vise should
not be cut in the vertical position. Examples
are chains, cables, round or oblong-shaped
workpieces, workpieces with internal or builtin moving or rotating parts, etc.
•
Make sure that the vertical table assembly is
securely fastened to the bandsaw frame so it
will adequately support the workpiece.
•
Always keep your fingers away from the
blade and always hold the workpiece securely in your hand (Figure 21).
•
-20-
Adjust the blade guides as close as possible
to the workpiece to minimize side-to-side
blade movement.
Figure 21. Using the vertical set-up.
NOTICE
Loosen blade tension at the end of each day
to prolong blade life.
Model G0622 (Mfd. Since 09/17)
Vertical Operation
5.
Place a level on the table, as shown in Figure
24, then use the adjustment bolt shown in
Figure 25 to make the table level.
The Model G0622 can easily be set up for vertical
cutting operations.
To assemble the bandsaw for vertical cutting:
1.
DISCONNECT BANDSAW FROM POWER!
2.
Remove the two flat head screws and the
blade guide cover shown in Figure 22.
Blade
Guide
Cover
Figure 22. Blade guide cover.
3.
Install the table and replace the two screws
removed in Step 2.
4.
Install the table bracket with the pre-installed
hex bolt, the M6-1 x 12 flat head screw, and
the M6-1 hex nut, as shown in Figure 23.
Figure 24. Adjusting table level.
Adjustment
Bolt
Figure 25. Adjustment bolt.
Bolt Already
in Casting
Figure 23. Table and bracket installed.
Model G0622 (Mfd. Since 09/17)
-21-
6.
Head-Locking Pin
Install the safety bracket and lock it in place
with the pin shown in Figure 26 to keep the
saw from falling.
Note: To ensure the safety bracket fits
securely in the notch on the body frame, the
safety bracket may need to be slightly "modified" with a hammer or other appropriate
implement to fit securely.
Notch
The head-locking pin secures the head in the
down, horizontal position. You MUST secure
the head with the locking pin before moving
the machine to prevent the head unexpectedly springing up, causing the machine to
tip or fall. Otherwise, serious personal injury
or property damage could occur.
Safety Bracket
Pin
The head-locking pin safely secures the head in
the down position. To ensure the head does not
unexpectedly spring up and tip the bandsaw over,
this locking pin must be properly inserted when
the bandsaw is not in use or before moving it.
To use the head-locking pin:
Figure 26. Safety bracket.
1.
DISCONNECT BANDSAW FROM POWER!
2.
Fully lower the head down, then insert the
locking pin through the holes in the head
pivot arm and base, as shown in Figure 27.
Head-Locking Pin
Figure 27. Head-locking pin correctly inserted.
3.
-22-
Before connecting the machine to power,
remove the locking pin.
Model G0622 (Mfd. Since 09/17)
Vise
3.
Use the scale as a guide to set your angle or
use a machinist square to set the angle of the
vise, as shown in Figure 29.
Always turn the saw OFF and allow the blade
to come to a complete stop before using the
vise! Failure to follow this caution may lead
to injury.
The vise can hold material up to six inches wide
and be set to cut angles from 0° to 60°.
Scale
Tools Needed
Qty
Wrench or Socket 12mm.................................... 1
Machinist Square................................................ 1
To use the vise:
Figure 29. Squaring vise to blade.
1.
DISCONNECT BANDSAW FROM POWER!
4.
Tighten the hex bolts.
2.
Loosen the two hex bolts shown in Figure 28.
5.
Loosen the hex bolt on the opposite jaw so
the jaw can float, then match the angle of the
workpiece and re-tighten the hex bolt.
6.
Tighten the vise against the workpiece.
Hex Bolts
Note: Figure 30 shows the correct methods
of holding different workpiece shapes.
Figure 28. Setting vise angle.
Figure 30. Workholding options by material
shape.
Model G0622 (Mfd. Since 09/17)
-23-
Blade Guides
Feed Rate
The blade guides should be as close to the
workpiece as possible. This will help ensure
straight cuts by keeping the blade from twisting
and drifting off the cut line.
The feed rate is controlled by the spring and
handle shown in Figure 32.
To adjust the blade guides:
1.
DISCONNECT BANDSAW FROM POWER!
2.
Loosen the knob shown in Figure 31 and slide
the blade guide as close to the workpiece as
possible, then re-tighten the knob.
Blade Guides
To adjust the feed rate:
­ lower: Twist the handle clockwise to add tenS
sion to the spring.
Faster: Twist the handle counterclockwise to
remove tension from the spring.
Spring
Handle
Figure 32. Feed rate adjustment.
Knob
Figure 31. Blade guides.
-24-
Model G0622 (Mfd. Since 09/17)
blade selection
Blade Speed
Blade Terminology
The bandsaw is capable of operating at 78,
108, or 180 FPM (Feet Per Minute). The speed
can easily be adjusted by changing the V-belt
placement. Figure 33 shows an illustration for
pulley positions for each speed.
Selecting the right blade for the cut requires a
knowledge of various blade characteristics. Use
the illustration in Figure 35 and the following
descriptions to better understand blade characteristics.
Gear Pulley
A
Motor Pulley
78 FPM
108 FPM
B
180 FPM
C
Figure 33. Pulley & V-belt configuration.
To change the blade speeds:
1.
DISCONNECT BANDSAW FROM POWER!
2.
Loosen the motor tension bolt to allow the
motor to pivot (Figure 34).
Motor Tension Bolt
D
E
F
H
G
I
Figure 35. Bandsaw blade terminology.
A. Kerf: The amount of material removed by the
blade during cutting.
B. Tooth Set: The amount each tooth is bent
left or right from the blade.
C. Gauge: The thickness of the blade.
D. Blade Width: The widest point of the blade
measured from the tip of the tooth to the back
edge of the blade.
E.
Tooth Rake: The angle of the tooth from a
line perpendicular to the length of the blade.
F.
Gullet Depth: The distance from the tooth tip
to the bottom of the curved area (gullet).
Figure 34. Motor tension bolt.
3.
4.
5.
Raise the motor to relieve the belt tension
and position the belt in the desired pulley
alignment.
Release the motor and let its weight tension
the belt.
Tighten the motor tension bolt back against
the frame of the bandsaw.
G. Tooth Pitch: The distance between tooth
tips.
H. Blade Back: The distance between the bottom of the gullet and the back edge of the
blade.
I.
Model G0622 (Mfd. Since 09/17)
TPI: The number of teeth per inch measured
from gullet to gullet.
-25-
Blade Selection
Blade Size
The Model G0622 accepts only 1⁄ 2" x 0.025 x
641⁄ 2" blades.
Tooth Style
When selecting blades, another option to consider is the shape, gullet size, teeth set and teeth
angle—otherwise known as “Tooth Style." Many
blade manufacturers offer variations of the four
basic styles shown in Figure 37.
Tooth Pitch
Raker (or Standard)
Usually measured as TPI (Teeth Per Inch), tooth
pitch determines the size/number of the teeth.
More teeth per inch (fine pitch) will cut slower,
but smoother; while fewer teeth per inch (coarse
pitch) will cut rougher, but faster.
Skip (or Skip Tooth)
As a general rule, choose blades that will have at
least three teeth in the material at all times. Use
fine pitched blades on harder metals and coarse
pitched blades on softer metals. When selecting blades, refer to Figure 36 for recommended
blade tooth (TPI) and speed (FPM) based on the
workpiece material.
Hook (or Claw)
Variable Pitch (VP)
Figure 37. Bandsaw blade tooth types.
Material
TPI
FPM
Tool Steel
Stainless Steel
Bearing Bronze
24
78
Mild Steel
Hard Brass
Bronze
18
108
Soft Brass
Aluminum
Other Light Metals
14
180
Tooth Set
Three of the most common tooth sets are alternate, wavy, and raker (see Figure 38).
Figure 36. Model G0622 Blade chart.
Alternate
Wavy
Raker
Figure 38. Bandsaw tooth sets.
-26-
Model G0622 (Mfd. Since 09/17)
chip inspection chart
thin & curled
Metal
thin & curledChip Inspection Chart
thin & curled
The best method of evaluating
the performance of your metal cutting operation is to inspect the chips that
thin & curled
short,
hard
& thick
are formed from cutting. Refer to the
chart below for chip inspection guidelines.
Chip
Appearance
thin & hard
curled
short,
& thick
thin
& hard
curled& thick Chip
Chip
short,
Description
thin & curled
Blade
Speed
Feed
Pressure
Good
Good
Decrease
Decrease
Lubricate with
a small amount
of oil
Decrease
Decrease
Lubricate with
a small amount
of oil
Good
Decrease
Slightly
Check Blade
Pitch
Increase
Decrease
Check Blade
Pitch
Silver
Good
Increase
Silver
Decrease
Increase
Good
Decrease
Color
short, hard & thick
thick, hard & strong
thin & curled
Thinthick,
& Curled
short,
hard && strong
thick Silver
hard
short,
hard &
& strong
thick
thick, hard
Hard,
Thick
short,
hard&&& strong
thick
thick, hard
Brown or Blue
Shorthard & strong
thick,
short, hard & thick
thick, hard & strong
thick, hard & strong
Hard,
Strong && strong
thick,
thick, hard
hard & strong
Brown or Blue
Thick
thick,
thick, hard
hard &
& strong
strong
hard & thin
thick,
hard
&
Hard, Strong & strong
Silver or Light
thick,&hard
& strong
hard
Thick thin
Brown
thick,
hard &hard
thin & strong
thick,
hard&&hard
thin & strong Silver
Hard
thin &Thin
straight
thick, hard & strong
hard & thin
thin & straight
hard
thin
thin &&straight
Straight & Thin
hard
thin
powdery
thin
&&straight
hard & thin
powdery
thin & straight
Powdery
powdery
thin
& straight
powdery
thin &
straight
Curled
Tight
&
thin & curled tightly Silver
Thin
thin
& straight
powdery
Additional
Actions
Check Blade
Pitch
thin & curled tightly
powdery
Figure 39. Chip inspection chart.
thin & curled tightly
powdery
thin & curled tightly
powdery
thin & curled tightly
thin & curled tightly
thin & curled tightly
thin & curled tightly
Model G0622 (Mfd. Since 09/17)
-27-
ACCESSORIES
SECTION 5: ACCESSORIES
Basic Eye Protection
Installing unapproved accessories may
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
G5107—641 ⁄ 2 x 1 ⁄ 2 x .025 10 TPI Raker
G5108—641 ⁄ 2 x 1 ⁄ 2 x .025 14 TPI Raker
G5109—641 ⁄ 2 x 1 ⁄ 2 x .025 18 TPI Raker
G5110—641 ⁄ 2 x 1 ⁄ 2 x .025 24 TPI Raker
G5111—641 ⁄ 2 x 1 ⁄ 2 x .025 6-10 Variable Pitch
G5112—641 ⁄ 2 x 1 ⁄ 2 x .025 8-12 Variable Pitch
G5113—641 ⁄ 2 x 1 ⁄ 2 x .025 10-14 Variable Pitch
G5114—641 ⁄ 2 x 1 ⁄ 2 x .025 14-18 Variable Pitch
G5115—641 ⁄ 2 x 1 ⁄ 2 x .025 20-24 Variable Pitch
T20501—Face Shield Crown Protector 4"
T20502—Face Shield Crown Protector 7"
T20503—Face Shield Window
T20451—“Kirova” Clear Safety Glasses
T20452—“Kirova” Anti-Reflective S. Glasses
H7194—Bifocal Safety Glasses 1.5
H7195—Bifocal Safety Glasses 2.0
H7196—Bifocal Safety Glasses 2.5
T20502
T20452
T20503
H7194
T20451
Figure 41. Assortment of basic eye protection.
T10499—1.2 KVA Blade Welder
Make your own bandsaw blades from inexpensive
band stock, or repair what you already have with
this blade welder. Features blade shear, grinder,
and annealing. Operates on 115V, 15A power supply. For 1⁄ 8 –1⁄ 2" blade widths.
Figure 40. Blades
Figure 42. T10499 Blade Welder.
order online at www.grizzly.com or call 1-800-523-4777
-28-
Model G0622 (Mfd. Since 09/17)
H5408—Blade Tensioning Gauge
The Blade Tensioning Gauge ensures long blade
life, reduced blade breakage, and straight cutting
by indicating correct tension. A precision dial indicator provides you with a direct readout in PSI.
G5618—Deburring Tool with Two Blades
The quickest tool for smoothing freshly sheared
metal edges. Comes with two blades, one for
steel and aluminum, and one for brass and cast
iron.
Figure 45. G5618 Deburring Tool.
Figure 43. H5408 Blade Tensioning Gauge.
SB1365—South Bend Way Oil-ISO 68
T23964—Moly-D Multi-purpose NLGI#2 Grease
D2273—Single Roller Stand
D2274—5-Roller Stand
These roller stands are invaluable when working
solo in any shop for outfeeding and support tasks.
The 15 7⁄ 8" wide rollers, adjustable 26"–44 5 ⁄ 8"
height, and all-steel construction make them convenient and rugged.
Figure 44. Recommended products for machine
lubrication.
Figure 46. D2273 and D2274 single and 5 roller
stands.
order online at www.grizzly.com or call 1-800-523-4777
Model G0622 (Mfd. Since 09/17)
-29-
SECTION 6: MAINTENANCE
Lubrication
To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,
maintenance, or service.
Before applying lubricant to any area, wipe the
area clean to avoid contamination. Lubricate the
vice screw shown in Figure 47 with multi-purpose
gear grease.
Schedule
For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.
Daily Check:
•
Loose mounting bolts.
•
Damaged saw blade.
•
Worn or damaged wires.
•
Any other unsafe condition.
•
Clean after each use.
Monthly Check:
•
V-belt tension, damage, or wear.
•
Lubricate vise screw.
Annual Check:
•
Lubricate gear box.
Vise
Screw
Figure 47. Location to lubricate vise screw.
Remove the cover on the gear box shown in
Figure 48 and coat the gears with multi-purpose
gear grease.
Cleaning
Gear Box
Use a brush and a shop vacuum to remove chips
and other debris from the machine. Keep the
non-painted surfaces rust-free with regular applications of products like G96® Gun Treatment,
SLIPIT®, or Boeshield® T-9.
Periodically, remove the blade and thoroughly
clean all metal chips or built-up grease from the
wheel surfaces and blade housing.
-30-
Figure 48. Gear box location.
Model G0622 (Mfd. Since 09/17)
SECTION 7: SERVICE
Review the troubleshooting and procedures in this section if a problem develops with your machine. If
you need replacement parts or additional help with a procedure, call our Technical Support. Note: Please
gather the serial number and manufacture date of your machine before calling.
Troubleshooting
Motor & Electrical
Symptom
Possible Cause
Machine does not start 1.
or a breaker trips.
2.
3.
4.
Plug/receptacle is at fault or wired incorrectly.
Start capacitor is at fault.
Motor connection wired incorrectly.
Power supply is at fault/switched OFF.
5. ON/OFF switch is at fault.
6. Wiring is open/has high resistance.
7. Motor is at fault.
Possible Solution
1.
2.
3.
4.
Test for good contact or correct the wiring.
Test/replace if faulty.
Correct motor wiring connections.
Make sure all hot lines/grounds are operational
and have correct voltage on all legs.
5. Replace faulty ON button or ON/OFF switch.
6. Troubleshoot wires for internal/external breaks;
check for disconnected/corroded connections;
repair/replace wiring.
7. Test/repair/replace.
Machine stalls or is 1. Wrong blade for the workpiece material 1. Use blade with correct properties for your type
underpowered.
of cutting.
(metal).
2. Decrease feed rate.
2. Feed rate too fast for task.
3. Replace bad V-belt and re-tension.
3. V-belt slipping.
4. Adjust blade tracking and tension.
4. Blade is slipping on wheels.
5. Replace loose pulley/shaft.
5. Pulley/sprocket slipping on shaft.
6. Test by rotating shaft; rotational grinding/loose
6. Motor bearings are at fault.
shaft requires bearing replacement.
7. Test/repair/replace.
7. Motor is at fault.
Machine has vibration 1. V-belt is slapping belt cover.
or noisy operation.
2. V-belt worn or loose.
3. Pulley is loose.
Model G0622 (Mfd. Since 09/17)
1. Inspect belt cover for proper installation.
2. Inspect/replace belt with a new one.
3. Realign/replace shaft, pulley, setscrew, and
key as required.
-31-
SYMPTOM
POSSIBLE CAUSE
Machine is loud when
cutting or bogs down in
the cut.
1. Excessive feed rate.
Blades break often.
1. The workpiece is loose in the vise.
2. The blade TPI is too great, or the
material is too coarse.
2.
3.
4.
5.
6.
7.
Blade dulls prematurely.
1. The cutting speed is too fast.
3. The blade feed pressure is too
light.
4. The workpiece has hard spots,
welds, or scale is on the material.
5. The blade is twisted.
6. The blade is slipping on the
wheels.
Teeth are ripping from the
blade.
The cuts are crooked.
1. The blade guides are worn or misadjusted.
2. The blade guide slide bracket is
loose.
3. The wheels are out of alignment.
1. Refer to Blade Speed on Page 25 and adjust as
required.
2. Refer to Blade Selection on Page 26 and adjust as
required.
3. Refer to Feed Rate on Page 24, and adjust as
required.
4. Increase the feed pressure, and reduce the cutting
speed.
5. Replace the blade.
6. Refer to Blade Tension on Page 35, and adjust as
required.
1. Refer to Blade Guides on Page 24 and replace or
adjust.
2. Tighten the blade guide bracket.
3. Refer to Blade Tracking on Page 34, and adjust as
required.
1. The feed pressure is too heavy
and the blade speed is too slow; or
the blade TPI is too coarse for the
workpiece.
2. The workpiece is vibrating in the
vise.
3. The blade gullets are loading up
with chips.
1. Refer to Blade Selection on Page 26 and decrease
the feed pressure. Refer to Feed Rate on Page 24,
and adjust as required.
1. The feed pressure is too high.
1. Refer to Feed Rate on Page 24, and adjust as
required.
2. Refer to Blade Guides on Page 24 and replace or
adjust.
2. The guide bearings are out of
adjustment, or too far away from
the workpiece.
3. The blade tension is low.
4. The blade is dull.
5. The blade speed is wrong.
-32-
1. Refer to Feed Rate on Page 24, or Blade Speed
on Page 25 and adjust as required.
2. Refer to Blade Selection on Page 26 and adjust as
required.
1. Clamp the workpiece tighter, or use a jig to hold the
workpiece.
2. Refer to Feed Rate on Page 24, or Blade Speed
The feed or cut speed is wrong.
on Page 25 and adjust as required.
3. Refer to Blade Selection on Page 26 and adjust as
The blade TPI is too great, or the
required.
material is too coarse.
The blade is rubbing on the wheel 4. Refer to Blade Tracking on Page 34, and adjust as
required.
flange.
The bandsaw is being started with 5. Start bandsaw and then slowly lower the headstock
by setting the feed rate.
the blade resting on the workpiece.
6. Refer to Blade Tracking on Page 34, or Blade
The guide bearings are
Guides on Page 24, and adjust as required.
misaligned, or the blade is rubbing
on the wheel flange.
7. Use a higher quality blade.
The blade is too thick, or the
blades are of low quality.
2. The blade TPI is too coarse.
Blade wears on one side.
CORRECTIVE ACTION
2. Re-clamp the workpiece in the vise, and use a jig if
required.
3. Use a coarser-tooth blade.
3. Refer to Blade Tension on Page 35, and adjust as
required.
4. Refer to Blade Change on Page 33 and replace
the blade.
5. Refer to Blade Speed on Page 25 and adjust as
required.
Model G0622 (Mfd. Since 09/17)
Blade Change
Bl
ad
Blades should be changed when they become
dull, damaged, or when your operation requires a
different blade.
eT
ra
ve
l
To change the blade on the bandsaw:
1.
DISCONNECT BANDSAW FROM POWER!
2.
Raise the head of the bandsaw to the vertical
position, use the head-locking pin to hold it in
place, then remove the wheel access cover.
3.
Loosen the tension knob and slip the blade
off of the wheels.
4.
Install the new blade through both blade
guide bearings, as shown in Figure 49, and
around the bottom wheel.
Figure 50. Blade cutting direction.
6.
When the blade is around both wheels,
adjust the position so the back of the blade
is against the shoulder of the wheels (see
Figure 51).
Blade
Guide
Bearings
Figure 51. Tension knob and blade.
Figure 49. Installing blade.
5.
Hold the blade around the bottom wheel with
one hand and slip it around the top wheel with
the other hand, keeping the blade between
the blade guide bearings.
Note: It is sometimes possible to flip the
blade inside out, in which case the blade will
be installed in the wrong direction. Check to
make sure the blade teeth are facing toward
the workpiece, as shown in Figure 50, after
mounting to the bandsaw. Some blades will
have a directional arrow as a guide.
Model G0622 (Mfd. Since 09/17)
7.
Tighten the tension knob so the blade will not
slip on the wheels upon start up.
8.
Connect the bandsaw to the power source.
9.
Briefly turn the bandsaw ON then OFF to
position the blade and resume the previous
tracking.
—If the tracking needs to be adjusted, see
Blade Tracking in the next section.
—If the tracking is fine, proceed to Blade
Tension on Page 35.
-33-
Blade Tracking
5.
The blade tracking has been properly set at
the factory. The tracking will rarely need to be
adjusted if the bandsaw is used properly.
Use the blade tension knob to release the
blade tension (see Figure 53).
Blade
Tension
Knob
Qty
Tools Needed
Wrench or Socket 14mm.................................... 1
Tracking Hex Bolt
To adjust the blade tracking on the bandsaw:
1.
DISCONNECT BANDSAW FROM POWER!
2.
Position the bandsaw in the vertical position.
3.
Open the wheel access cover.
4.
Loosen, but do not remove the lower hex bolt
in the blade wheel tilting mechanism shown
in Figure 52.
Figure 53. Adjusting tracking hex bolt.
6.
Adjust the tracking hex bolt, as shown in
Figure 53, then tighten the lower hex bolt
loosened in Step 4.
—Tightening the tracking hex bolt will move
the blade closer to the shoulder of the
wheel.
—Loosening the tracking hex bolt will move
the blade away from the shoulder.
Lower
Hex Bolt
7.
Tension the blade.
8.
Reconnect the power and turn ON the
bandsaw.
—If the blade tracks along the shoulder of
the wheel (without rubbing), the blade is
tracking properly and this adjustment is
completed.
Figure 52. Blade tracking adjustments.
—If the blade walks away from the shoulder
of the wheel or hits the shoulder, turn the
bandsaw OFF, disconnect it from power,
then repeat Steps 4-8.
9.
-34-
Turn the bandsaw OFF, disconnect it from
power, then replace the blade guard and
wheel access cover.
Model G0622 (Mfd. Since 09/17)
Blade Tension
Squaring the Blade
Proper blade tension is essential to long blade life,
straight cuts, and efficient cutting times.
It is always a good idea during the life of your saw
to check and adjust this setting. This adjustment
will improve your cutting results and extend the
life of your blade.
Two major signs that you do not have the correct
blade tension are: 1) The blade stalls in the cut
and is slipping on the wheels, and 2) the blade
frequently breaks from being too loose.
To tension the blade on the bandsaw:
1.
Make sure the blade is tracking properly.
2.
DISCONNECT BANDSAW FROM POWER!
3.
Loosen and slide the blade guides as far
apart as they will go then tighten them down
again.
4.
Turn the tension knob in Figure 53 clockwise
to tighten the blade as tight as you can.
5.
Using moderate finger pressure, push against
the side of the blade. The blade should not
move more than 0.004".
To square the blade to the bed of the table:
1.
DISCONNECT BANDSAW FROM POWER!
2.
Separate the blade guides as far as possible,
the lower the head of the bandsaw all the way
until it contacts the horizontal stop.
3.
Place a square on the table bed and against
the edge of the blade (Figure 54), and check
different points along the length of the table
between the blade guides.
Hex Bolt
Note: We recommend using a blade
tensioning gauge, like the one found in
ACCESSORIES on Page 29. If you use this
option please follow the instructions included
with your gauge.
Figure 54. Squaring the blade.
4.
Model G0622 (Mfd. Since 09/17)
Loosen the hex bolt shown in Figure 54, and
rotate the seat until the blade is vertical to the
bed, then re-tighten the hex bolt.
-35-
Blade Guide
Bearings
The blade guide bearings must be properly
adjusted to make square cuts. One bearing on
each assembly has an eccentric bushing that
allows it to be adjusted so the blade is square to
the vise. The bearings are secured in place by a
hex nut and lock washer, as shown in Figure 55.
To adjust the blade guide bearings:
1.
DISCONNECT BANDSAW FROM POWER!
2.
Position the vise to 90°, then lock it in place.
3.
Put a machinist's square against the face of
the vise and move it over to the blade.
—The square should evenly touch both the
face of the vise and the blade. If it does,
skip ahead to Step 6.
Before adjusting the blade guide bearings, make
sure that you have squared the blade to the table
as discussed in the previous section.
Backing Bearing
—If the square does not evenly touch the
blade, but it does evenly touch the vise,
continue with the next step.
4.
Loosen the hex nuts that secure the eccentric
bushings attached to the guide bearings.
5.
Adjust the bearings as necessary to force the
blade to be 90° to the vise, then re-tighten the
hex nuts.
6.
If any of the bearings are not touching the
blade evenly, loosen the hex nuts and adjust
them so the contact surface of the bearings
touch the blade evenly.
Hex Nut
Eccentric
Bushing
Note: Since the bearings twist the blade into
position, it is acceptable if there is 0.001"0.002" gap between the blade and the front
or back of the bearing. Just make sure not to
squeeze the blade too tightly with the bearings. After the guide bearings are set, you
should be able to rotate the guide bearings
(although they will be stiff) with your fingers.
Figure 55. Blade guide adjustments.
7.
-36-
Adjust the backing bearing in the same manner, but leave a gap between 0.002-0.003"
from the back of the blade.
Model G0622 (Mfd. Since 09/17)
machine
SECTION 8: WIRING
These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one
stated in this manual, and study this section carefully.
If there are differences between your machine and what is shown in this section, call Technical Support at
(570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial number and manufacture date of your
machine before calling. This information can be found on the main machine label.
Wiring Safety Instructions
SHOCK HAZARD. Working on wiring that is connected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical components!
MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpredictable results, including serious injury or fire.
This includes the installation of unapproved aftermarket parts.
WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires disconnected or connected during any wiring task to
ensure tight connections.
CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.
WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious personal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.
MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.
CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.
EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information
included in this section, contact our Technical
Support at (570) 546-9663.
The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.
Model G0622 (Mfd. Since 09/17)
-37-
Electrical Components
Plug Wire
Figure 56. G0622 ON/OFF Switch.
Figure 57. G0622 Capacitor.
Wiring Diagram
Capacitor
35MFD 250VAC
110V
Motor
Ground
Switch
Ground
Neutral
Hot
110V NEMA 5-15
(As Recommended)
-38-
READ ELECTRICAL SAFETY
ON PAGE 37!
Model G0622 (Mfd. Since 09/17)
SECTION 9: Parts
278
175
217
120 212
201
285
283 280
172 193
196 192
199
187 191
204
194
190
152
173
206
203
209
207
208
180
279
185
179
158
157
226A
226A-1
226A
177V2
181
154
159V2
148 150
147
145 146
139
115
117
132
152
151
149
185
134
143
222
111V2
156-2
105V2
137V2
112
167
122
140
123
156-1
156
136
153
257
256
126
133
135-4
103
120 130
128
127
115-1
135-2
135-5
135-3
286
159A-1
109
107
135
155
168
218
159V2-1
111V2
152
110
171
116
135-1
170
214
161
163
162
161
160
164
169
168
232
210
120
186
103
175
167
166
165
189
187
188
172
158A-1
213
158A
198
184 175
183
176
167 187
205
282
284
124
281
112
138
151
121
101
276V2
275V2
144
118
152
237
274V2
119
108
113V2
104V2
103
106V2
102
114V2
Model G0622 (Mfd. Since 09/17)
142
141
233V2
234V2
235V2
236V2
-39-
Parts List
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
101
102
103
104V2
105V2
106V2
107
108
109
110
111V2
112
113V2
114V2
115
115-1
116
117
118
119
120
121
122
123
124
126
127
128
130
132
133
134
135
135-1
135-2
135-3
135-4
135-5
136
137V2
138
139
140
141
142
143
144
145
146
147
148
149
150
P0622101
P0622102
P0622103
P0622104V2
P0622105V2
P0622106V2
P0622107
P0622108
P0622109
P0622110
P0622111V2
P0622112
P0622113V2
P0622114V2
P0622115
P0622115-1
P0622116
P0622117
P0622118
P0622119
P0622120
P0622121
P0622122
P0622123
P0622124
P0622126
P0622127
P0622128
P0622130
P0622132
P0622133
P0622134
P0622135
P0622135-1
P0622135-2
P0622135-3
P0622135-4
P0622135-5
P0622136
P0622137V2
P0622138
P0622139
P0622140
P0622141
P0622142
P0622143
P0622144
P0622145
P0622146
P0622147
P0622148
P0622149
P0622150
HEX BOLT M6-1 X 12
HEX NUT M6-1
FLAT WASHER 6MM
STAND LEG (RIGHT) V2.09.17
WHEEL ASSY V2.09.17
COTTER PIN 4 X 30 V2.09.17
PHLP HD SCR M6-1 X 12
LOCK LEVER
FLAT WASHER 6MM
FLAT HD SCR M4-.7 X 10
HEX BOLT M8-1.25 X 25
HEX NUT M8-1.25
STAND LEG (LEFT) V2.09.17
TRANSPORT HANDLE V2.09.17
ADJUSTING ROD
RUBBER HANDLE GRIP
MOTOR CORD
PIVOTING ROD
SUPPORT PLATE
WORK STOP
SET SCREW M8-1.25 X 10
STOCK STOP ROD
WIRE RELIEF RETAINER
SWITCH
HEX NUT M5-.8
SWITCH PANEL
ADJUSTING ROD SUPPORT
HAND WHEEL
EXT RETAINING RING 13MM
LEADSCREW
VISE NUT
FRONT VISE JAW
MOTOR 3/4HP 110V 1-PH
MOTOR COVER
FAN
CAPACITOR COVER
R CAPACITOR 35M 250V 1-5/8 X 2-13/16
JUNCTION BOX
HEX BOLT M10-1.5 X 30
BED V2.09.17
LOCK WASHER 8MM
SCALE
ELECTRIC CORD COVER
LONG BRACE
SHORT BRACE
GASKET
POWER CORD
NUT PLATE
SPRING ADJUSTING SCREW
EXTENSION SPRING
PHLP HD SCR M4-.7 X 10
REAR VISE JAW
SET SCREW M8-1.25 X 12
151
152
153
154
155
156
156-1
156-2
157
158
158A
158A-1
159V2
159V2-1
159A-1
160
161
162
163
164
165
166
167
168
169
170
171
172
173
175
176
177V2
179
180
181
183
184
185
186
187
188
189
190
191
192
193
194
196
198
199
201
203
P0622151
P0622152
P0622153
P0622154
P0622155
P0622156
P0622156-1
P0622156-2
P0622157
P0622158
P0622158A
P0622158A-1
P0622159V2
P0622159V2-1
P0622159A-1
P0622160
P0622161
P0622162
P0622163
P0622164
P0622165
P0622166
P0622167
P0622168
P0622169
P0622170
P0622171
P0622172
P0622173
P0622175
P0622176
P0622177V2
P0622179
P0622180
P0622181
P0622183
P0622184
P0622185
P0622186
P0622187
P0622188
P0622189
P0622190
P0622191
P0622192
P0622193
P0622194
P0622196
P0622198
P0622199
P0622201
P0622203
FLAT WASHER 8MM
HEX BOLT M8-1.25 X 25
HEX BOLT M12-1.75 X 75
PIVOT
TABLE
TABLE BRACKET
FENDER WASHER 6MM
HEX NUT M6-1
ADJUSTABLE BRACKET (TOP)
PHLP HD SCR M6-1 X 10
PHLP HD SCR M5-.8 X 10
FLAT WASHER 5MM
BLADE BACK SAFETY COVER V2.02.08
SAFETY COVER PLATE V2.02.08
KNOB M6-1 X 8
EXT RETAINING RING 8MM
BALL BEARING 629ZZ
GUIDE PIVOT
BEARING SHAFT PIN 8 X 40MM
BLADE ADJUSTABLE SEAT
ADJUSTABLE BRACKET
GUIDE BEARING LOCK
LOCK WASHER 8MM
FLAT HD SCR M6-1 X 12
BLADE GUARD
HEX NUT M8-1.25
FRONT BLADE WHEEL
BLADE WHEEL BEARING COVER
KEY 5 X 5 X 30
PHLP HD SCR M6-1 X 12
SWITCH CUT OFF TIP
REAR BLADE WHEEL V2.02.08
BLADE TENSION KNOB
COMPRESSION SPRING
BODY FRAME
HEX BOLT M8-1.25 X 25
MOTOR MOUNT PLATE
FLAT WASHER 10MM
MOTOR PULLEY
BALL BEARING 6202ZZ
BEARING BUSHING
OIL SEAL
TRANSMISSION WHEEL SHAFT
TRANSMISSION GEAR
GEAR BOX GASKET
GEAR BOX COVER
WORM GEAR
BEARING BUSHING
HEX BOLT M8-1.25 X 50
BUSHING
WORM GEAR PULLEY
BLADE TENSION PLATE
-40-
Model G0622 (Mfd. Since 09/17)
Parts List (Cont.)
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
204
205
206
207
208
209
210
212
213
214
217
218
222
226A
226A-1
232
233V2
234V2
P0622204
P0622205
P0622206
P0622207
P0622208
P0622209
P0622210
P0622212
P0622213
P0622214
P0622217
P0622218
P0622222
P0622226A
P0622226A-1
P0622232
P0622233V2
P0622234V2
HEX BOLT M8-1.25 X 35
BLADE ADJUSTABLE SEAT - UPPER
SLIDING PLATE DRAW BLOCK
BLADE WHEEL SHAFT
SHAFT BLOCK
BLADE TENSION SLIDING GUIDES
MOTOR PULLEY COVER
V-BELT M22 3L220
BLADE 1/2 X .028 X 64 1/2
FLAT WASHER 8MM
FLAT WASHER 6MM
EXT RETAINING RING 15MM
HEX NUT M12-1.75
BALL BEARING 6202ZZ
INT RETAINING RING 35MM
BLADE SAFE GUARD
HEX NUT M8-1.25 V2.09.17
LOCK WASHER 8MM V2.09.17
235V2
236V2
237
256
257
274V2
275V2
276V2
277
278
279
280
281
282
283
284
285
286
P0622235V2
P0622236V2
P0622237
P0622256
P0622257
P0622274V2
P0622275V2
P0622276V2
P0622277
P0622278
P0622279
P0622280
P0622281
P0622282
P0622283
P0622284
P0622285
P0622286
FLAT WASHER 8MM V2.09.17
CARRIAGE BOLT M8-1.25 X 16 V2.09.17
LOCK WASHER 6MM
PHLP HD SCR M5-.8 X 25
LOCK WASHER 5MM
WHEEL STAND V2.09.17
COTTER PIN 4 X 30 V2.09.17
AXLE V2.09.17
CORNER BRACKET
MACHINE ID LABEL
READ MANUAL LABEL
SAFETY GLASSES LABEL
ELECTRICITY LABEL
UNPLUG MACHINE LABEL
RPM LABEL
BLADE TRAVEL LABEL
BLADE SAFETY LABEL
TIPPING HAZARD LABEL
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
Model G0622 (Mfd. Since 09/17)
-41-
-42-
Model G0622 (Mfd. Since 09/17)
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________ Email _________________________________________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.
1.
CUT ALONG DOTTED LINE
2.
How did you learn about us?
____ Advertisement
____ Card Deck
4.
5.
6.
____ Catalog
____ Other:
Which of the following magazines do you subscribe to?
____
____
____
____
____
____
____
____
____
____
3.
____ Friend
____ Website
Cabinetmaker & FDM
Family Handyman
Hand Loader
Handy
Home Shop Machinist
Journal of Light Cont.
Live Steam
Model Airplane News
Old House Journal
Popular Mechanics
____
____
____
____
____
____
____
____
____
____
Popular Science
Popular Woodworking
Precision Shooter
Projects in Metal
RC Modeler
Rifle
Shop Notes
Shotgun News
Today’s Homeowner
Wood
____
____
____
____
____
____
____
Wooden Boat
Woodshop News
Woodsmith
Woodwork
Woodworker West
Woodworker’s Journal
Other:
What is your annual household income?
____ $20,000-$29,000
____ $30,000-$39,000
____ $50,000-$59,000
____ $60,000-$69,000
____ $40,000-$49,000
____ $70,000+
What is your age group?
____ 20-29
____ 50-59
____ 40-49
____ 70+
____ 30-39
____ 60-69
How long have you been a woodworker/metalworker?
____ 0-2 Years
____ 2-8 Years
____ 8-20 Years
____ 20+ Years
How many of your machines or tools are Grizzly?
____ 0-2
____ 3-5
____ 6-9
____ 10+
7.
Do you think your machine represents a good value?
_____ Yes
_____No
8.
Would you recommend Grizzly Industrial to a friend?
_____ Yes
_____No
9.
Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times.
_____ Yes
_____No
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
FOLD ALONG DOTTED LINE
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
WARRANTY AND RETURNS
WARRANTY AND RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the
carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
