ZLINE Kitchen and Bath 393AR-48, 393AR-RD-48 Specification

ZLINE Kitchen and Bath 393AR-48, 393AR-RD-48 Specification

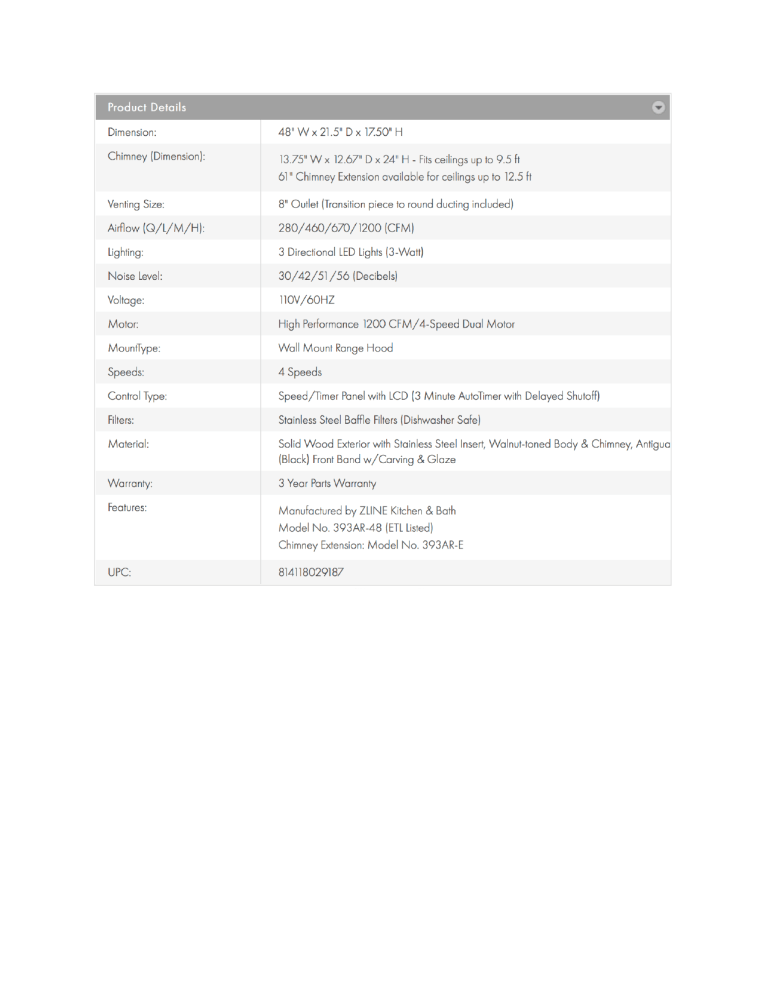

 Product Details
48" W x 21.5" D x 17,50" H
Dimension:
Chimney (Dimension):
Venting Size:
Airflow (Q/L/M/H}:
Lighting:
Noise Level:
Voltage:
Motor:
Mounflype:
Speeds:
Control Type:
Filters:
Material:
Warranty:
Features:
UPC:
13.75" W x 12.67" D x 24" H - Fits ceilings up to 9.5 ft
61" Chimney Extension available for ceilings up to 12.5 ft
8" Outlet (Transition piece to round ducting included)
280/460/670/1200 (CFM)
3 Directional LED Lights (3-Watt)
30/42/51 /56 (Decibels)
110V/60HZ
High Performance 1200 CFM/4-Speed Dual Motor
Wall Mount Range Hood
4 Speeds
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Stainless Steel Baffle Filters (Dishwasher Safe)
Solid Wood Exterior with Stainless Steel Insert, Walnut-toned Body & Chimney, Antigua
(Black) Front Band w/ Carving & Glaze
3 Year Parts Warranty
Manufactured by ZLINE Kitchen & Bath
Model No. 393AR-48 (ETL Listed)
Chimney Extension: Model No. 393AR-E
814118029187
