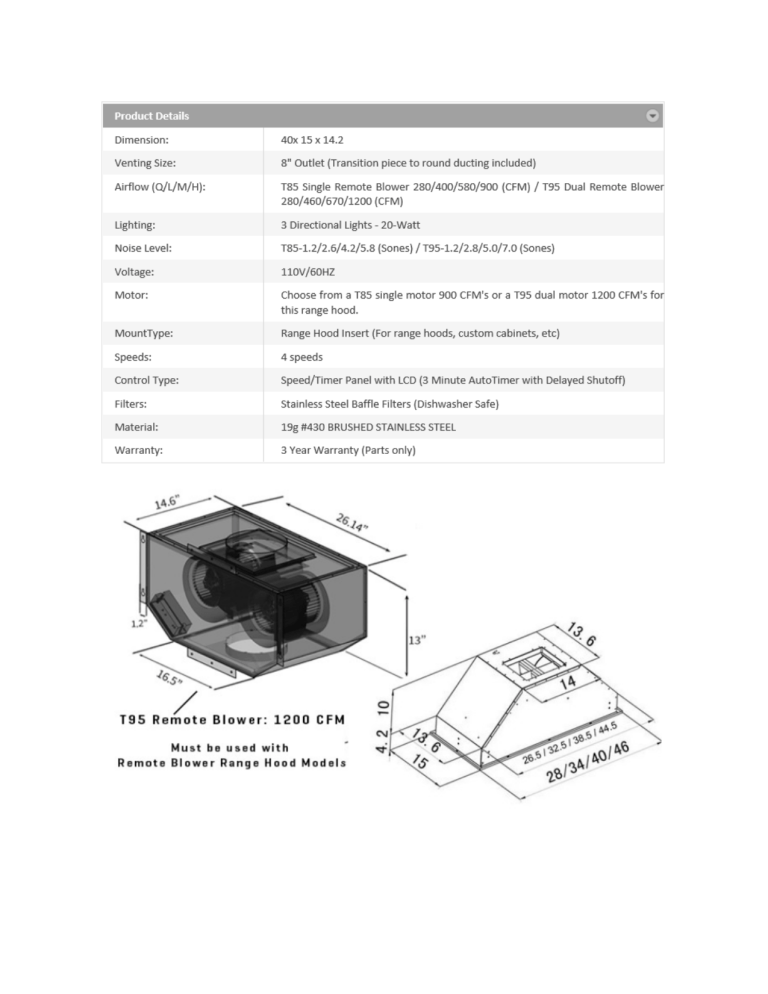

ZLINE Kitchen and Bath 695-RS-40, 695-RD-40 Specification

ZLINE Kitchen and Bath 695-RS-40, 695-RD-40 Specification
Dimension:
Venting Size:
Airflow [Q/L/M/H):
Lighting:
Moise Level:
Voltage:
Motor:
MountType:
Speeds:
Control Type:
Filters:
Material:
Warranty:
40x 15x 14.2
8" Outlet (Transition piece to round ducting included)
T85 Single Remote Blower 230/400/580/900 (CFM) / T95 Dual Remote Blower
280/460/670/1200 (CFM)
3 Directional Lights - 20-Watt
T85-1.2/2.6/4.2/5.8 (Sones) f T95-1.2/2.8/5.0/7.0 (Sones)
110V/60HZ
Choose from a T85 single motor 900 CFM'5 or a T95 dual motor 1200 CFM's for
this range hood.
Range Hood Insert (For range hoods, custom cabinets, etc)
4 speeds
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Stainless Steel Baffle Filters (Dishwasher Safe)
19g #430 BRUSHED STAINLESS STEEL
3 Year Warranty (Parts only)
T95 Remote Blower: 1200 CFM
Must be used with
Remote Blower Range Hood Models
