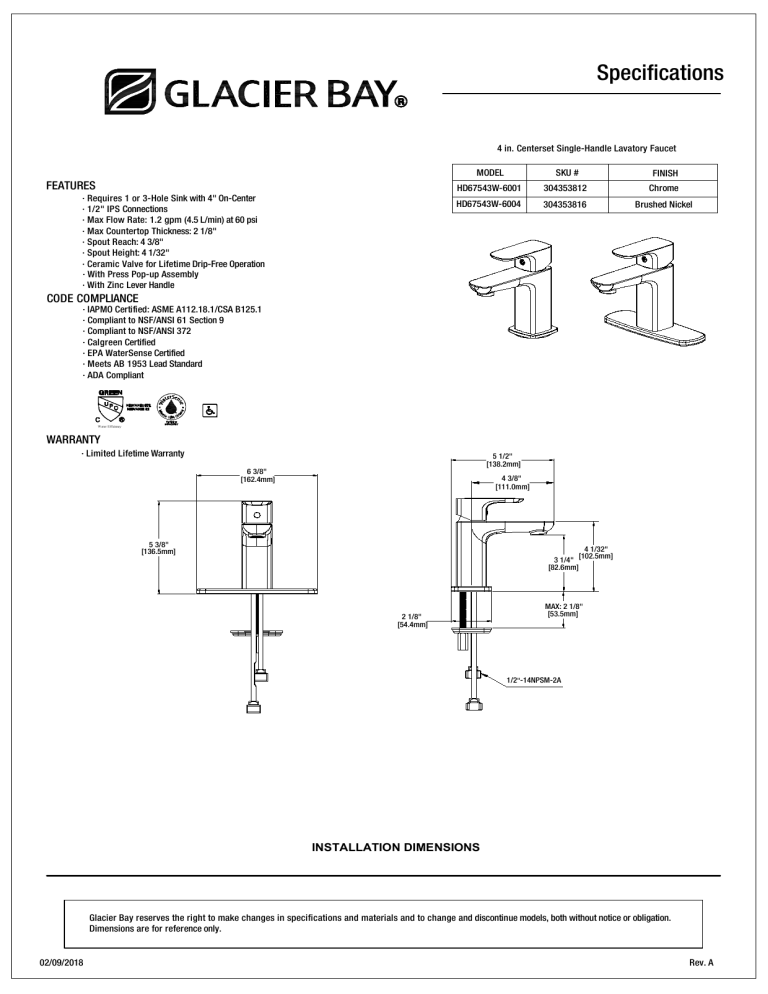

Specifications
4 in. Centerset Single-Handle Lavatory Faucet
FEATURES
· Requires 1 or 3-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 2 1/8"
· Spout Reach: 4 3/8"
· Spout Height: 4 1/32"
· Ceramic Valve for Lifetime Drip-Free Operation
· With Press Pop-up Assembly
· With Zinc Lever Handle
MODEL
SKU #
FINISH
HD67543W-6001
304353812
Chrome
HD67543W-6004
304353816
Brushed Nickel
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
5 1/2"
[138.2mm]
6 3/8"
[162.4mm]
4 3/8"
[111.0mm]
5 3/8"
[136.5mm]
4 1/32"
[102.5mm]
3 1/4"
[82.6mm]
2 1/8"
[54.4mm]
MAX: 2 1/8"
[53.5mm]
1/2"-14NPSM-2A
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
02/09/2018
Rev. A
