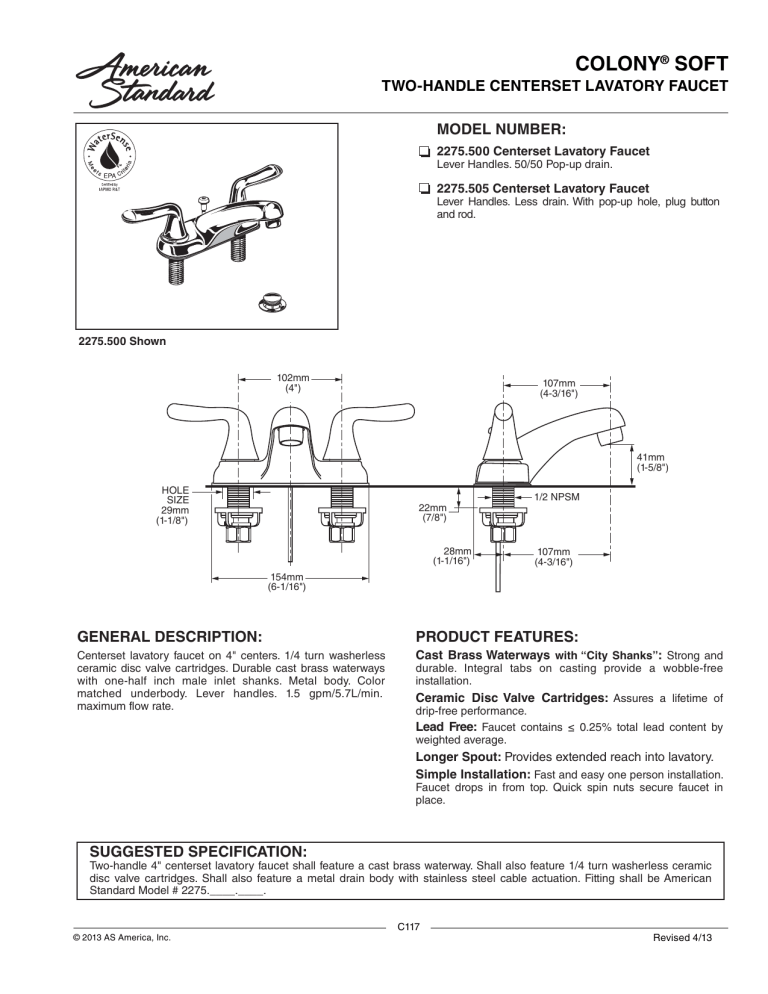

COLONY® SOFT
TWO-HANDLE CENTERSET LAVATORY FAUCET
MODEL NUMBER:
2275.500 Centerset Lavatory Faucet
Lever Handles. 50/50 Pop-up drain.
2275.505 Centerset Lavatory Faucet
Lever Handles. Less drain. With pop-up hole, plug button
and rod.
2275.500 Shown
102mm
(4")
107mm
(4-3/16")
41mm
(1-5/8")
HOLE
SIZE
29mm
(1-1/8")
1/2 NPSM
22mm
(7/8")
28mm
(1-1/16")
107mm
(4-3/16")
154mm
(6-1/16")
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Centerset lavatory faucet on 4" centers. 1/4 turn washerless
ceramic disc valve cartridges. Durable cast brass waterways
with one-half inch male inlet shanks. Metal body. Color
matched underbody. Lever handles. 1.5 gpm/5.7L/min.
maximum flow rate.
Cast Brass Waterways with “City Shanks”: Strong and
durable. Integral tabs on casting provide a wobble-free
installation.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Longer Spout: Provides extended reach into lavatory.
Simple Installation: Fast and easy one person installation.
Faucet drops in from top. Quick spin nuts secure faucet in
place.
SUGGESTED SPECIFICATION:
Two-handle 4" centerset lavatory faucet shall feature a cast brass waterway. Shall also feature 1/4 turn washerless ceramic
disc valve cartridges. Shall also feature a metal drain body with stainless steel cable actuation. Fitting shall be American
Standard Model # 2275.____.____.
C117
© 2013 AS America, Inc.
Revised 4/13
COLONY® SOFT
TWO-HANDLE CENTERSET LAVATORY FAUCET
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B125
NSF 61/Section 9 and Annex G
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
Description
2275.500
Centerset lavatory. Lever Handles. 50/50 Pop-up drain.
2275.505
Centerset lavatory. Lever Handles. Less drain. With pop-up hole and rod.
Polished
Chrome
PVD
Satin
Nickel
002
295
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
AERATOR MODIFICATIONS***
Parts
Suffix**
0.5gpm (1.9Lpm) PCA* Spray
___F05
0.5gpm (1.9Lpm) Vandal Resistant PCA Spray
___V05
1.0gpm (3.8Lpm) PCA Aerator
___F10
1.0gpm (3.8Lpm) Vandal Resistant PCA Aerator
___V10
1.5gpm (5.7Lpm) Vandal Resistant PCA Aerator
___V15
AVAILABLE MODIFICATIONS***
Indexed Installed (Red & Blue)
Handles
Part
Suffix**
__RB
*PCA — Pressure Compensating
**To modify a product, add suffix after the 4th digit (ex. 2064F05101.002)
***Modified product models are NOT WaterSense certified.
C118
© 2013 AS America, Inc.
Revised 4/13
