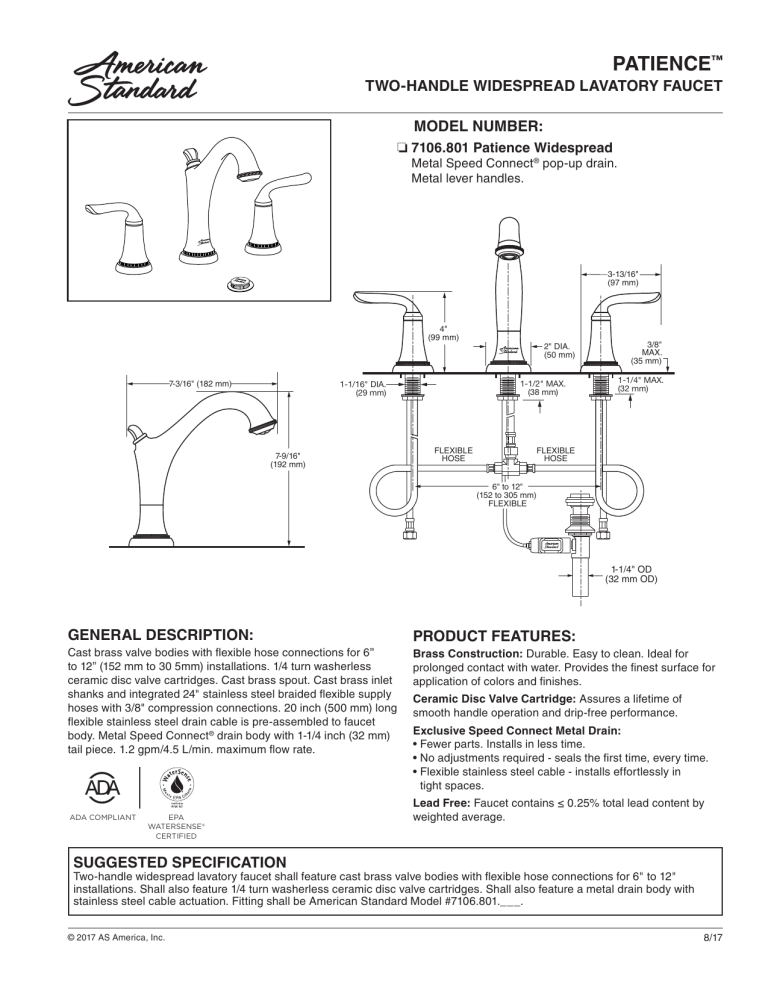

PATIENCE™
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
MODEL NUMBER:
❏ 7106.801 Patience Widespread
etal Speed Connect ® pop-up drain.
M
Metal lever handles.
3-13/16"
(97 mm)
4"
(99 mm)
7-3/16" (182 mm)
1-1/2" MAX.
(38 mm)
1-1/16" DIA.
(29 mm)
7-9/16"
(192 mm)
2" DIA.
(50 mm)
FLEXIBLE
HOSE
3/8"
MAX.
(35 mm)
1-1/4" MAX.
(32 mm)
FLEXIBLE
HOSE
6" to 12"
(152 to 305 mm)
FLEXIBLE
1-1/4" OD
(32 mm OD)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Cast brass valve bodies with flexible hose connections for 6”
to 12” (152 mm to 30 5mm) installations. 1/4 turn washerless
ceramic disc valve cartridges. Cast brass spout. Cast brass inlet
shanks and integrated 24" stainless steel braided flexible supply
hoses with 3/8" compression connections. 20 inch (500 mm) long
flexible stainless steel drain cable is pre-assembled to faucet
body. Metal Speed Connect ® drain body with 1-1/4 inch (32 mm)
tail piece. 1.2 gpm/4.5 L/min. maximum flow rate.
Brass Construction: Durable. Easy to clean. Ideal for
prolonged contact with water. Provides the finest surface for
application of colors and finishes.
ADA COMPLIANT
EPA
WATERSENSE®
CERTIFIED
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with flexible hose connections for 6" to 12"
installations. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature a metal drain body with
stainless steel cable actuation. Fitting shall be American Standard Model #7106.801.___.
© 2017 AS America, Inc.
8/17
PATIENCE™
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
1.2
GALLONS PER MINUTE
ANSI A117.1
ASME A112.18.1
CSA B125.1
NSF 61/Section 9
NSF 372
FLOW RATE*
1.4
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
7106.801
Description
Brushed
Nickel
Polished
Chrome
Legacy
Bronze
Polished
Nickel
295
002
278
013
Patience Widespread with metal Speed Connect ®
pop-up drain. Metal lever handles.
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2017 AS America, Inc.
8/17
