Intermatic ET8215C, ET8015C Specification

Intermatic ET8215C, ET8015C Specification

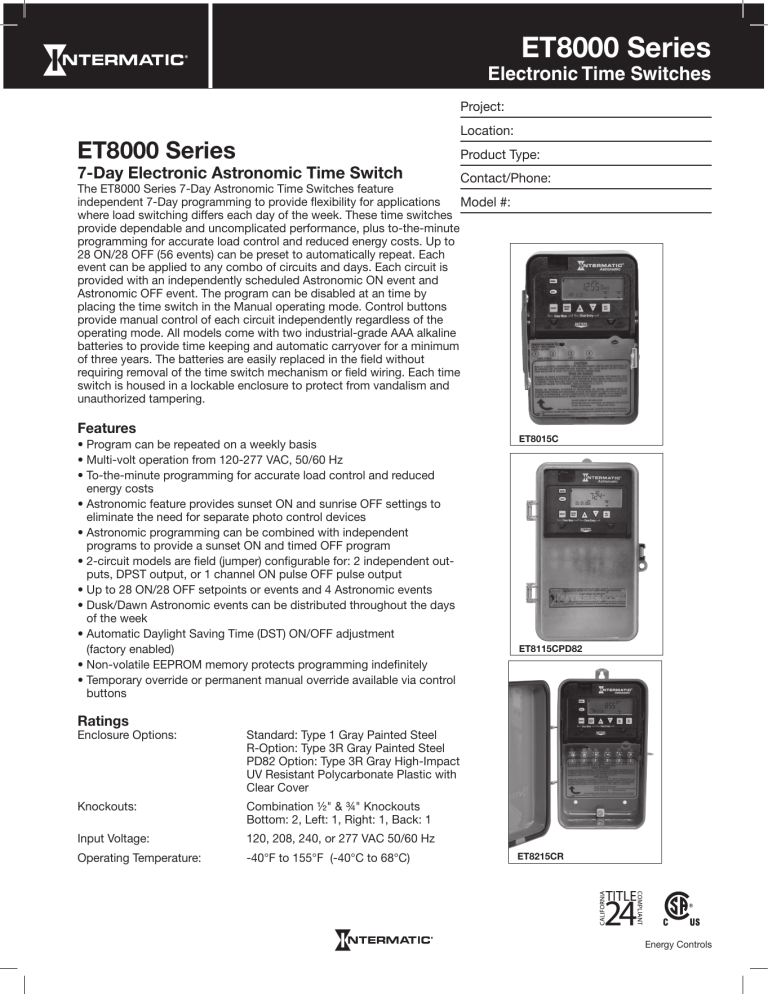

ET8000 Series
Electronic Time Switches
Project:
Location:
ET8000 Series
Product Type:
7-Day Electronic Astronomic Time Switch
Contact/Phone:
The ET8000 Series 7-Day Astronomic Time Switches feature
independent 7-Day programming to provide flexibility for applications
Model #:
where load switching differs each day of the week. These time switches
provide dependable and uncomplicated performance, plus to-the-minute
programming for accurate load control and reduced energy costs. Up to
28 ON/28 OFF (56 events) can be preset to automatically repeat. Each
event can be applied to any combo of circuits and days. Each circuit is
provided with an independently scheduled Astronomic ON event and
Astronomic OFF event. The program can be disabled at an time by
placing the time switch in the Manual operating mode. Control buttons
provide manual control of each circuit independently regardless of the
operating mode. All models come with two industrial-grade AAA alkaline
batteries to provide time keeping and automatic carryover for a minimum
of three years. The batteries are easily replaced in the field without
requiring removal of the time switch mechanism or field wiring. Each time
switch is housed in a lockable enclosure to protect from vandalism and
unauthorized tampering.
Features
• Program can be repeated on a weekly basis
• Multi-volt operation from 120-277 VAC, 50/60 Hz
• To-the-minute programming for accurate load control and reduced
energy costs
• Astronomic feature provides sunset ON and sunrise OFF settings to
eliminate the need for separate photo control devices
• Astronomic programming can be combined with independent
programs to provide a sunset ON and timed OFF program
• 2-circuit models are field (jumper) configurable for: 2 independent outputs, DPST output, or 1 channel ON pulse OFF pulse output
• Up to 28 ON/28 OFF setpoints or events and 4 Astronomic events
• Dusk/Dawn Astronomic events can be distributed throughout the days
of the week
• Automatic Daylight Saving Time (DST) ON/OFF adjustment
(factory enabled)
• Non-volatile EEPROM memory protects programming indefinitely
• Temporary override or permanent manual override available via control
buttons
ET8015C
ET8115CPD82
Ratings
Enclosure Options:
Standard: Type 1 Gray Painted Steel
R-Option: Type 3R Gray Painted Steel
PD82 Option: Type 3R Gray High-Impact
UV Resistant Polycarbonate Plastic with
Clear Cover
Knockouts:
Combination ½" & ¾" Knockouts
Bottom: 2, Left: 1, Right: 1, Back: 1
Input Voltage: 120, 208, 240, or 277 VAC 50/60 Hz
Operating Temperature:
-40°F to 155°F (-40°C to 68°C)
ET8215CR
Energy Controls
ET8000 Series
ET8015, ET8215 Models
N.O. Contact Ratings:Resistive: 30 Amps @ 120/240 VAC
Resistive: 20 Amps @ 28 VDC
Inductive: 30 Amps @ 120/240 VAC
Tungsten: 5 Amps @ 120/240 VAC
Ballast: 20 Amps @ 120-277 VAC
Motor: 1 HP @ 120 VAC
Motor: 2 HP @ 240 VAC
ET8115 Models
N.O./N.C. Contact Ratings:Resistive: 20 Amps (N.O.), 10 Amps (N.C.) @ 120/240 VAC
Inductive: 20 Amps (N.O.), 10 Amps (N.C.) @ 120/240 VAC
Tungsten: 5 Amps (N.O.) @ 120/240 VAC
Ballast: 20 Amps (N.O.), 3 Amps (N.C.) @ 120-277 VAC
Motor: 1 HP (N.O.), ¼ HP (N.C.) @ 120 VAC
Motor: 2 HP (N.O.), ½ HP (N.C.) @ 240 VAC
Pulse Feature: 2-circuit models feature 2-second pulse option for contactor and bell
ringing applications.
Auto DST:
Automatic adjustment for Daylight Saving Time
Battery Backup: Two field-replaceable AAA batteries maintain date and accurate time for a
minimum of three years. Batteries can be replaced when power to mechanism
is activated.
Wiring Terminals:
#18 to #10 AWG wire
Minimum ON/OFF Time:
1 minute
Maximum ON/OFF Time:
6 days, 23 hours 59 minutes
Warranty:
Limited 1 year
Model Number
Circuits
Switch
Volts AC
Rating
Enclosure
Shipping Weight
ET8015C
1
SPST
120, 208, 240, 277
30 Amps
Type 1 Steel
2.9 lbs. (1.3 kg)
ET8015CPD82
1
SPST
120, 208, 240, 277
30 Amps
Type 3R Plastic
3.6 lbs. (1.6 kg)
ET8015CR
1
SPST
120, 208, 240, 277
30 Amps
Type 3R Steel
3.6 lbs. (1.6 kg)
ET8115C
1
SPDT
120, 208, 240, 277
20/10 Amps
Type 1 Steel
2.9 lbs. (1.3 kg)
ET8115CPD82
1
SPDT
120, 208, 240, 277
20/10 Amps
Type 3R Plastic
3.6 lbs. (1.6 kg)
ET8115CR
1
SPDT
120, 208, 240, 277
20/10 Amps
Type 3R Steel
3.8 lbs. (1.7 kg)
ET8215C*
2
SPST
120, 208, 240, 277
30 Amps
Type 1 Steel
3.0 lbs. (1.4 kg)
ET8215CPD82*
2
SPST
120, 208, 240, 277
30 Amps
Type 3R Plastic
3.6 lbs. (1.6 kg)
ET8215CR*
2
*Can be wired to DPST
SPST
120, 208, 240, 277
30 Amps
Type 3R Steel
3.7 lbs. (1.7 kg)
Specification
The 7-Day Astronomic electronic-type time switch shall be capable of permitting up to 28 ON/28 OFF events. In addition,
the time switch shall include selectable Astronomic (dusk/dawn) settings for each day and circuit to allow load switching
at sunset and/or sunrise without a photo control device. The time switch shall provide a minimum ON or OFF time of 1
minute. The time switch to be powered by ___ (120)(208)(240)(277) VAC, ___ (50)(60) Hz power supply. The time switch
mechanism features a snap-in design to provide easy mechanism removal for mounting the enclosure. The time switch
enclosure shall be a _____ (Type 1 Steel)(Type 3R Steel)(Type 3R Plastic) lockable enclosure that shall be painted with an
electrostatic process to eliminate the potential for corrosion. The time switch shall provide clear terminal
identification on a see-through non-curling terminal insulator. Terminal connections shall be made using teeter-type
terminal screws to provide secure connections for wire sizes up to #10 AWG. Switch configuration shall be _____ (SPST)
(DPST)(SPDT) with a UL or CSA listed switch rating of:
(If SPST:)
(If SPDT:)
• Resistive: 30 Amps @ 120/240 VAC • Resistive: 20 Amps (N.O.), 10 Amps (N.C.) @ 120/240 VAC
• Resistive: 20 Amps @ 28 VDC
• Inductive: 20 Amps (N.O.), 10 Amps (N.C.) @ 120/240 VAC
• Inductive: 30 Amps @ 120/240 VAC • Tungsten: 5 Amps (N.O.) @ 120/240 VAC
• Tungsten: 5 Amps @ 120/240 VAC • Ballast: 20 Amps (N.O.), 3 Amps (N.C.) @ 120-277 VAC
• Ballast: 20 Amps @ 120-277 VAC
• Motor: 1 HP (N.O.), ¼ HP (N.C.) @ 120 VAC
• Motor: 1 HP @ 120 VAC
• Motor: 2 HP (N.O.), ½ HP (N.C.) @ 240 VAC
• Motor: 2 HP @ 240 VAC
The time switch shall be UL or CSA listed under UL category 916 Energy Management Equipment and shall be
Intermatic model ________________(See Model Numbers Listed).
Energy Controls
www.intermatic.com
XXXXXXXX
ET8000
Series
Diagrams
Timer Power
Timer Power
1
2
3
1
4
2
3
4
5
L2
Neutral
L1
Line
Load 1
Load
120 VAC
Input
Install jumper
only if timer input
and load voltage
are the same.
ET8015-120 VAC-SPST
Timer Power
Install jumper
only if timer input
and load voltages
are the same.
Load 2
ET8115-SPDT (load switching)
Timer Power
1
2
3
4
5
6
ON Pulse
1
L2
2
3
4
OFF Pulse
5
6
L2/Neutral
L1
L1
240 VAC Input
CLOSE
Load
COM
Configuration jumper set to “SIM”.
ET8215-240 VAC-DPST
Maintained
Contactor
OPEN
Configure jumper set to “PUL”.
ET8215-Pulse 2x SPST
Timer Power
Timer Power
1
1
2
3
4
5
3
4
5
6
6
L2/ Neutral
L2/Neutral
L1
L1
120/208/240/277
VAC Input
2
L3
Load
1
L4/Neutral
Configuration jumper set to “IND”.
ET8215-2x SPST
L5
Load
2
L6/Neutral
Load
Configuration jumper set to “PUL” Each event, ON or OFF, Rings Bell.
ET8215-Pulse 2x SPST (bell ringing)
Energy Controls
ET8000 Series
Notes
Energy Controls
www.intermatic.com
