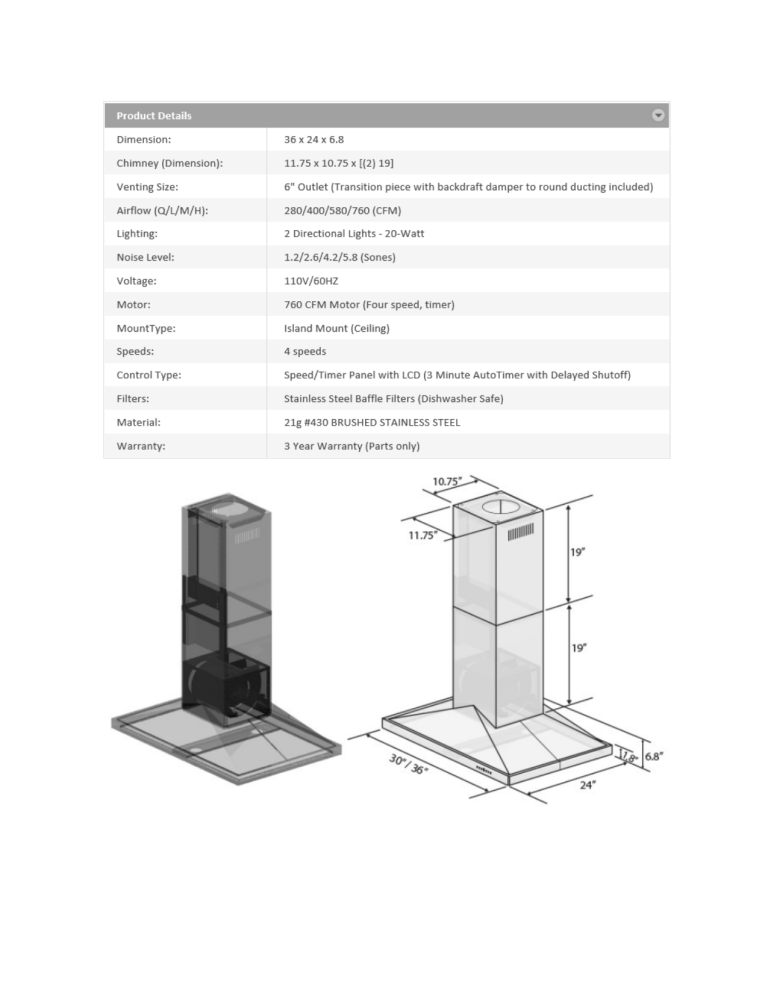

ZLINE Kitchen and Bath GL1i-36 Specification

ZLINE Kitchen and Bath GL1i-36 Specification
Product Details wv
Dimension: 36 x 24 x 6.5
Chimney (Dimension): 11.75 x 10.75 х [{2) 19]
Venting Size: 6" Outlet (Transition piece with backdraft damper to round ducting included)
Airflow (Q/L/M/H): 280/400/580/760 (СЕМ)
Lighting: 2 Directional Lights - 20-Watt
Noise Level: 1.2/2.6/4.2/5.8 (Sones)
Voltage: 110V/60HZ
Motor: 760 CFM Motor (Four speed, timer)
MountType: Island Mount (Ceiling)
Speeds: 4 speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 21g #430 BRUSHED STAINLESS 5TEEL
Warranty: 3 Year Warranty (Parts only)
=
19”
|
