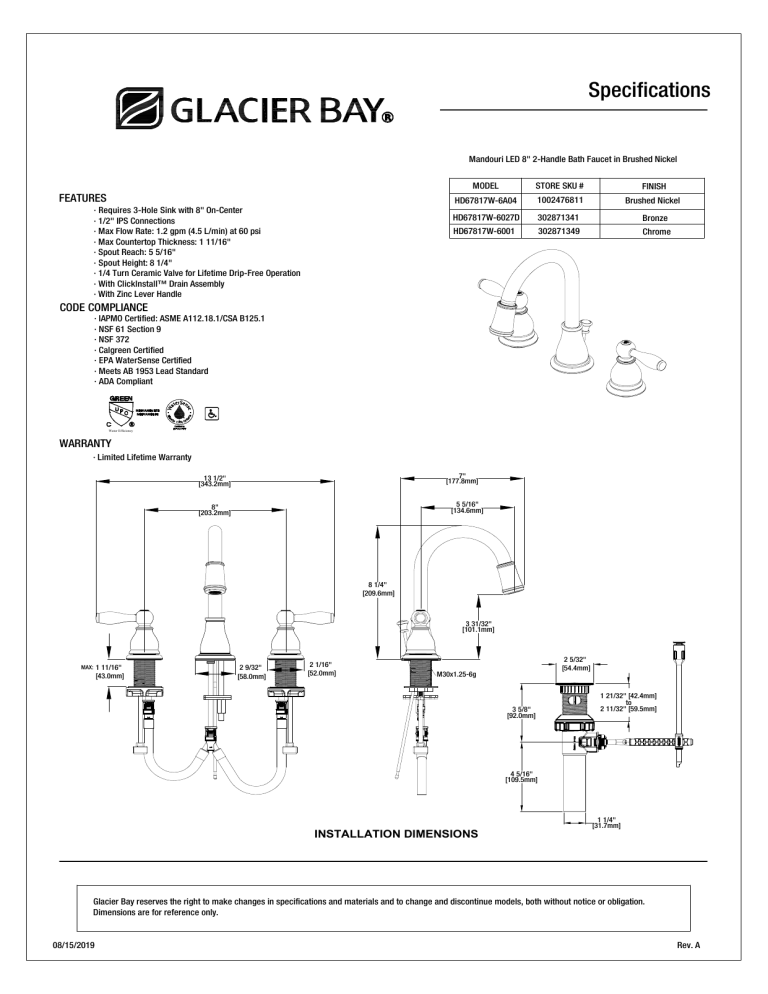

Specifications
Mandouri LED 8" 2-Handle Bath Faucet in Brushed Nickel
FEATURES
· Requires 3-Hole Sink with 8" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 11/16"
· Spout Reach: 5 5/16"
· Spout Height: 8 1/4"
· 1/4 Turn Ceramic Valve for Lifetime Drip-Free Operation
· With ClickInstallâ„¢ Drain Assembly
· With Zinc Lever Handle
MODEL
STORE SKU #
FINISH
HD67817W-6A04
1002476811
Brushed Nickel
HD67817W-6027D
302871341
Bronze
HD67817W-6001
302871349
Chrome
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· NSF 61 Section 9
· NSF 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
7"
[177.8mm]
13 1/2"
[343.2mm]
5 5/16"
[134.6mm]
8"
[203.2mm]
8 1/4"
[209.6mm]
3 31/32"
[101.1mm]
MAX:
1 11/16"
[43.0mm]
2 9/32"
[58.0mm]
2 1/16"
[52.0mm]
2 5/32"
[54.4mm]
M30x1.25-6g
3 5/8"
[92.0mm]
1 21/32" [42.4mm]
to
2 11/32" [59.5mm]
4 5/16"
[109.5mm]
INSTALLATION DIMENSIONS
1 1/4"
[31.7mm]
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
08/15/2019
Rev. A
