Glacier Bay HD67529W-6201, HD67529W-6204 Specification

Glacier Bay HD67529W-6201, HD67529W-6204 Specification

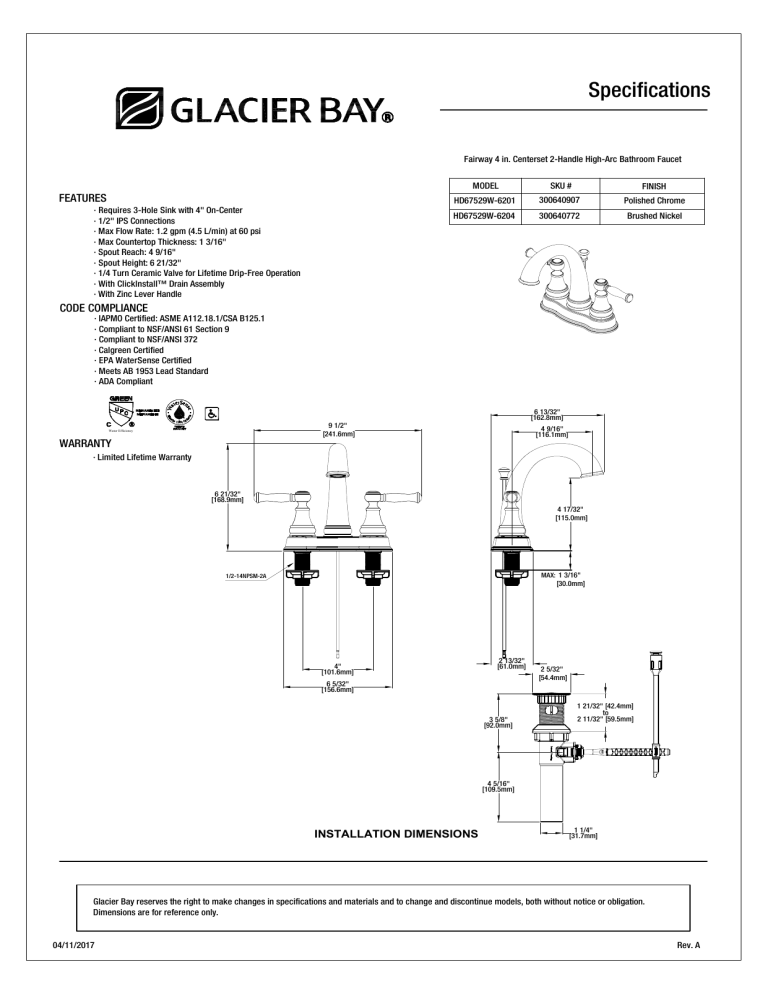

Specifications
Fairway 4 in. Centerset 2-Handle High-Arc Bathroom Faucet
FEATURES
· Requires 3-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 3/16"
· Spout Reach: 4 9/16"
· Spout Height: 6 21/32"
· 1/4 Turn Ceramic Valve for Lifetime Drip-Free Operation
· With ClickInstall™ Drain Assembly
· With Zinc Lever Handle
MODEL
SKU #
FINISH
HD67529W-6201
300640907
Polished Chrome
HD67529W-6204
300640772
Brushed Nickel
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
6 13/32"
[162.8mm]
9 1/2"
[241.6mm]
Water Efficiency
WARRANTY
4 9/16"
[116.1mm]
· Limited Lifetime Warranty
6 21/32"
[168.9mm]
4 17/32"
[115.0mm]
MAX: 1 3/16"
1/2-14NPSM-2A
[30.0mm]
4"
[101.6mm]
2 13/32"
[61.0mm]
6 5/32"
[156.6mm]
3 5/8"
[92.0mm]
2 5/32"
[54.4mm]
1 21/32" [42.4mm]
to
2 11/32" [59.5mm]
4 5/16"
[109.5mm]
INSTALLATION DIMENSIONS
1 1/4"
[31.7mm]
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
04/11/2017
Rev. A
Specifications
Glacier Bay Fairway Series Tissue Holder
MODEL
Internet SKU #
FINISH
20113-2004
300162026
Brushed Nickel
FEATURES
·
·
·
·
·
6.82 "L x 4.25"W x 2.83"H
Coordinates with Fairway Series Bath Products
Easy Installation
Includes Mounting Hardware and Plastic Anchors
Tools Required for Installation:
-Drill with 1/4" Drill Bit
-Philips Screwdriver
-Small Flat Head Screwdriver
4.25”
[107.9mm]
2.83”
[72mm]
1.74”
[ 44.1mm]
6.82”
[173.3mm]
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
11/23/2017
Rev. A
Specifications
Glacier Bay Fairway Series Towel Ring
MODEL
Internet SKU #
FINISH
20113-0504
300162113
Brushed Nickel
FEATURES
·
·
·
·
·
6.1 "L x 6.82"W x 2.83"H
Coordinates with Fairway Series Bath Products
Easy Installation
Includes Mounting Hardware and Plastic Anchors
Tools Required for Installation:
-Drill with 1/4" Drill Bit
-Philips Screwdriver
-Small Flat Head Screwdriver
2.83”
[72mm]
[
6.1”
155.5mm]
6.82”
[ 173.3mm]
1.74”
[ 44.1mm]
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
11/23/2017
Rev. A
Specifications
Glacier Bay Fairway Series 18in. Towel Bar
MODEL
Internet SKU #
FINISH
20113-0104
300161901
Brushed Nickel
FEATURES
·
·
·
·
·
19.74 "L x 1.74"W x 2.84"H
Coordinates with Fairway Series Bath Products
Easy Installation
Includes Mounting Hardware and Plastic Anchors
Tools Required for Installation:
-Drill with 1/4" Drill Bit
-Philips Screwdriver
-Small Flat Head Screwdriver
2.84”
[72mm]
1.74”
[44.08mm]
18”
[457.2mm]
19.74”
[501.28mm]
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
11/23/2017
Rev. A
