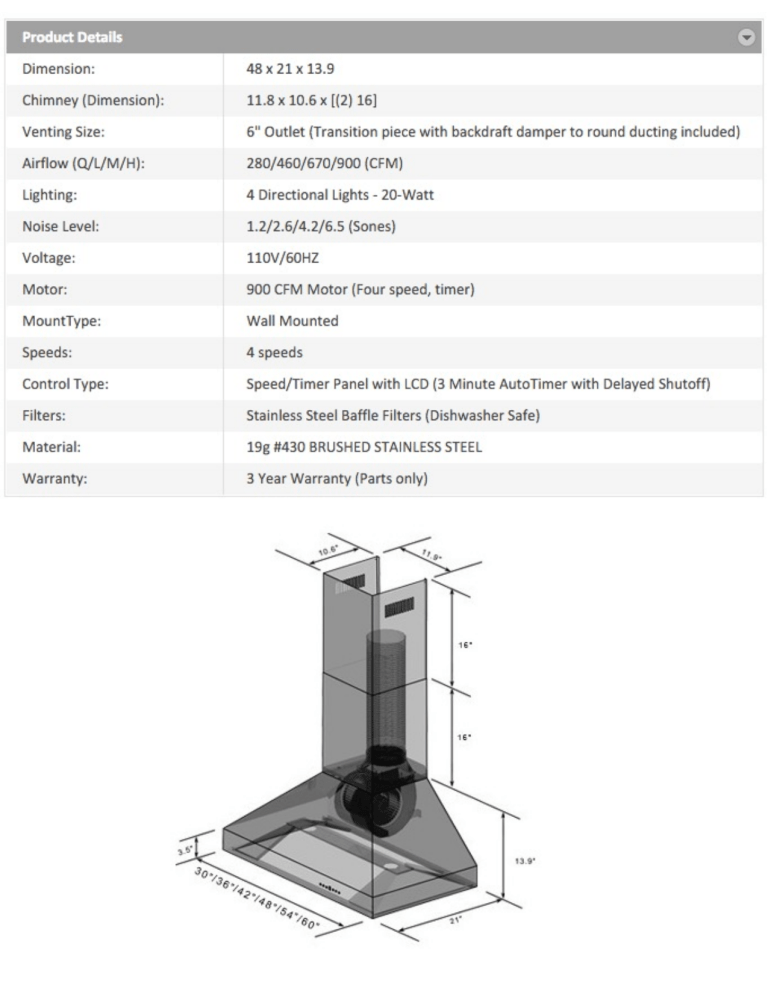

ZLINE Kitchen and Bath 597-48 Specification

ZLINE Kitchen and Bath 597-48 Specification
Dimension: 48 x 21 x 13.9
Chimney (Dimension): 11.8 x 10.6 x [(2) 16]
Venting Size: 6" Outlet (Transition piece with backdraft damper to round ducting included)
Airflow (Q/L/M/H): 280/460/670/900 (CFM)
Lighting: 4 Directional Lights - 20-Watt
Noise Level: 1.2/2.6/4.2/6.5 (Sones)
Voltage: 110V/60HZ
Motor: 900 CFM Motor (Four speed, timer)
MountType: Wall Mounted
Speeds: 4 speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 19g #430 BRUSHED STAINLESS STEEL
Warranty: 3 Year Warranty (Parts only)
