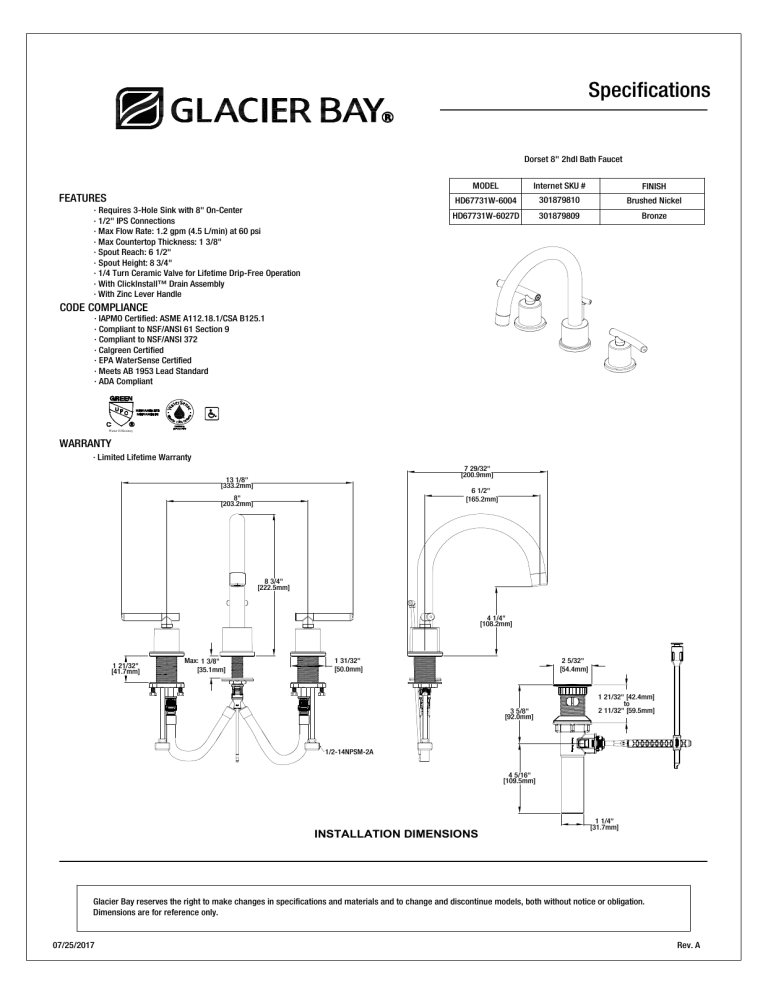

Specifications
Dorset 8" 2hdl Bath Faucet
FEATURES
· Requires 3-Hole Sink with 8" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 3/8"
· Spout Reach: 6 1/2"
· Spout Height: 8 3/4"
· 1/4 Turn Ceramic Valve for Lifetime Drip-Free Operation
· With ClickInstallâ„¢ Drain Assembly
· With Zinc Lever Handle
MODEL
Internet SKU #
FINISH
HD67731W-6004
301879810
Brushed Nickel
HD67731W-6027D
301879809
Bronze
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
7 29/32"
[200.9mm]
13 1/8"
[333.2mm]
6 1/2"
[165.2mm]
8"
[203.2mm]
8 3/4"
[222.5mm]
4 1/4"
[108.2mm]
1 21/32"
[41.7mm]
Max: 1 3/8"
[35.1mm]
2 5/32"
[54.4mm]
1 31/32"
[50.0mm]
3 5/8"
[92.0mm]
1 21/32" [42.4mm]
to
2 11/32" [59.5mm]
1/2-14NPSM-2A
4 5/16"
[109.5mm]
INSTALLATION DIMENSIONS
1 1/4"
[31.7mm]
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
07/25/2017
Rev. A
