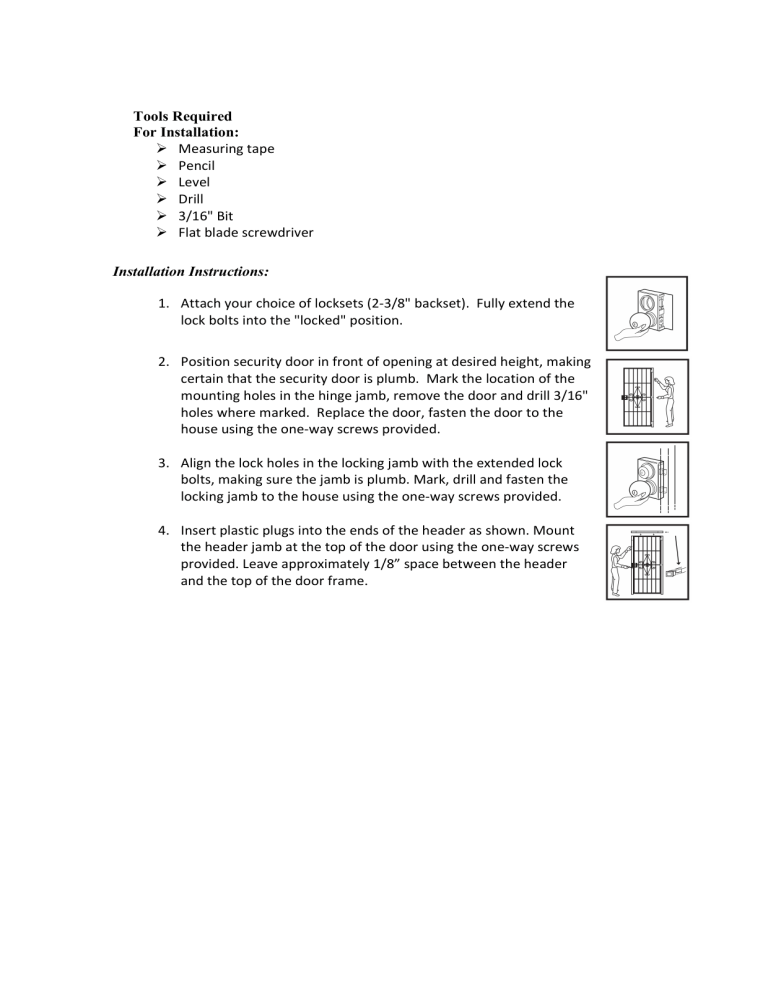

Tools Required
For Installation:
Measuring tape
Pencil
Level
Drill
3/16" Bit
Flat blade screwdriver
Installation Instructions:
1. Attach your choice of locksets (2-3/8" backset). Fully extend the
lock bolts into the "locked" position.
2. Position security door in front of opening at desired height, making
certain that the security door is plumb. Mark the location of the
mounting holes in the hinge jamb, remove the door and drill 3/16"
holes where marked. Replace the door, fasten the door to the
house using the one-way screws provided.
3. Align the lock holes in the locking jamb with the extended lock
bolts, making sure the jamb is plumb. Mark, drill and fasten the
locking jamb to the house using the one-way screws provided.
4. Insert plastic plugs into the ends of the header as shown. Mount
the header jamb at the top of the door using the one-way screws
provided. Leave approximately 1/8” space between the header
and the top of the door frame.
