EZ-FLO 10491N Specification

EZ-FLO 10491N Specification

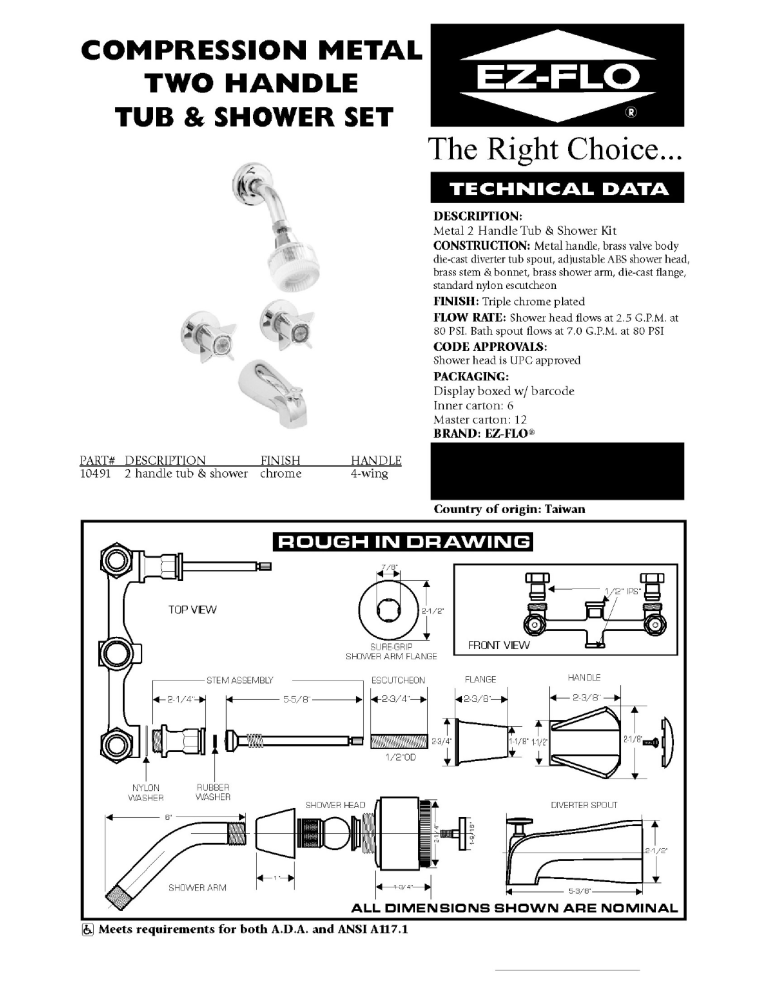

COMPRESSION METAL u
TWO HANDLE
TUB & SHOWER SET
Fi =
e
| ge
7
à as
«(^ (E E ©
7? |
E
>
PART# DESCRIPTION FINISH HANDLE
10491 2 handle tub & shower chrome 4-wing
The Right Choice...
DESCRIPTION:
Metal 2 Handle Tub & Shower Kit
CONSTRUCTION: Metal handle, brass valve body
die-cast diverter tub spout, adjustable ABS shower head,
brass stem & bonnet, brass shower arm, die-cast flange,
standard nylon escutcheon
FINISH: Triple chrome plated
FLOW RATE: Shower head flows at 2.5 G.P.M. at
80 PSI. Bath spout flows at 7.0 G.P.M. at 80 PSI
CODE APPROVALS:
Shower head is UPC approved
PACKAGING:
Display boxed w/ barcode
Inner carton: 6
Master carton: 12
BRAND: EZ-FLO®
Country of origin: Taiwan
B=
STEM ASSEMBLY
5-5/8 ——mP
ROUGH IN DRAWING
TEL
Вы.
“TP”
po
SURE-GRIP
SHOWER ARM FLANGE
ESCUTCHEON
2-3/4 — №
NYLON
WASHER
RUBBER
WASHER
d E"
=
Bien
FRONT VIEW LJ
FLANGE HANDLE
2-3, 5 — № 2-3/8" —
—
T = |
2-3/4 11/8" 1.9/2 2-1/8 =f)
Y
ob So}
DWVERTER SPOUT
E
ALL DIMENSIONS SHOWN ARE NOMINAL
Meets requirements for both A.D.A. and ANSI A117.1
