ZLINE Kitchen and Bath 697-304-48 Specification

ZLINE Kitchen and Bath 697-304-48 Specification

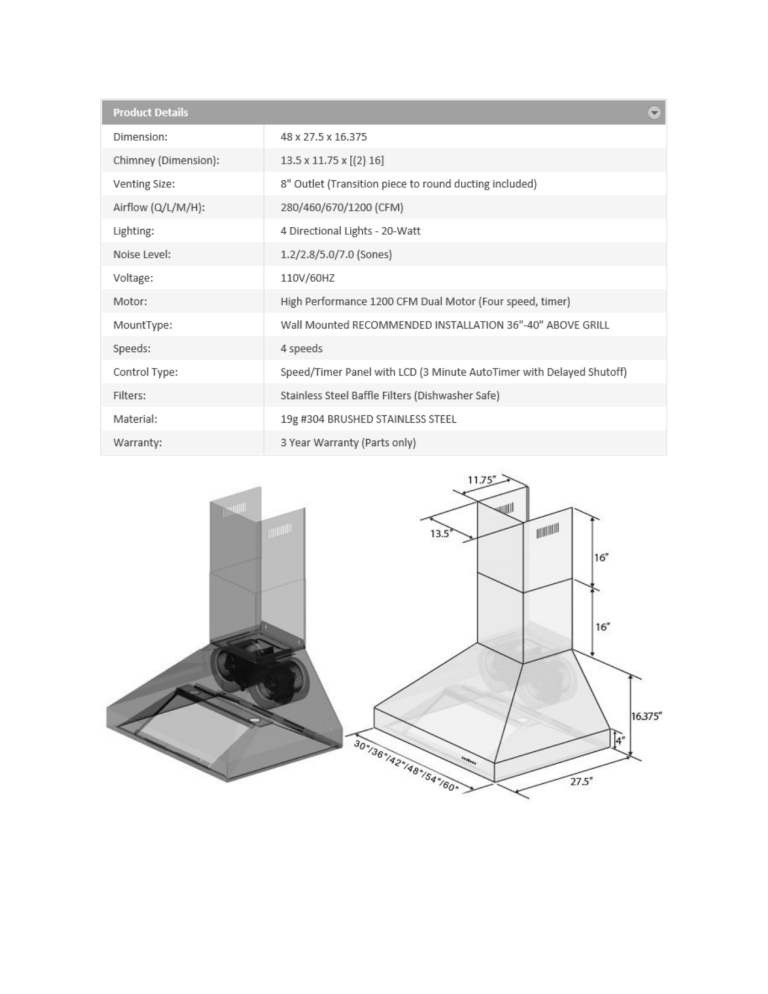

Product Details +
Dimension: 43 X 27.5 X 16.375
Chimney (Dimension): 13.5 x 11.75 x [(2) 16]
Venting Size: 8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H}: 280/460/670/1200 [CFM)
Lighting: 4 Directional Lights - 20-Watt
Moise Level: 1.2/2.8/5.0/7.0 (Sones)
Voltage: 110V/60HZ
Motor: High Performance 1200 CFM Dual Motor (Four speed, timer)
MountType: Wall Mounted RECOMMENDED INSTALLATION 36"-40" ABOVE GRILL
Speeds: 4 speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 19g #304 BRUSHED STAINLESS STEEL
Warranty: 3 Year Warranty (Parts only)
