ZLINE Kitchen and Bath 655-SCCCC-36 Specification

ZLINE Kitchen and Bath 655-SCCCC-36 Specification

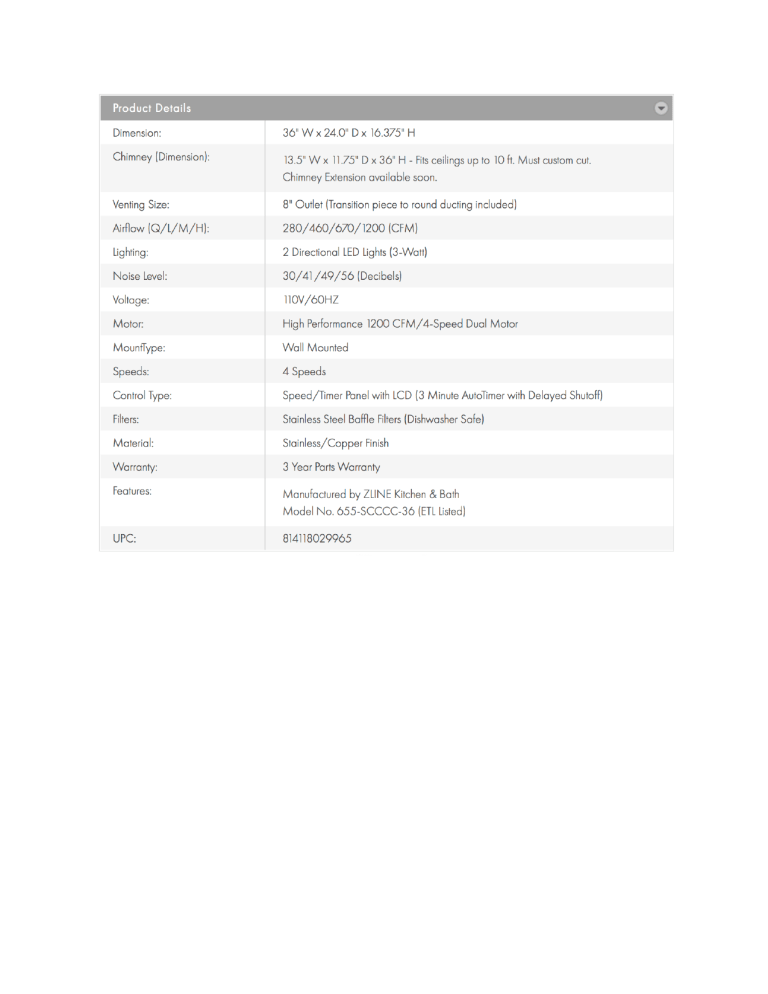

Product Details
Dimension:
Chimney (Dimension):
Venting Size:
Airflow (Q/L/M/H):
Lighting:
Noise Level:
Voltage:
Motor:
Mounflype:
Speeds:
Control Type:
Filters:
Material:
Warranty:
Features:
UPC:
36" W x 24.0" D x 16.375" H
13.5" W x 11.75" D x 36" H - Fits ceilings up to 10 ft. Must custom cut.
Chimney Extension available soon.
8" Outlet (Transition piece to round ducting included)
280/460/670/1200 (CFM)
2 Directional LED Lights (3-Watt)
30/41/49 /56 (Decibels)
110V/60HZ
High Performance 1200 CFM/4-Speed Dual Motor
Wall Mounted
4 Speeds
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Stainless Steel Baffle Filters (Dishwasher Safe)
Stainless/ Copper Finish
3 Year Parts Warranty
Manufactured by ZLINE Kitchen & Bath
Model No. 655-SCCCC-36 (ETL Listed)
814118029965
