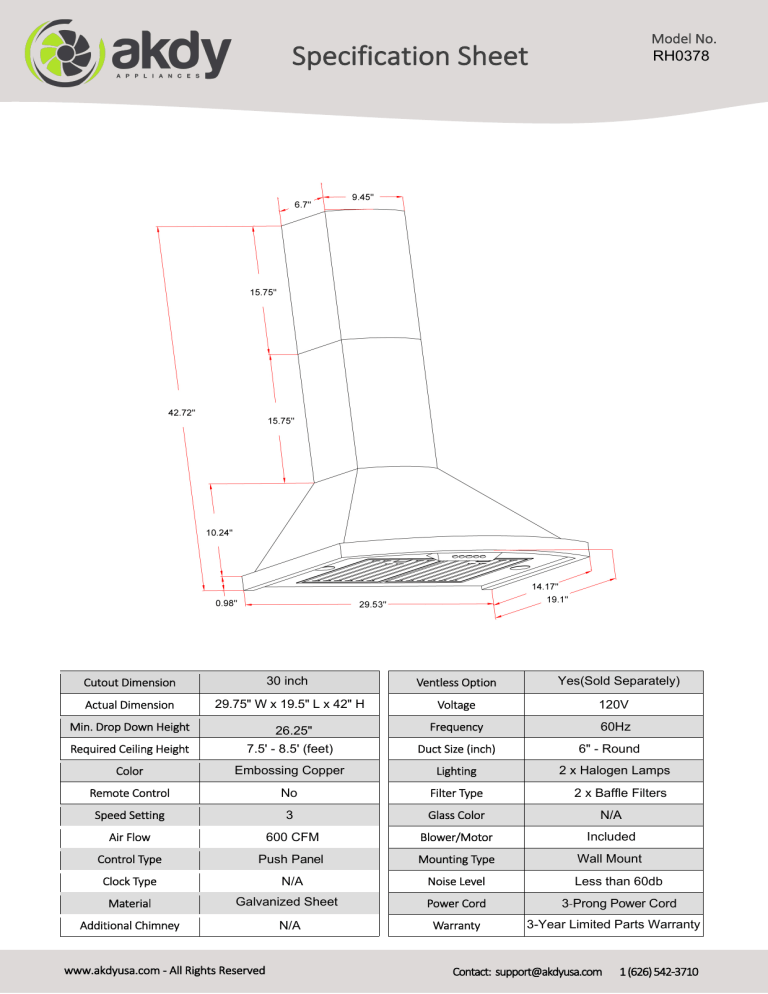

AKDY RH0378 Specification

AKDY RH0378 Specification
Model No.
RH0378
Specification Sheet
Yes(Sold Separately)
Cutout Dimension
30 inch
Ventless Option
Actual Dimension
29.75" W x 19.5" L x 42" H
Voltage
120V
Frequency
60Hz
Min. Drop Down Height
26.25"
Required Ceiling Height
7.5' - 8.5' (feet)
Duct Size (inch)
Color
Embossing Copper
Lighting
Remote Control
No
Filter Type
Speed Setting
3
Glass Color
N/A
Air Flow
600 CFM
Blower/Motor
Included
Control Type
Push Panel
Mounting Type
Wall Mount
Clock Type
N/A
Noise Level
Less than 60db
3‐Prong Power Cord
Material
Galvanized Sheet
Power Cord
Additional Chimney
N/A
Warranty
www.akdyusa.com - All Rights Reserved
6" - Round
2 x Halogen Lamps
2 x Baffle Filters
3-Year Limited Parts Warranty
Contact: [email protected]
1 (626) 542-3710
