ZLINE Kitchen and Bath 8667C-30 Specification

ZLINE Kitchen and Bath 8667C-30 Specification

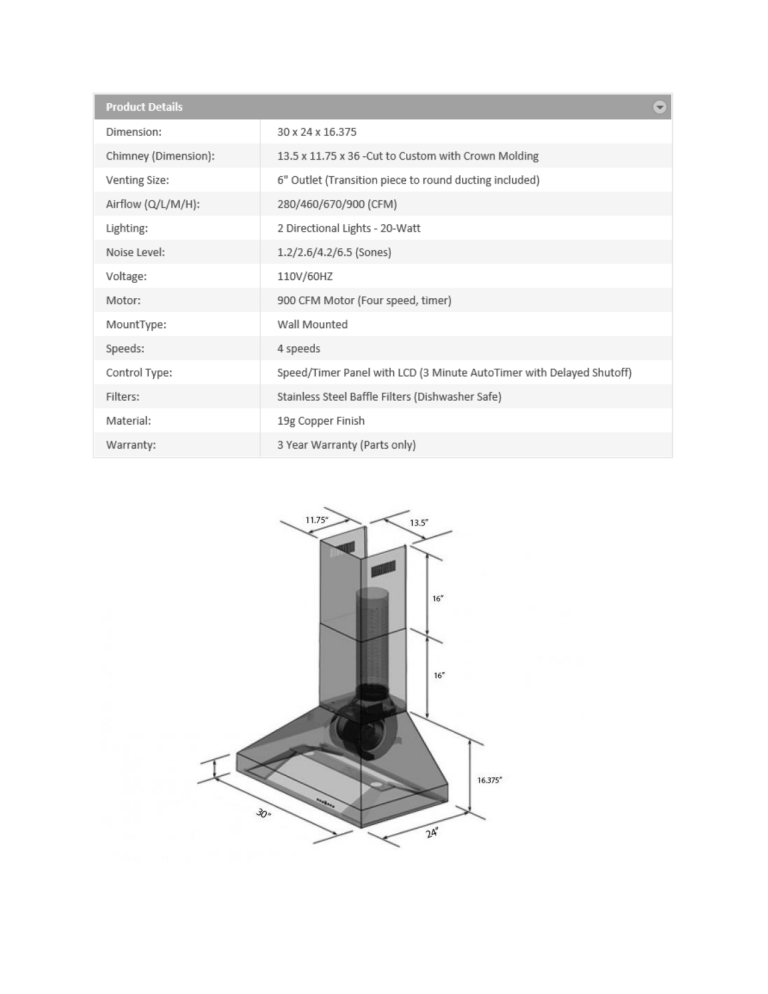

 Product Details +
Dimension: 30 x 24 x 16.375
Chimney (Dimension): 13.5 x 11.75 x 36 -Cut to Custom with Crown Molding
Venting Size: 6" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H}: 280/460/670/900 (СЕМ)
Lighting: 2 Directional Lights - 20-Watt
Noise Level: 1.2/2.6/4.2/6.5 (Sones)
Voltage: 110V/60HZ
Motor: 300 CFM Motor (Four speed, timer)
MountType: Wall Mounted
Speeds: 4 speeds
Control Type: Speed Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 19g Copper Finish
Warranty: 3 Year Warranty (Parts only)
16.375"
