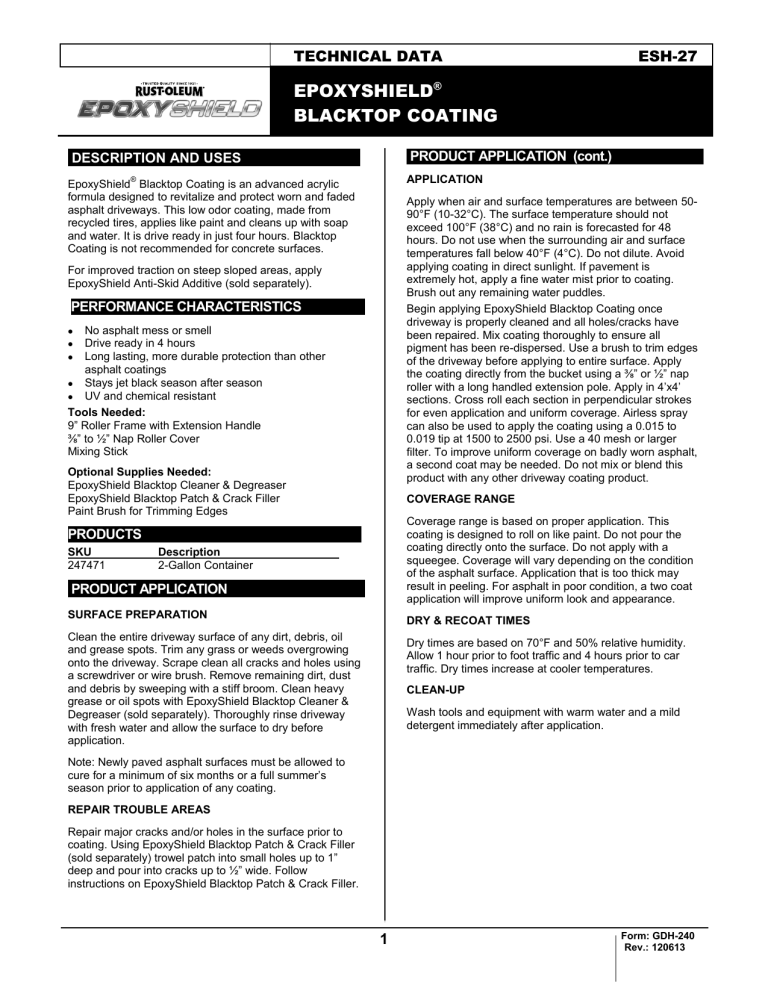

TECHNICAL DATA
ESH-27
EPOXYSHIELD®
BLACKTOP COATING
.DESCRIPTION AND USES
PRODUCT APPLICATION (cont.)
.
APPLICATION
EpoxyShield® Blacktop Coating is an advanced acrylic
formula designed to revitalize and protect worn and faded
asphalt driveways. This low odor coating, made from
recycled tires, applies like paint and cleans up with soap
and water. It is drive ready in just four hours. Blacktop
Coating is not recommended for concrete surfaces.
Apply when air and surface temperatures are between 5090°F (10-32°C). The surface temperature should not
exceed 100°F (38°C) and no rain is forecasted for 48
hours. Do not use when the surrounding air and surface
temperatures fall below 40°F (4°C). Do not dilute. Avoid
applying coating in direct sunlight. If pavement is
extremely hot, apply a fine water mist prior to coating.
Brush out any remaining water puddles.
Begin applying EpoxyShield Blacktop Coating once
driveway is properly cleaned and all holes/cracks have
been repaired. Mix coating thoroughly to ensure all
pigment has been re-dispersed. Use a brush to trim edges
of the driveway before applying to entire surface. Apply
the coating directly from the bucket using a ⅜” or ½” nap
roller with a long handled extension pole. Apply in 4’x4’
sections. Cross roll each section in perpendicular strokes
for even application and uniform coverage. Airless spray
can also be used to apply the coating using a 0.015 to
0.019 tip at 1500 to 2500 psi. Use a 40 mesh or larger
filter. To improve uniform coverage on badly worn asphalt,
a second coat may be needed. Do not mix or blend this
product with any other driveway coating product.
For improved traction on steep sloped areas, apply
EpoxyShield Anti-Skid Additive (sold separately).
PERFORMANCE CHARACTERISTICS
.



No asphalt mess or smell
Drive ready in 4 hours
Long lasting, more durable protection than other
asphalt coatings
 Stays jet black season after season
 UV and chemical resistant
Tools Needed:
9” Roller Frame with Extension Handle
⅜” to ½” Nap Roller Cover
Mixing Stick
Optional Supplies Needed:
EpoxyShield Blacktop Cleaner & Degreaser
EpoxyShield Blacktop Patch & Crack Filler
Paint Brush for Trimming Edges
PRODUCTS
SKU
247471
.
COVERAGE RANGE
Coverage range is based on proper application. This
coating is designed to roll on like paint. Do not pour the
coating directly onto the surface. Do not apply with a
squeegee. Coverage will vary depending on the condition
of the asphalt surface. Application that is too thick may
result in peeling. For asphalt in poor condition, a two coat
application will improve uniform look and appearance.
.
Description
2-Gallon Container
.PRODUCT APPLICATION
.
SURFACE PREPARATION
DRY & RECOAT TIMES
Clean the entire driveway surface of any dirt, debris, oil
and grease spots. Trim any grass or weeds overgrowing
onto the driveway. Scrape clean all cracks and holes using
a screwdriver or wire brush. Remove remaining dirt, dust
and debris by sweeping with a stiff broom. Clean heavy
grease or oil spots with EpoxyShield Blacktop Cleaner &
Degreaser (sold separately). Thoroughly rinse driveway
with fresh water and allow the surface to dry before
application.
Dry times are based on 70°F and 50% relative humidity.
Allow 1 hour prior to foot traffic and 4 hours prior to car
traffic. Dry times increase at cooler temperatures.
CLEAN-UP
Wash tools and equipment with warm water and a mild
detergent immediately after application.
Note: Newly paved asphalt surfaces must be allowed to
cure for a minimum of six months or a full summer’s
season prior to application of any coating.
REPAIR TROUBLE AREAS
Repair major cracks and/or holes in the surface prior to
coating. Using EpoxyShield Blacktop Patch & Crack Filler
(sold separately) trowel patch into small holes up to 1”
deep and pour into cracks up to ½” wide. Follow
instructions on EpoxyShield Blacktop Patch & Crack Filler.
1
Form: GDH-240
Rev.: 120613
TECHNICAL DATA
EPOXYSHIELD® BLACKTOP COATING
.PHYSICAL PROPERTIES
.
BLACKTOP COATING
Resin Type
Vinyl Acrylic
Pigment Type
Carbon Black Dispersion
Solvents
Weight
Solids
Water
Per Gallon
11.05 lbs.
Per Liter
1.32 kg
By Weight
54.7%
By Volume
39.5%
Volatile Organic Compounds
<50 g/l
(0.42 lbs./gal.)
Theoretical Coverage at
1 mil DFT (25µ)
633 sq.ft./gal.
(15.6 m2/l)
Practical Coverage at
Recommended DFT (assume 15%
material loss)
Dry Times at 70°F
Walk Ready
(21ºC) and 50%
Drive Ready
Relative Humidity
Shelf Life
Flash Point
400-600 sq.ft./ bucket
(9.8-14.8m2/l)
1 hour
4 hours
3 years
>200°F (93°C)
Safety Information
For additional information, see MSDS
The technical data and suggestions for use contained herein are correct to the best of our knowledge, and offered in good faith. The
statements of this literature do not constitute a warranty, express, or implied, as to the performance of these products. As conditions and use
of our materials are beyond our control, we can guarantee these products only to conform to our standards of quality, and our liability, if any,
will be limited to replacement of defective materials. All technical information is subject to change without notice.
Rust-Oleum Corporation
11 Hawthorn Parkway
Vernon Hills, Illinois 60061
An RPM Company
Phone: 877•385•8155
www.rustoleum.com
Form: GDH-240
Rev.: 120613
