AKDY RH0334 Specification

AKDY RH0334 Specification
Model No.

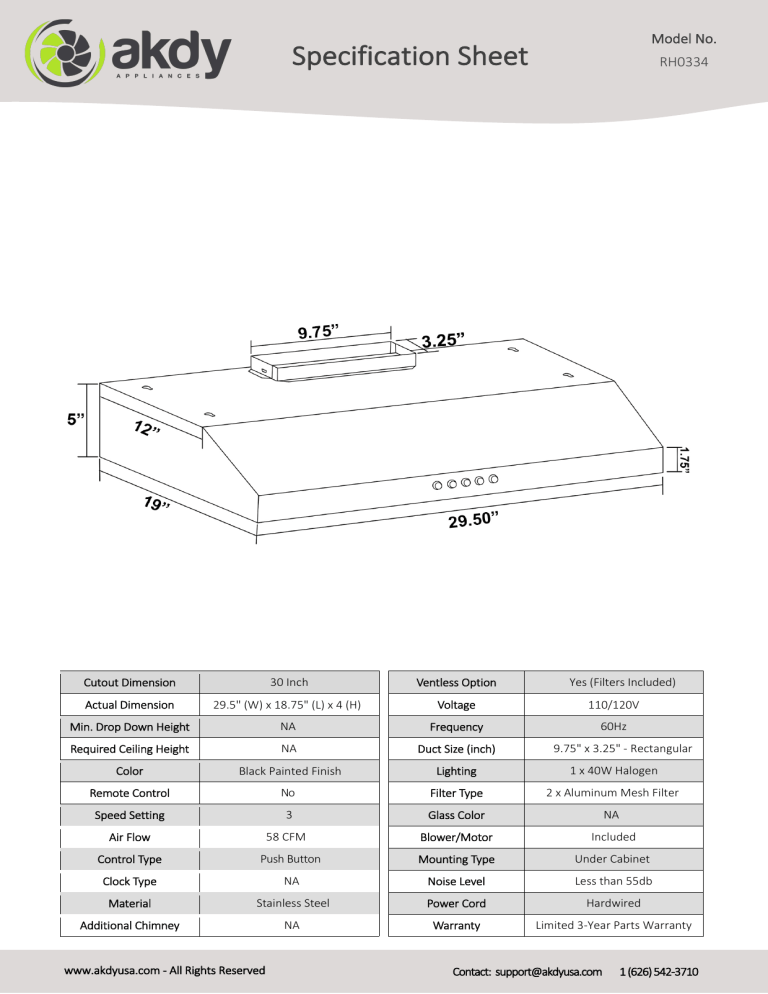

Specification Sheet
RH0334
Yes (Filters Included)
Cutout Dimension
30 Inch
Ventless Option
Actual Dimension
29.5" (W) x 18.75" (L) x 4 (H)
Voltage
110/120V
Min. Drop Down Height
NA
Frequency
60Hz
Required Ceiling Height
NA
Duct Size (inch)
Color
Black Painted Finish
Lighting
1 x 40W Halogen
Remote Control
No
Filter Type
2 x Aluminum Mesh Filter
Speed Setting
3
Glass Color
NA
Air Flow
58 CFM
Blower/Motor
Included
9.75" x 3.25" ‐ Rectangular
Control Type
Push Button
Mounting Type
Under Cabinet
Clock Type
NA
Noise Level
Less than 55db
Material
Stainless Steel
Power Cord
Hardwired
Additional Chimney
NA
Warranty
Limited 3‐Year Parts Warranty
www.akdyusa.com - All Rights Reserved
Contact: [email protected]
1 (626) 542-3710
