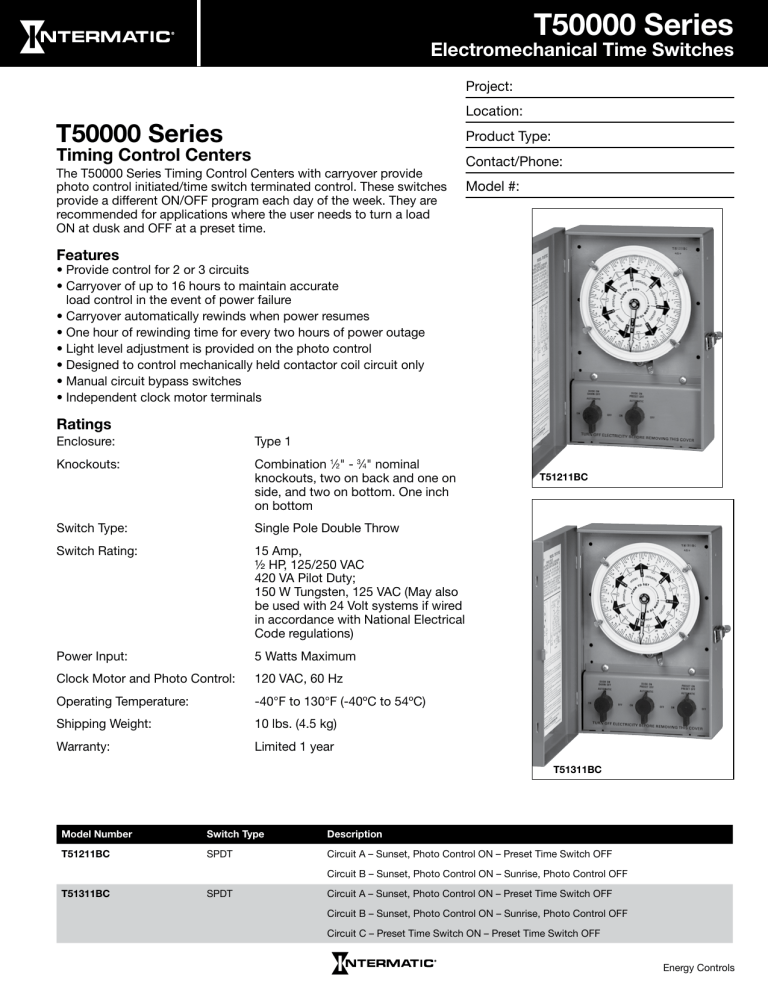

T50000 Series
Electromechanical Time Switches
Project:
Location:
T50000 Series
Product Type:
Timing Control Centers
The T50000 Series Timing Control Centers with carryover provide
photo control initiated/time switch terminated control. These switches
provide a different ON/OFF program each day of the week. They are
recommended for applications where the user needs to turn a load
ON at dusk and OFF at a preset time.
Contact/Phone:
Model #:
Features
• Provide control for 2 or 3 circuits
• Carryover of up to 16 hours to maintain accurate
load control in the event of power failure
• Carryover automatically rewinds when power resumes
• One hour of rewinding time for every two hours of power outage
• Light level adjustment is provided on the photo control
• Designed to control mechanically held contactor coil circuit only
• Manual circuit bypass switches
• Independent clock motor terminals
Ratings
Enclosure:
Type 1
Knockouts:Combination 1⁄2" - 3⁄4" nominal
knockouts, two on back and one on
side, and two on bottom. One inch
on bottom
Switch Type:
T51211BC
Single Pole Double Throw
Switch Rating: 15 Amp,
½ HP, 125/250 VAC
420 VA Pilot Duty;
150 W Tungsten, 125 VAC (May also
be used with 24 Volt systems if wired
in accordance with National Electrical
Code regulations)
Power Input:
5 Watts Maximum
Clock Motor and Photo Control:
120 VAC, 60 Hz
Operating Temperature:
-40°F to 130°F (-40ºC to 54ºC)
Shipping Weight:
10 lbs. (4.5 kg)
Warranty:
Limited 1 year
T51311BC
Model Number
Switch Type
Description
T51211BC
SPDT
Circuit A – Sunset, Photo Control ON – Preset Time Switch OFF
Circuit B – Sunset, Photo Control ON – Sunrise, Photo Control OFF
T51311BC
SPDT
Circuit A – Sunset, Photo Control ON – Preset Time Switch OFF
Circuit B – Sunset, Photo Control ON – Sunrise, Photo Control OFF
Circuit C – Preset Time Switch ON – Preset Time Switch OFF
Energy Controls
T50000 Series
Specification
The time switch shall be a 7-Day dial type that will provide a photo control to turn loads ON/OFF. The time switch shall
turn loads ON/OFF for ____________(2 Circuits)(3 Circuits) on a 7-Day schedule. The time switch shall be powered by
a 125 VAC, 60 Hz power supply. The time switch shall have a synchronous motor designed to withstand a minimum of
6000 volt transients. The time switch motor shall be connected to the terminal strip with ring-type connectors and shall
not require more than 5 watts to operate. The time switch mechanism shall be mounted in a Type 1 lockable steel
enclosure painted with an electrostatic process to eliminate the potential for corrosion. The enclosure shall provide a
non-removable cover, which shall swing open a full 180 degrees. The time switch shall provide a manual override for
each circuit. The time switch shall provide separate terminals for clock motor for switching circuits not on line voltage.
The time switch shall be designed to operate mechanically held contactors and shall have a switch rating of:
• 15 Amp, ½ HP, 125/250 VAC
• 420 VA Pilot Dut
• 150 Watts Tungsten, 125 VAC
The time switch shall contain a spring-wound carryover and shall maintain time control on schedule during power failure
for up to 16 hours. The carryover shall automatically rewind upon power resumption. The time switch shall also provide a
terminal for connection of a 150 Watt load for direct photo control. The photo control shall have a light level adjustment
and shall be sonically welded in weatherproof polymeric housing. The time switch shall have independent clock
terminals, which may also be used with 24 Volt systems if wired in accordance with National Electrical Code regulations.
The time switch shall be agency listed under Clock Operated Switches and shall be Intermatic model _____________(See
Model Numbers Listed).
Diagrams
Time
Switch
Shown
On
Clock
Motor
Auto
Auto
Off
1
2
3
Off
On
5
6
On
Off
Line On
Contactor
Control
Circuit
Auto
On
4
To Circuit C
7
On
Off
8
9
10
Off
Line On
To Circuit A
Line(s)
Com
Close
Open
To Load(s)
120 VAC Input
T51311BC
www.intermatic.com
11
12
Off
To Circuit B
Photo Control
Energy Controls
Relay
Shown
Off
Relay Coil
Line
Line
