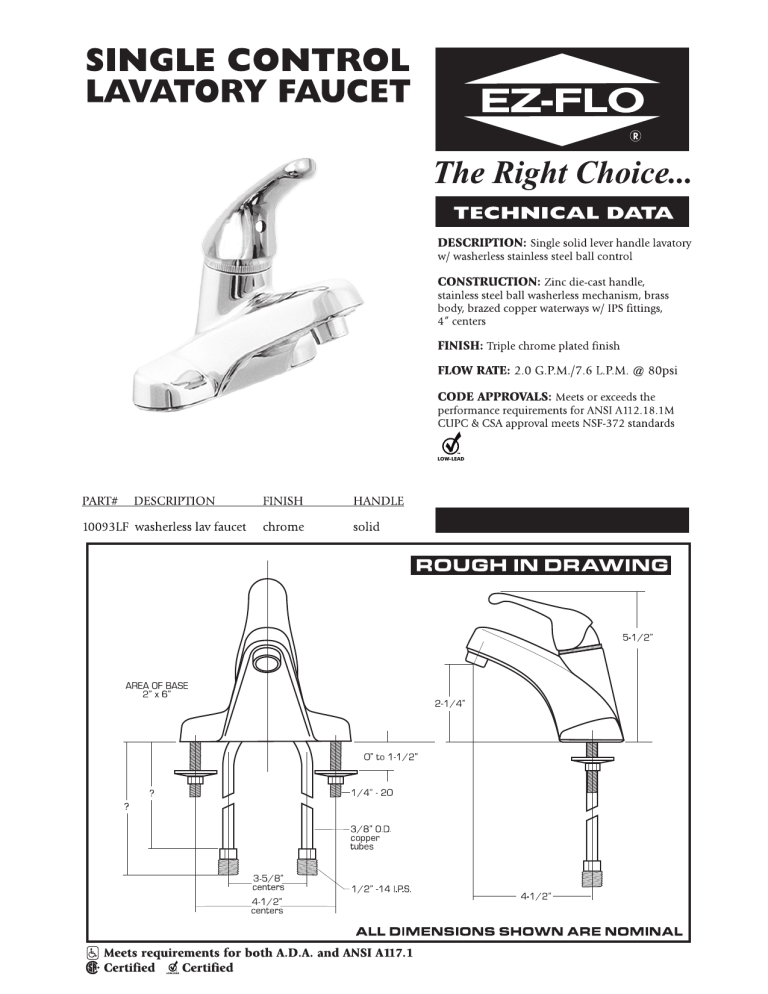

SINGLE CONTROL
LAVATORY FAUCET
The Right Choice...
DESCRIPTION: Single solid lever handle lavatory
w/ washerless stainless steel ball control
CONSTRUCTION: Zinc die-cast handle,
stainless steel ball washerless mechanism, brass
body, brazed copper waterways w/ IPS fittings,
4” centers
FINISH: Triple chrome plated finish
FLOW RATE: 2.0 G.P.M./7.6 L.P.M. (? 80psi
CODE APPROVALS: Meets or exceeds the
performance requirements for ANSI A112.18.1M
CUPC 8 CSA approval meets NSF-372 standards
LOW-LEAD
PART# DESCRIPTION FINISH HANDLE
10093LF washerless lav faucet chrome solid -
ROUGH IN DRAWING
5-1/2"
AREA OF BASE
e"
2-1/4"
0" to 1-1/2”
?
2 A SN
3/8” 0D
copper
a tubes
3-5/8" N
centers 1/2" 141.PS. ;
11/2" | — 4-1/2
centers
ALL DIMENSIONS SHOWN ARE NOMINAL
Meets requirements for both A.D.A. and ANSI A117.1
E Certified Y Certified
