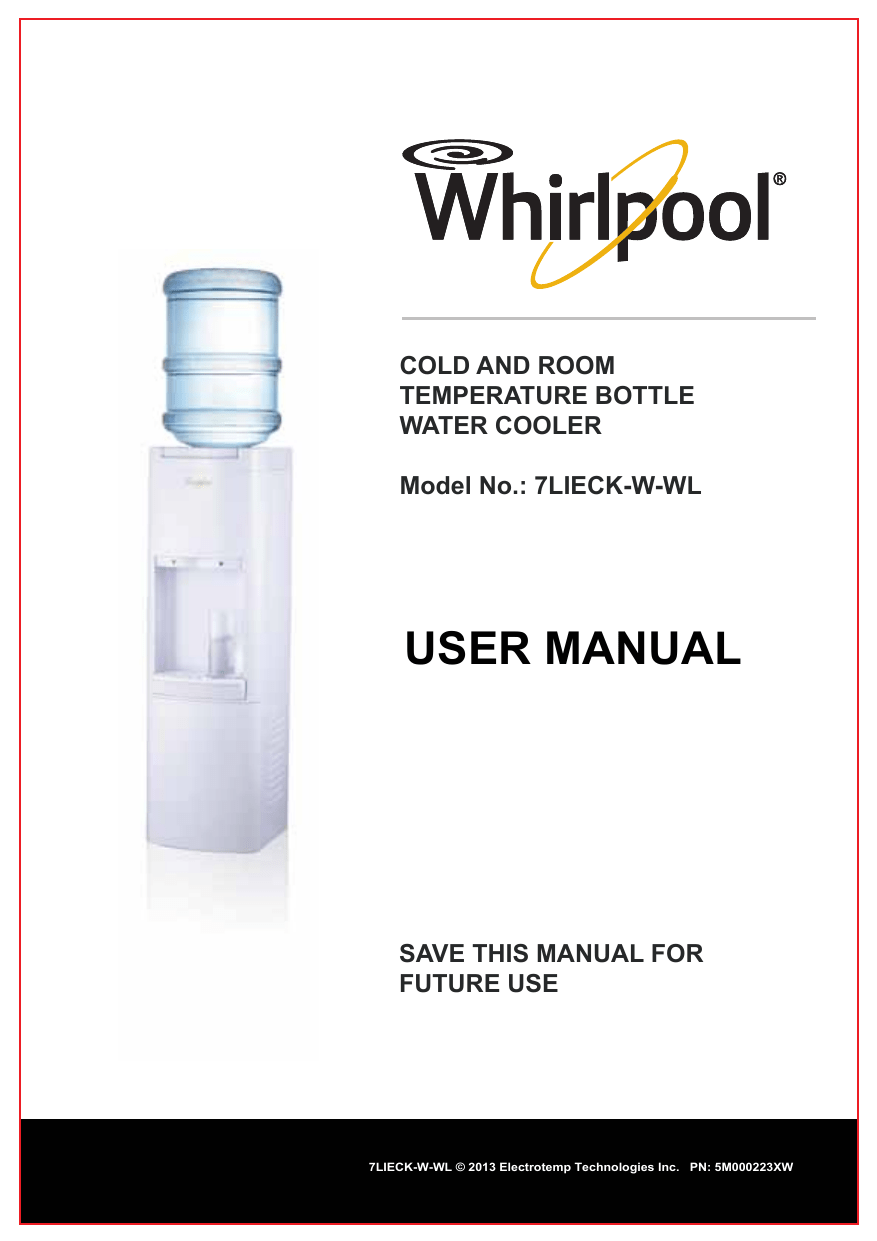

Whirlpool 217LIECK-W-WL Commercial Water Cooler Manual

COLD AND ROOM
TEMPERATURE BOTTLE
WATER COOLER
Model No.: 7LIECK-W-WL
USER MANUAL
SAVE THIS MANUAL FOR
FUTURE USE
7LIECK-W-WL © 2013 Electrotemp Technologies Inc. PN: 5M000223XW
Model # 7LIECK-W-WL: Page 2
SAFETY PRECAUTIONS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and your appliance. Always read and follow all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER”or “WARNING”
These words mean:
DANGER
You can be killed or seriously injured if you don′t immediately
the follow instructions.
WARNING
You can be killed or seriously injured if you don′t follow the
instructions.
All safety instructions will inform you what the potential hazard is, how to reduce the chance of injury, and what
can happen if the instructions are not followed.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth
defects or other reproductive harm.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your water cooler, follow these basic precautions:
■ Plug it into a grounded 3-prong outlet.
■ Replace all the parts and the panels before operating.
■ Do not remove the ground prong.
■ Do not use an extension cord.
■ Do not use an adapter.
■ Two or more people should move and install the water cooler
■ Disconnect the power before servicing.
and the bottles.
SAVE THESE INSTRUCTIONS
When operating this dispenser, please observe the following:
•
Prior to use, this dispenser must be properly assembled and installed in accordance with
this manual.
•
This dispenser is intended only for water dispensing. Do NOT use other liquids. Do NOT
use for other purposes. Never use other liquids in the dispenser other than known and
microbiologically safe bottled water. Warranty is void if used with any other liquids, such
as coffee, tea, juices, beer or wine.
•
Install and use only on a hard, flat and level surface.
•
Do NOT place the dispenser inside an enclosed space or cabinet.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 3
•
Position the back of the dispenser no closer than 4 inches from the wall and permit free
airflow between the wall and the dispenser. There must be at least 4 inches clearance on the
sides of the dispenser to permit airflow.
•
Service should only be performed by a certified technician. Please contact us at
1-855-5WHIRL5 for assistance.
SAFETY PRECAUTIONS ---Electrical Requirements
!
WARNING
Electrical Shock Hazard
Plug into a grounded and properly wired 3-prong outlet.
Do not remove the ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
A 120 volt, 60 Hz., AC only, 15 amp, fused electrical supply is required. A time-delay fuse or circuit
breaker is recommended.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician
determine that the ground path is adequate.
Check with a qualified electrician if you are not sure if the water cooler is properly grounded.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 4
TABLE OF CONTENTS
Safety Precautions
2
Safety Precautions-Electrical Requirements
3
Key Information for Future Use
.
4
5
Specifications
..
Parts & Features
5
6
Assembly
Cleaning prior to initial use
.
Installation
Installing the Correct Bottle Receptacle
.
7
.
8
9
...
Operation
..
10
Proper Care & Cleaning
.
12
Troubleshooting
14
Limited Warranty
15
KEY INFORMATION FOR FUTURE USE
Please register your dispenser immediately at
www.electrotemp.com
For future support, please record your serial number (located on
the label at the back of the dispenser) and purchase date. Staple
your receipt to the manual.
You will need this information to obtain warranty service.
Product
Cold and Room Temperature
Bottled Water Cooler
Model Number
7LIECK-W-WL
Serial ID Number
Date of Purchase
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 5
SPECIFICATIONS
Power Supply
Refrigerant Type
1.5 Amp
R-134A
Cold Water Power
100 Watts
Cold Capacity / Hour
4 L / 1.05 Gallon
Cold Temp Range
3°C - 10°C / 37.4°F - 50°F
Dimensions
91.3 H × 27.5 W × 28.6 D(cm)
35.9 H × 10.8 W × 11.3 D (inch)
25.4 Ibs / 11.5 Kg
Net Weight
PARTS & FEATURES
Bottle Probe
1
Room Temp. Water Control
2
Cold Water Control
3
Room Temp. Water Control
4
Cold Water Tap
5
Drip Tray
6
Cooling Thermostat
7
Power Cord
8
Carry Handle
9
1
3
2
8
4
5
9
6
The wall mount strap and the
7
collar for plain, capped bottles
are not shown.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 6
ASSEMBLY
1. Remove the dispenser from packaging.
2. Lay the dispenser on its back.
3. Place the cooler in an upright position. Unpack the
drip tray and insert it into the dispenser.
4. Properly dispose of all the packaging.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 7
CLEANING PRIOR TO INITIAL USE
To remove any odors or dust that may have accumulated during shipment, you
must clean the dispenser prior to first use.
DO NOT PLUG THE COOLER INTO AN ELECTRICAL POWER OUTLET
Time Required: 40 minutes.
1. Remove the bottle receptacle by turning it counterclockwise
and pulling up. Store in a safe place.
2. Remove the plastic baffle from inside the reservoir. Clean
with warm soapy water, rinse, then store in a safe place.
3. Fill the reservoir with a mixture of 1 gallon tap water and 2
tablespoons of unscented household bleach.
4. Let sit for 30 minutes.
5. Remove the cleaning mixture from the reservoirs by dispensing the mixture from both taps
into a pitcher.
6. Wipe the inside of the reservoir with a soft cloth.
7. Fill the reservoir with 1 gallon tap water.
8. Remove the water from the reservoir by dispensing it from both taps into a pitcher.
9. Replace all parts.
10. Complete the installation and follow the operation instructions indicated in this manual.
11. Repeat rinsing cycle if chlorine taste persist.
If your water has an off-taste, do not return the dispenser to the store. Call 1-855-5WHIRL5
for assistance.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
INSTALLATION
Model # 7LIECK-W-WL: Page 8
1. Put the dispenser upright.
2. Place the dispenser on a hard and level surface in a cool
shaded location near a grounded wall outlet.
Notice: Do NOT plug in the power cord yet.
3. Position the dispenser so that the back is at least 4 inches
from the wall and there are at least 4 inches of clearance on
both sides.
4. Install the Wall Mount Strap to prevent accidental tip over:
•
Unclip the strap from the back of dispenser.
•
Mount the strap 25 inches up from the floor directly to
the wall stud with a screw (see Illustration A).
If the stud is not available, insert and turn the anchor
directly into the sheet rock using a Philips screwdriver
(DO NOT drill a hole into the sheet rock first when using
this anchor). Secure the strap by installing a screw
through the washer, then the eyelet into the strap, and
into the wall mounted anchor (see Illustration B).
•
Position the cooler in place.
•
Clip the strap onto the back of the cooler to either the
right or left side (see Illustration C).
•
Adjust the length of the strap so that the dispenser
CANNOT move forward.
Note: The dispenser can be positioned in a corner
but it still requires the Wall Mount Strap to be
installed. Lengthen the strap so that once installed,
the dispenser cannot move forward.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 9
INSTALLING THE CORRECT BOTTLE RECEPTACLE
If your water bottle
looks like this
Then use this
bottle receptacle
This model comes with a Probe Receptacle (1). No changes are required. The probe
will push the plug out of the way when you place the bottle into the receptacle.
If your water bottle
looks like this
Then use this
bottle receptacle
1. Remove the bottle receptacle (1) by turning it
counterclockwise and pulling it up.
2. Remove the collar (2) from the foam packaging or bag in the front of the dispenser.
3. Align the tabs.
4. Turn clockwise to secure.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 10
OPERATION
!IMPORTANT
This unit is intended for water dispensing only. Do NOT use other liquids. Do NOT
use for other purposes. Warranty is void if used with any other liquids such as
coffee, tea, juices, beer or wine.
This dispenser has been designed to use water bottles with a 3 or 5 gallon capacity. Do NOT use alternative bottles.
Initial Set Up
Notice: To prevent damage to the compressor, allow the unit to sit upright for at least 4 hours prior
to operation.
1. Remove the tamper seal from the bottle cap. Do NOT remove the plastic cap.
2. Clean the bottle cap and neck using a soft cloth and warm soapy water, then rinse afterwards.
WARNING
Excessive Weight Hazard
Ask two or more people to move and install the
water cooler and the bottles.
Failure to do so can result in back or other injury.
3. Lift the bottle and insert onto the probe. Apply slight pressure until the plug inside the cap
pushes in and the bottle is seated. Water will begin to flow into the reservoirs, causing air
bubbles to form in the bottle.
WARNING
Electrical shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove the ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
4. Plug the cord into a properly grounded wall outlet.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 11
Initial Rinsing of Water Lines
This unit has been tested and sanitized prior to packing and shipping. During transit, dust and odors
can accumulate in the tank and lines. You must dispense and dispose at least one quart of water prior
to drinking any water dispensed from this unit.
Dispensing Cold Water
Note: After setup, it will take 1.5 hours to get the water to its maximum cold temperature. During this
time, the compressor will run continuously. This is normal.
1. Position the bottle, glass, pitcher, or cooking pot securely below the cold water tap.
- The circular shapes in the drip plate help align the flow of water. This unit dispenses water at a
fast rate. To avoid splashes, hold the cup as close to the tap as possible.
2. Press the cold water control downward to start dispensing water.
3. Release the cold water control once the desired fill level is achieved
Replacing an Empty Bottle
Notice: Replace the bottle as soon as you notice that it is empty.
1. Lift the bottle straight up to disengage it from the bottle probe.
WARNING
Excessive Weight Hazard
Ask two or more people to move and install the
water cooler and the bottles.
Failure to do so can result in back or other injury.
2. Remove the tamper seal from the top of bottle cap of the fresh bottle. Do NOT remove the plastic
cap.
3. Lift the bottle and insert it onto the probe. Apply slight pressure until the plug inside the cap
pushes in and the bottle is seated. Water will begin to flow into the reservoirs, causing air bubbles
in the bottle
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 12
PROPER CARE & CLEANING
General Cleaning
Perform: As needed
Time Required: 5 minutes.
Note: Do NOT use abrasive materials or chemical cleaners.
1. Clean the cabinet surfaces using a soft cloth and warm soapy water, then rinse.
2. Wipe dust at the back of dispenser to improve efficiency.
3. Remove the drip tray assembly by pulling it forward. Remove the cover. Place the tray and
cover in the dishwasher or wipe the parts clean using a soft cloth and warm soapy water.
Cleaning the Cold Reservoir and Water Lines
Perform: Every 3 months or whenever an off-taste occurs.
Time Required: 15 minutes.
Note: Best to do prior to loading a fresh bottle.
1. Unplug the power cord from the wall outlet.
WARNING
Excessive Weight Hazard
Ask two or more people to move and install the
water cooler and the bottles.
Failure to do so can result in back or other injury.
2. Remove the water bottle.
3. Remove the bottle receptacle by turning it counterclockwise and pulling it up. Store it in a
safe place.
4. Remove the plastic baffle from inside reservoir. Clean it using warm soapy water, rinse, then
store it in a safe place.
5. Fill the reservoir with a mixture of 1 gallon tap water and 2 tablespoons of unscented
household bleach.
6. Let it sit for 30 minutes.
7. Remove the cleaning mixture from reservoirs by dispensing it from both taps into a pitcher.
8. Wipe the inside of reservoir with a soft cloth.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 13
9. Fill the reservoir with 1 gallon tap water.
10. Remove the water from the reservoir by dispensing it from both taps into a pitcher.
11. Replace all parts.
WARNING
Excessive Weight Hazard
Ask two or more people to move and install the
water cooler and the bottles.
Failure to do so can result in back or other injury.
12. Install a fresh bottle of water after cleaning the bottle cap and neck area.
WARNING
Electrical shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove the ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
13. Repeat rinsing cycle if chlorine taste persist.
14. Plug the power cord into a grounded wall outlet.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 14
TROUBLESHOOTING
Dispenser is not operating.
• Make sure that the power cord is properly connected to a working outlet.
Water is leaking.
• Replace water bottle. Most common cause is a cracked bottle.
• Call 1-855-5WHIRL5 for assistance.
Push buttons are stuck and/or faucets are leaking.
• Apply mineral oil (baby oil) to the button slides to reduce friction.
No water is coming from the taps.
• Make sure that the bottle is not empty. If so, replace it.
• Make sure that you fully press the water controls.
Water dispensed is not cold.
• It takes up to 2 hours after setup to dispense coldest water.
• Make sure that the back of the dispenser is at least 4 inches from a wall and that air is free to
flow on all 4 sides of the dispenser.
• Make sure that the tank is not overfilled. Dispense water until bubbles appear in the bottle.
• Adjust the thermostat by turning it clockwise. Adjust in a single increment of 30 degrees of a
circle (the equivalent of 1 hour on a standard analog clock face). Wait 1 hour for the result. If
unsatisfactory, adjust another 30 degrees clockwise, wait, and then assess results. The
thermostat is located at back of unit.
Dispenser is noisy.
• Make sure that the dispenser is positioned on a level surface.
Water tastes bad.
• Drain the water from the reservoirs and replace the bottle with a fresh one.
• Clean dispenser per Proper Care & Cleaning instructions.
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
Model # 7LIECK-W-WL: Page 15
LIMITED WARRANTY
Electrotemp Technologies Inc., (“Vendor”) warrants to the original purchaser of this dispenser, and
to no other person, that if this dispenser is assembled and operated in accordance with the printed
instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in
such dispenser shall be free from defects in material and workmanship. Vendor may require
reasonable proof of your date of purchase from an authorized retailer or distributor. Therefore, you
should retain your sales slip or invoice. The Limited Warranty shall be limited to repair or
replacement of parts, which prove defective under normal use and service and which Vendor shall
determine in its reasonable discretion upon examination to be defective. Before returning any parts,
you should contact Vendor’s Customer Service Department using the contact information listed
below. If Vendor confirms, after examination, a defect covered by this Limited Warranty in any
returned part, and if Vendor approves claim, Vendor will replace such defective part without charge.
If you return defective parts, transportation charges must be prepaid by you. Vendor will return
replacement parts to original purchaser, freight or postage prepaid.
The Limited Warranty does not cover any failures or operating difficulties due to accident, abuse,
misuse, alteration, misapplication, improper installation or improper maintenance or service by you
or any third party, or failure to perform normal and routine maintenance on the dispenser, as set out
in the User’s Manual. In addition, the Limited Warranty does not cover damages to the finish, such
as scratches, dents, discoloration or rust after purchase.
The Limited Warranty is in lieu of all other express warranties. Vendor disclaims all warranties for
products that are purchased from seller other than authorized retailers or distributors. AFTER THE
PERIOD OF THE ONE (1) YEAR EXPRESS WARRANTY, VENDOR DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. FURTHER, VENDOR
SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR
ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTAL DAMAGES. Vendor
assumes no responsibility for any defects caused by third parties. This Limited Warranty gives the
purchaser specific legal rights; a purchaser may have other rights depending upon where he or she
lives. Some jurisdictions do not allow exclusion or limitation of special, incidental or consequential
damages, or limitations on how long a warranty lasts, so the above exclusion and limitations may
not apply to you.
Warranty is void if the electrical outlet is improperly wired to incorrectly sized circuit breaker or fuse,
if not grounded properly, or wires do not have correct polarity.
Use of this cooler confirms Purchasers agreement with the conditions of this warranty.
Electrotemp Technologies Inc.
406 Watline Avenue
Mississauga, Ontario, Canada, L4Z-1X2
888-828-1426
www.electrotemp.com
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 1-855-5WHIRL5 for assistance.
® TM © 2013 Whirlpool. All rights reserved.
Manufactured under license by
Electrotemp Technologies Inc., Mississauga, ON.
Warranty provided by manufacturer.
名称：说明书7LIECK-W-WL-English
图号：5M000223XW
技术要求：
１、尺寸：143×210mm
２、单色印刷
３、产品符合RoHS要求
４、批量生产前一定要样品确认，
不得擅自更改图纸。
设计：
品质审核：
工程审核：
批准：
业务审核：

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
