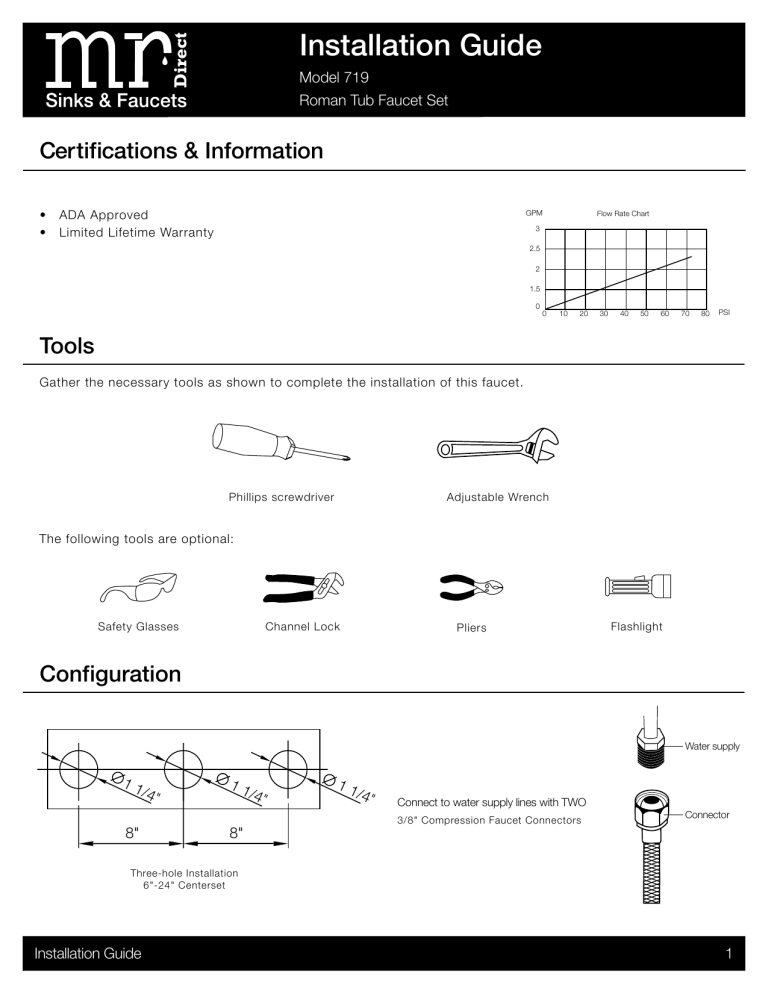

Installation Guide
Model 719
Roman Tub Faucet Set
Certifications & Information
•
•
ADA Approved
Limited Lifetime Warranty
GPM
Flow Rate Chart
3
2.5
2
1.5
0
0
10
20
30
40
50
60
70
80
PSI
Tools
Gather the necessary tools as shown to complete the installation of this faucet.
Phillips screwdriver
Adjustable Wrench
The following tools are optional:
Safety Glasses
Channel Lock
Pliers
Flashlight
Configuration
Water supply
11
/4"
SirFaucet
8"
11
/4"
8"
11
/4"
Connect to water supply lines with TWO
3/8" Compression Faucet Connectors
Connector
Three-hole Installation
6"-24" Centerset
Installation Guide
1
Installation Guide
Faucet Installation
A. Turn off the water supply. Remove the
faucet and faucet handles with the mounting
hardware attached from the package.
A
B
handle
cover
B. Insert a phillips head screw driver into the
faucet handle body removing the set screw.
Separating the valve body from the handle
body.
set screw
handle body
shank
lock nut
faucet base
valve body
C. From the underside of the sink or
mounting surface, attach the gasket and
washer, followed by the lock nut, onto
the shank. Insert the shank of the faucet
handle body into the hole of the sink
deck.
D
C
handle base
D. Lower the faucet base into the mounting
surface followed by the faucet handle.
Using a phillips screw drive tighten the
set screw until secure. Replace the
handle cover.
Repeat the above steps for the second
faucet handle.
E. Remove all mounting hardware from the
faucet shank. Lower the faucet shank into
the mounting surface.
F. From the underside of the sink or mounting
surface, attach the washer, followed by the
lock nut, onto the shank. Tighten the lock
nut until secure.
2
E
F
Installation Guide
Faucet Installation Continued
G. Ensure that the o-ring is properly secured in
the tee fitting before attaching.
G
Tighten the tee fitting on to faucet shank.
Secure all fittings with a 1/4 turn of a
wrench.
o-ring
tee fitting
H. Attach the hot and cold supply lines to the
Tee fitting at the faucet base.
H
Attach the opposite end of each hose to
the corresponding valve body fittings by
tightening the 3/8" compression fittings onto
the lines. Secure all fittings with a 1/4 turn of
a wrench.
I. Secure water line connections to each
corresponding faucet handle shank base.
Secure all fittings with a 1/4 turn of a wrench.
2
1
I
3
www.mrdirectint.com
[email protected]
1-877-946-5725
Important
Turn on the water supply SLOWLY, to test for leaks
before completely opening the water lines.
To prevent damage to the tube body, tighten the connections by carefully using two
wrenches as shown. Use caution to not bend the stem.
Check for leaks.
Cleaning Information
Simply rinse and dry faucets with a soft towel every week to prevent mineral deposits from forming. Clean spills and
splatters as they happen. Do not let soap, toothpaste or other contaminates dry on the faucet, this can stain or pit the
finish. Use a mild soap and soft sponge or towel to remove residue. Rinse and dry thoroughly.
Never use an abrasive cleaner or rough sponge to clean or dry your faucet. Harsh cleaners could dull or
scratch the finish. Use only a soft disinfectant that does not contain bleach or chlorine and apply with a soft
towel.
Warranty Information
MR Direct warrants to the original consumer purchaser that our sinks and faucets will be free from defects in
material and workmanship under normal use for the lifetime of the product. MR Direct may elect to repair or replace
any defective MR Direct product covered by our warranty.
Notes
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental conditions,
improper installation, storage and handling; nor any labor expenses.
From time to time we will change design specifications and materials as conditions require and improvements are
developed. We have no obligation to incorporate such changes in products we previously manufactured.
This warranty is in lieu of any and all other warranties, express or implied, including any warranties of
merchantability and of fitness for a particular purpose; and excludes any incidental or consequential damages.
No representative has the authority to change or enlarge the above warranty.
This warranty is only valid in the United States of America. Some states do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations
or exclusion may not apply. This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
One-Year Accessory Warranty
MR Direct warrants to the original purchaser that all of our accessories will be free from defects in material and
workmanship under normal use for one full year.
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental conditions,
improper installation, storage and handling; nor any labor expenses. MR Direct may elect to repair or replace any
defective MR Direct accessory covered by our warranty.
Installation Guide
4
