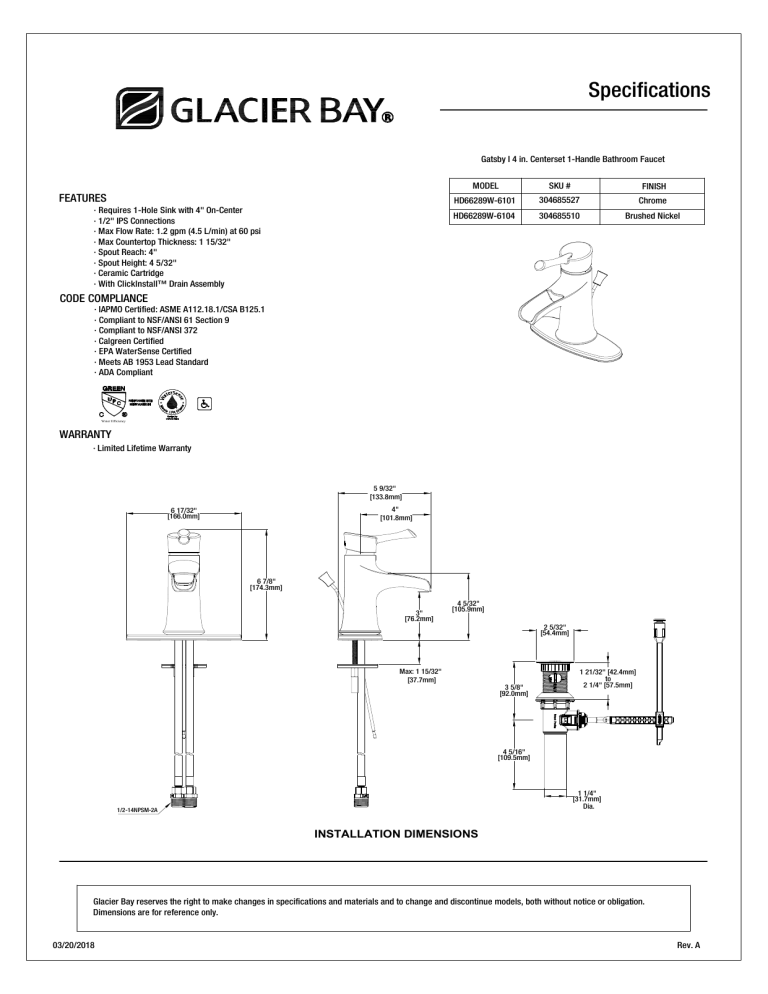

Glacier Bay HD66289W-6104 Specification

Glacier Bay HD66289W-6104 Specification
Specifications
Gatsby I 4 in. Centerset 1-Handle Bathroom Faucet
FEATURES
· Requires 1-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 15/32"
· Spout Reach: 4"
· Spout Height: 4 5/32"
· Ceramic Cartridge
· With ClickInstallâ„¢ Drain Assembly
MODEL
SKU #
FINISH
HD66289W-6101
304685527
Chrome
HD66289W-6104
304685510
Brushed Nickel
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
5 9/32"
[133.8mm]
4"
[101.8mm]
6 17/32"
[166.0mm]
6 7/8"
[174.3mm]
3"
[76.2mm]
4 5/32"
[105.9mm]
2 5/32"
[54.4mm]
Max: 1 15/32"
[37.7mm]
3 5/8"
[92.0mm]
1 21/32" [42.4mm]
to
2 1/4" [57.5mm]
4 5/16"
[109.5mm]
1 1/4"
[31.7mm]
Dia.
1/2-14NPSM-2A
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
03/20/2018
Rev. A
