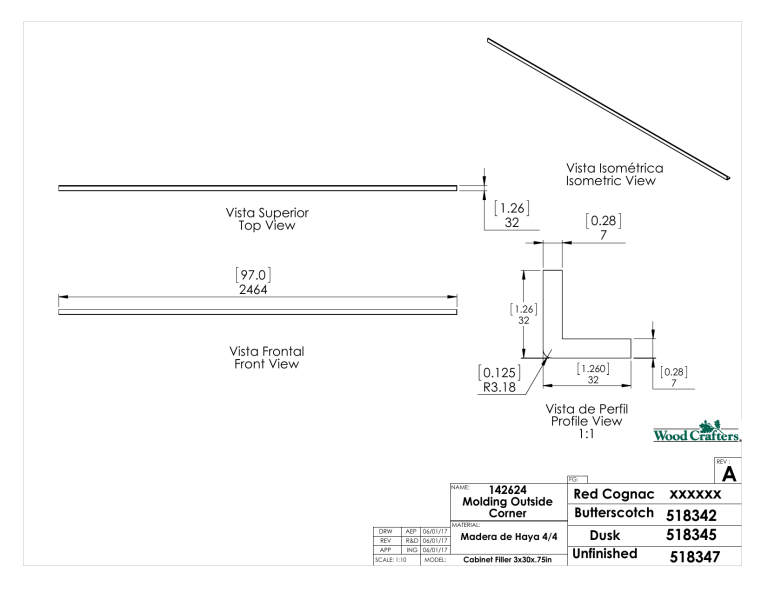

Vista Isométrica
Isometric View
1.26
32
Vista Superior
Top View
0.28
7
97.0
2464
1.26
32
Vista Frontal
Front View
1.260
32
0.125
R3.18
0.28
7
Vista de Perfil
Profile View
1:1
REV :
142624
Molding Outside
Corner
NAME:
DRW
AEP
REV
R&D 06/01/17
APP
ING 06/01/17
SCALE: 1:10
06/01/17
MODEL:
MATERIAL:
Madera de Haya 4/4
Cabinet Filler 3x30x.75in
FG:
Red Cognac xxxxxx
Butterscotch 518342
Dusk
518345
Unfinished
518347
A
