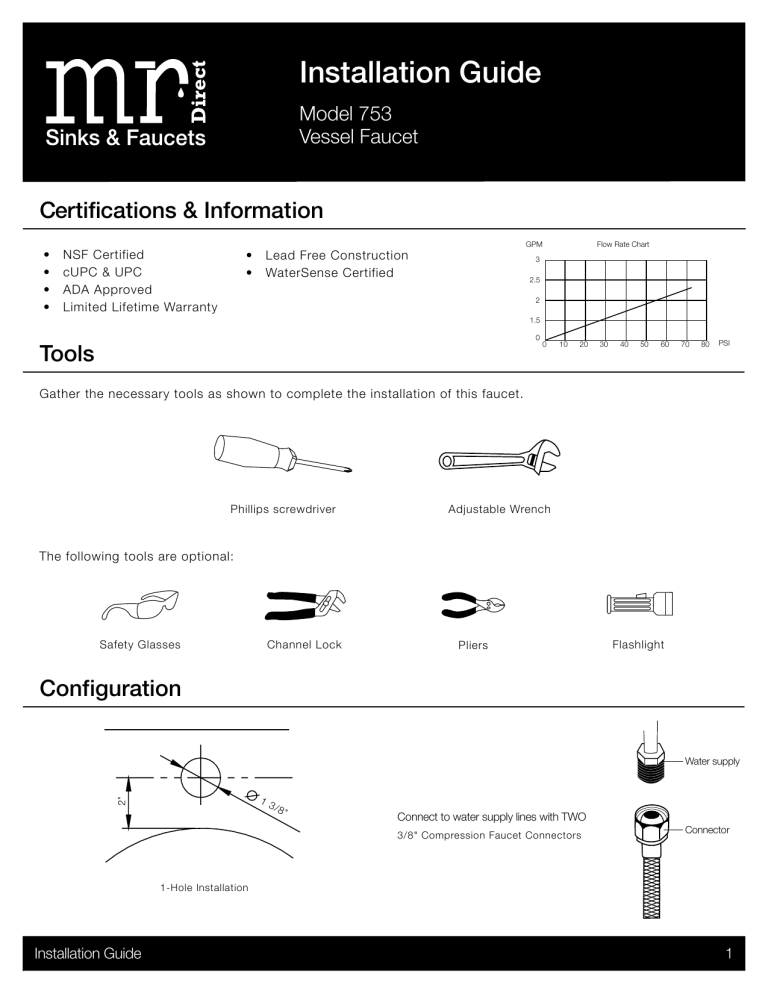

Installation Guide
Model 753
Vessel Faucet
Certifications & Information
•
•
•
•
NSF Certified
cUPC & UPC
ADA Approved
Limited Lifetime Warranty
•
•
GPM
Lead Free Construction
WaterSense Certified
Flow Rate Chart
3
2.5
2
1.5
0
Tools
0
10
20
30
40
50
60
70
80
PSI
Gather the necessary tools as shown to complete the installation of this faucet.
Phillips screwdriver
Adjustable Wrench
The following tools are optional:
Safety Glasses
Channel Lock
Pliers
Flashlight
Configuration
Water supply
2"
13
/8
"
Connect to water supply lines with TWO
3/8" Compression Faucet Connectors
SirFaucetSirFaucet
Connector
1-Hole Installation
Installation Guide
1
Installation Guide
Faucet Installation
A. Turn off the water supply. Remove the
faucet with the mounting hardware attatched from the package.
B. Remove all mounting hardware from
the shank.
A
B
baseplate
gasket
washers
shank
lock nut
mounting
screws
C
D
C. Insert optional base plate if applicable.
Followed by the base plate gasket.
D. Insert the shank of the faucet body into
the hole of the sink deck.
baseplate
gasket
E
E. From the underside of the sink or mounting
surface, attach the gasket and washer,
followed by the lock nut, onto the shank.
F. Tighten screws using a phillips head
screwdriver until secure.
G. Attach the opposite end of each hose
to the corresponding water supply lines
by tightening the 3/8" compression fittings
onto the lines. Secure all fittings with a 1/4
turn of a wrench.
2
G
sink deck
F
Installation Guide
Pop-Up Drain Installation
A. Remove pop-up drain stopper (6), and flange (7) with
top rubber washer (8) from the pop-up assembly.
7
B. Insert drain body (9) from underneath of sink drain hole.
Replace flange (7) and top rubber washer (8) back to drain body (9). Tighten flange securely.
6
8
7
C. Slide the bottom rubber washer (10) back on the drain
pipe, up to and against the bottom of the sink. Tighten the
washer (11) and the lock nut (12) firmly against the base
to form a tight seal.
10
9
9
D. Replace pop-up drain stopper (6) into the drain body (9)
with o-ring (10) in place, and align the hole in the stopper
with the guide rod opening.
11
10
12
E. Remove the rod guide nut (11) and rod ball rubber
gasket (12).
F. Insert rod ball assembly (13) into the drain body (9)
and through the hole in the drain stopper (14).
15
G. Replace the rod guide nut (11) and the rod ball
rubber gasket (12) and tighten securely.
H. Insert pop-up stem (15) through the hole in the faucet
body (16). Connect rod ball assembly (13) to the lift rod (18)
using the spring clip (17) to hold and adjust.
I. Attach the lift rod (18) to the pop-up stem (15) by inserting
the stem through the hole in the lift rod (20). Then, adjust the
pop-up stem (15) to the correct height and hand-tighten the
lift rod screw (19).
16
14
19
13
12 11
20
13
18
17
Important
Turn on the water supply SLOWLY, to test for leaks
before completely opening the water lines.
Remove the aerator from the end of the faucet by carefully unscrewing it.
Let hot and cold water run through both water lines for at least one minute before
replacing the aerator. This will help to clear any debris in the line,
which could otherwise clog the system.
To prevent damage to the tube body, tighten the connections by carefully using two
wrenches as shown. Use caution to not bend the stem.
Check for leaks.
3
www.mrdirectint.com
[email protected]
1-877-946-5725
Maintenance & Cleaning
The faucet can be cleaned by rinsing with clear water or washing with mild detergents. Dry the faucet with a clean, soft cotton cloth.
CAUTION: do not use any cleaning agents containing acids, abrasives, or other harsh chemicals.
Simply rinse and dry faucets with a soft towel every week to prevent mineral
deposits from forming. Clean spills and splatters as they happen. Do not let
soap, toothpaste or other contaminates dry on the faucet, this can stain or
pit the finish. Use a mild soap and soft sponge or towel to remove residue.
Rinse and dry thoroughly.
Never use an abrasive cleaner or rough sponge to clean or dry your faucet.
Harsh cleaners could dull or scratch the finish. Use only a soft disinfectant
that does not contain bleach or chlorine and apply with a soft towel.
Warranty Information
MR Direct warrants to the original consumer purchaser that our sinks and faucets will be free from defects in material
and workmanship under normal use for the lifetime of the product. MR Direct may elect to repair or replace any
defective MR Direct product covered by our warranty.
Notes
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental conditions,
improper installation, storage and handling; nor any labor expenses.
From time to time we will change design specifications and materials as conditions require and improvements are
developed. We have no obligation to incorporate such changes in products we previously manufactured.
This warranty is in lieu of any and all other warranties, express or implied, including any warranties of merchantability
and of fitness for a particular purpose; and excludes any incidental or consequential damages. No representative has
the authority to change or enlarge the above warranty.
This warranty is only valid in the United States of America. Some states do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or
exclusion may not apply. This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
One-Year Accessory Warranty
MR Direct warrants to the original purchaser that all of our accessories will be free from defects in material and
workmanship under normal use for one full year.
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental conditions,
improper installation, storage and handling; nor any labor expenses. MR Direct may elect to repair or replace any
defective MR Direct accessory covered by our warranty.
Installation Guide
