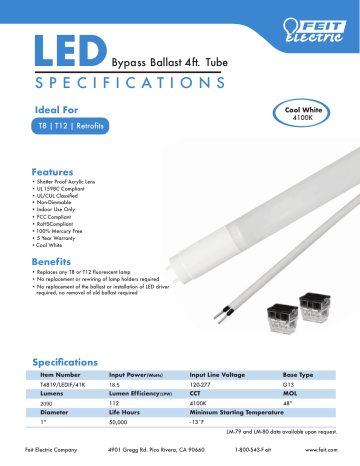

Feit Electric T4819/LEDIF/41K/4 Specification

Feit Electric T4819/LEDIF/41K/4 Specification
LED
Bypass Ballast 4ft. Tube
SP E CIFICAT I ONS
Ideal For
Cool White
4100K
T8 | T12 | Retrofits
Features
•
•
•
•
•
Shatter Proof Acrylic Lens
UL 1598C Compliant
UL/CUL Classified
Non-Dimmable
Indoor Use Only
• FCC Compliant
• RoHSCompliant
• 100% Mercury Free
• 5 Year Warranty
• Cool White
Benef its
• Replaces any T8 or T12 fluorescent lamp
• No replacement or rewiring of lamp holders required
• No replacement of the ballast or installation of LED driver
required, no removal of old ballast required
Specifications
Item Number
Input Power (Watts)
Input Line Voltage
Base Type
T4819/LEDIF/41K
18.5
120-277
G13
Lumens
Lumen Ef f iciency (LPW)
CCT
MOL
2090
112
4100K
48”
Diameter
Life Hours
Minimum Starting Temperature
1”
50,000
- 13˚F
LM-79 and LM-80 data available upon request.
Feit Electric Company
4901 Gregg Rd. Pico Rivera, CA 90660
1-800-543-F eit
www.feit.com
INSTALLATION in a Few Easy Steps
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6A
Step 6B
Step 7
