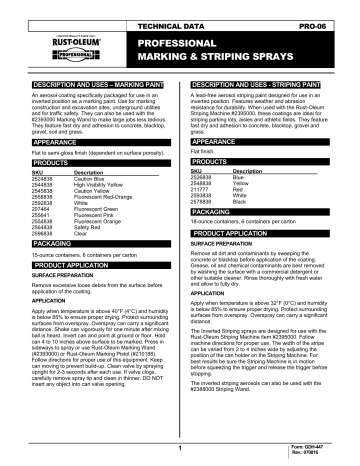

TECHNICAL DATA
PRO-06
PROFESSIONAL
MARKING & STRIPING SPRAYS
.DESCRIPTION AND USES – MARKING PAINT
.DESCRIPTION AND USES - STRIPING PAINT
An aerosol coating specifically packaged for use in an
inverted position as a marking paint. Use for marking
construction and excavation sites, underground utilities
and for traffic safety. They can also be used with the
#2393000 Marking Wand to make large jobs less tedious.
They feature fast dry and adhesion to concrete, blacktop,
gravel, soil and grass.
A lead-free aerosol striping paint designed for use in an
inverted position. Features weather and abrasion
resistance for durability. When used with the Rust-Oleum
Striping Machine #2395000, these coatings are ideal for
striping parking lots, aisles and athletic fields. They feature
fast dry and adhesion to concrete, blacktop, gravel and
grass.
.APPEARANCE
.APPEARANCE
.
Flat finish.
Flat to semi-gloss finish (dependent on surface porosity).
.PRODUCTS
SKU
2524838
2544838
2545838
2558838
2592838
207464
255641
2554838
2564838
2596838
.PRODUCTS
.
SKU
2526838
2548838
211777
2593838
2578838
Description
Caution Blue
High Visibility Yellow
Caution Yellow
Fluorescent Red-Orange
White
Fluorescent Green
Fluorescent Pink
Fluorescent Orange
Safety Red
Clear
.PACKAGING
.
Description
Blue
Yellow
Red
White
Black
.PACKAGING
.
18-ounce containers, 6 containers per carton
..PRODUCT APPLICATION
.
.
SURFACE PREPARATION
Remove all dirt and contaminants by sweeping the
concrete or blacktop before application of the coating.
Grease, oil and chemical contaminants are best removed
by washing the surface with a commercial detergent or
other suitable cleaner. Rinse thoroughly with fresh water
and allow to fully dry.
15-ounce containers, 6 containers per carton
..PRODUCT APPLICATION
.
.
SURFACE PREPARATION
Remove excessive loose debris from the surface before
application of the coating.
APPLICATION
APPLICATION
Apply when temperature is above 32°F (0°C) and humidity
is below 85% to ensure proper drying. Protect surrounding
surfaces from overspray. Overspray can carry a significant
distance.
Apply when temperature is above 40°F (4°C) and humidity
is below 85% to ensure proper drying. Protect surrounding
surfaces from overspray. Overspray can carry a significant
distance. Shake can vigorously for one minute after mixing
ball is heard. Invert can and point at ground or floor. Hold
can 4 to 10 inches above surface to be marked. Press in
sideways to spray or use Rust-Oleum Marking Wand
(#2393000) or Rust-Oleum Marking Pistol (#210188).
Follow directions for proper use of this equipment. Keep
can moving to prevent build-up. Clean valve by spraying
upright for 2-3 seconds after each use. If valve clogs,
carefully remove spray tip and clean in thinner. DO NOT
insert any object into can valve opening.
The Inverted Striping sprays are designed for use with the
Rust-Oleum Striping Machine item #2395000. Follow
machine directions for proper use. The width of the stripe
can be varied from 2 to 4 inches wide by adjusting the
position of the can holder on the Striping Machine. For
best results be sure the Striping Machine is in motion
before squeezing the trigger and release the trigger before
stopping.
The inverted striping aerosols can also be used with the
#2388000 Striping Wand.
1
Form: GDH-447
Rev.: 070816
TECHNICAL DATA
PROFESSIONAL MARKING & STRIPING SPRAYS
PHYSICAL PROPERTIES
.
Resin Type
MARKING
STRIPING
Vinyl Toluene Modified Alkyd
Vinyl Toluene Modified Alkyd
Varies with color
Varies with color
Acetone, N-Butyl Acetate, Toluene,
VM&P Naphtha, Xylene
Acetone, Mineral Spirits, Toluene,
VM&P Naphtha, Xylene
1.1 Max
1.1 Max
15 oz. (426 g)
18 oz. (510 g)
Pigment Type
Solvents
MIR
Fill Weight
Practical Coverage at Recommended DFT
(assumes 15% material loss)
Dry Times at 70-80°F
(21-27°C) and 50%
Relative Humidity
300-350 linear feet (91-106 meters) at
1.5 inch wide (3.8 cm) (coverage is
dependent on surface porosity)
Tack-free
2 inch stripe: 400 feet
2 inch stripe: 300-400 feet (2593838)
4 inch stripe: 200 feet
4 inch stripe: 150-200 feet (2593838)
(coverage is dependent on surface
porosity)
<5 minutes
<10 minutes
—
Anytime
Recoat
Shelf Life
5 years
Flash Point
-156°F (-104°C)
Safety Information
For additional information, see SDS
The technical data and suggestions for use contained herein are correct to the best of our knowledge, and offered in good faith. The statements of this literature
do not constitute a warranty, express, or implied, as to the performance of these products. As conditions and use of our materials are beyond our control, we
can guarantee these products only to conform to our standards of quality, and our liability, if any, will be limited to replacement of defective materials. All
technical information is subject to change without notice.
Rust-Oleum Corporation
11 Hawthorn Parkway
Vernon Hills, Illinois 60061
An RPM Company
Phone: 877•385•8155
www.rustoleum.com/industrial
Form: GDH-447
Rev.: 070816
