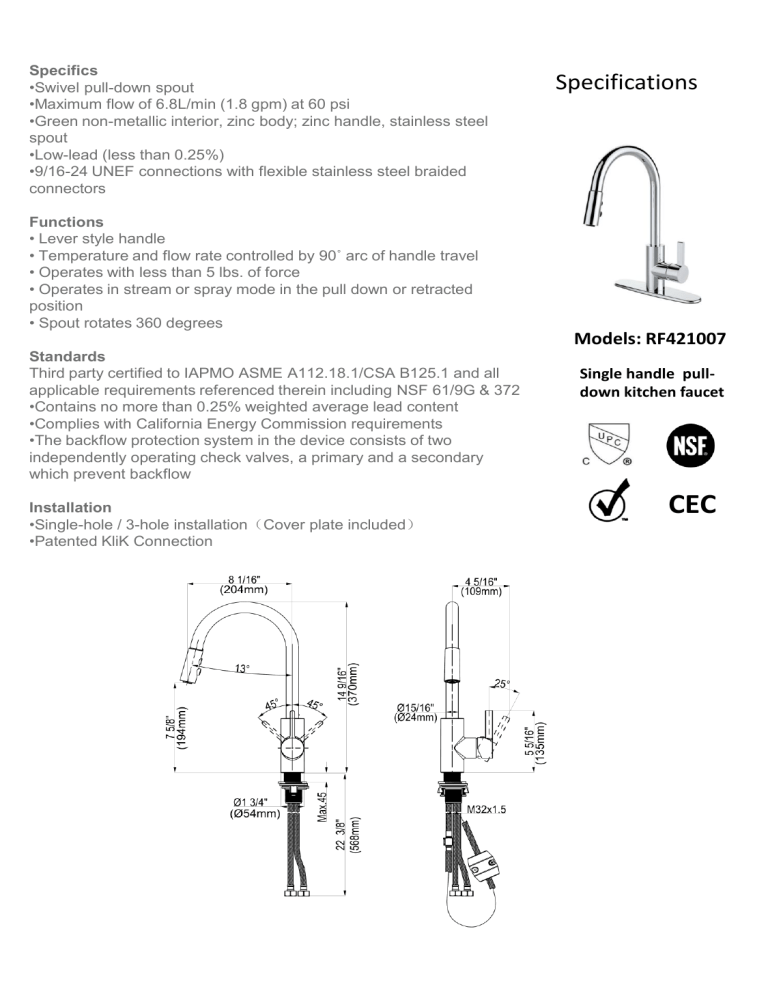

Specifics
•Swivel pull-down spout
•Maximum flow of 6.8L/min (1.8 gpm) at 60 psi
•Green non-metallic interior, zinc body; zinc handle, stainless steel
spout
•Low-lead (less than 0.25%)
•9/16-24 UNEF connections with flexible stainless steel braided
connectors
Specifications
Functions
• Lever style handle
• Temperature and flow rate controlled by 90˚ arc of handle travel
• Operates with less than 5 lbs. of force
• Operates in stream or spray mode in the pull down or retracted
position
• Spout rotates 360 degrees
Models: RF421007
Standards
Third party certified to IAPMO ASME A112.18.1/CSA B125.1 and all
applicable requirements referenced therein including NSF 61/9G & 372
•Contains no more than 0.25% weighted average lead content
•Complies with California Energy Commission requirements
•The backflow protection system in the device consists of two
independently operating check valves, a primary and a secondary
which prevent backflow
Installation
•Single-hole / 3-hole installation(Cover plate included)
•Patented KliK Connection
Single handle pulldown kitchen faucet
CEC
