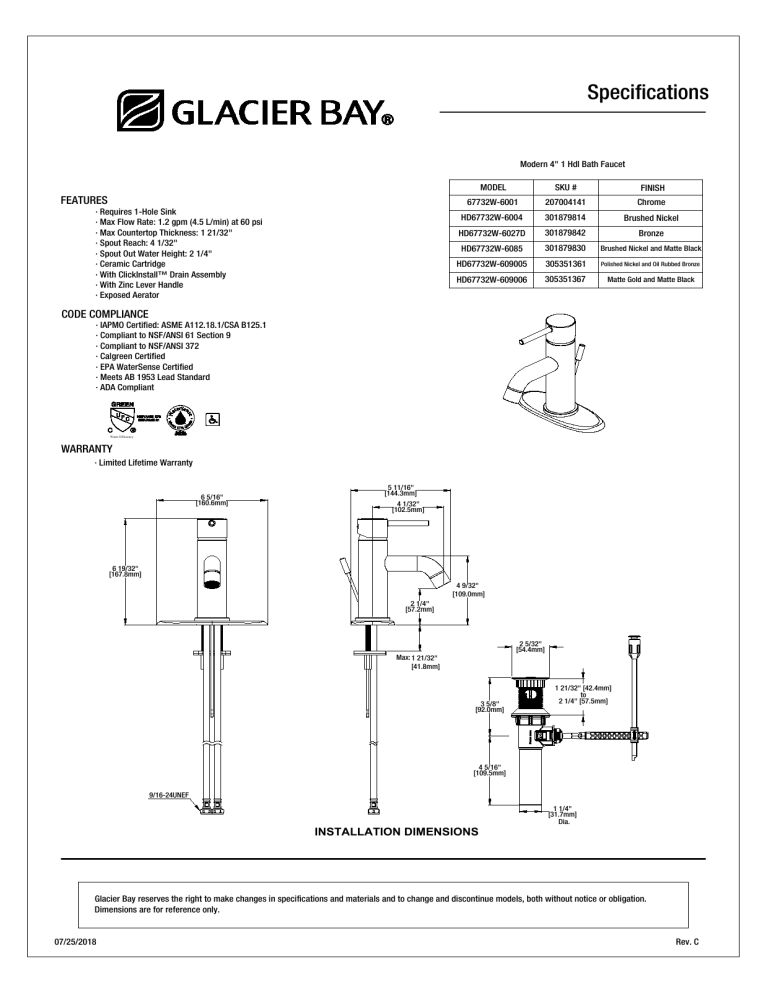

Specifications
Modern 4" 1 Hdl Bath Faucet
FEATURES
· Requires 1-Hole Sink
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 21/32"
· Spout Reach: 4 1/32"
· Spout Out Water Height: 2 1/4"
· Ceramic Cartridge
· With ClickInstall™ Drain Assembly
· With Zinc Lever Handle
· Exposed Aerator
MODEL
SKU #
FINISH
67732W-6001
207004141
Chrome
HD67732W-6004
301879814
Brushed Nickel
HD67732W-6027D
301879842
Bronze
HD67732W-6085
301879830
Brushed Nickel and Matte Black
HD67732W-609005
305351361
Polished Nickel and Oil Rubbed Bronze
HD67732W-609006
305351367
Matte Gold and Matte Black
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
6 5/16"
[160.6mm]
5 11/16"
[144.3mm]
4 1/32"
[102.5mm]
6 19/32"
[167.8mm]
4 9/32"
[109.0mm]
2 1/4"
[57.2mm]
2 5/32"
[54.4mm]
Max: 1 21/32"
[41.8mm]
3 5/8"
[92.0mm]
1 21/32" [42.4mm]
to
2 1/4" [57.5mm]
4 5/16"
[109.5mm]
9/16-24UNEF
INSTALLATION DIMENSIONS
1 1/4"
[31.7mm]
Dia.
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
07/25/2018
Rev. C
