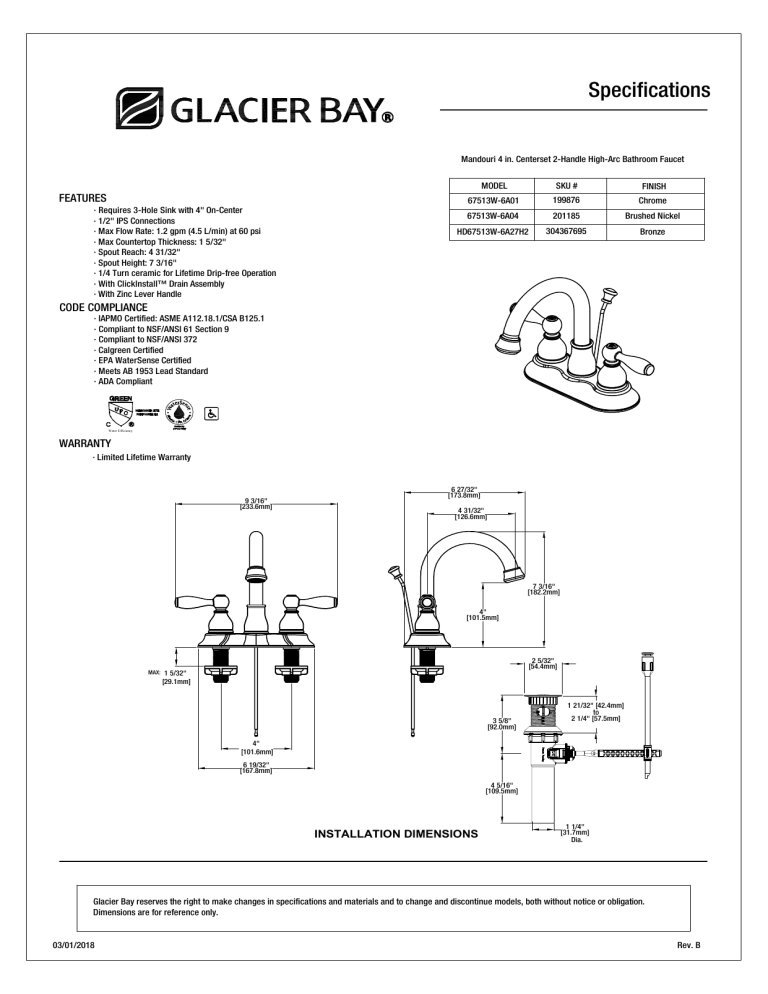

Specifications
Mandouri 4 in. Centerset 2-Handle High-Arc Bathroom Faucet
FEATURES
· Requires 3-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 5/32"
· Spout Reach: 4 31/32"
· Spout Height: 7 3/16"
· 1/4 Turn ceramic for Lifetime Drip-free Operation
· With ClickInstallâ„¢ Drain Assembly
· With Zinc Lever Handle
MODEL
SKU #
FINISH
67513W-6A01
199876
Chrome
67513W-6A04
201185
Brushed Nickel
HD67513W-6A27H2
304367695
Bronze
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
9 3/16"
[233.6mm]
6 27/32"
[173.8mm]
4 31/32"
[126.6mm]
7 3/16"
[182.2mm]
4"
[101.5mm]
MAX:
2 5/32"
[54.4mm]
1 5/32"
[29.1mm]
3 5/8"
[92.0mm]
1 21/32" [42.4mm]
to
2 1/4" [57.5mm]
4"
[101.6mm]
6 19/32"
[167.8mm]
4 5/16"
[109.5mm]
INSTALLATION DIMENSIONS
1 1/4"
[31.7mm]
Dia.
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
03/01/2018
Rev. B
