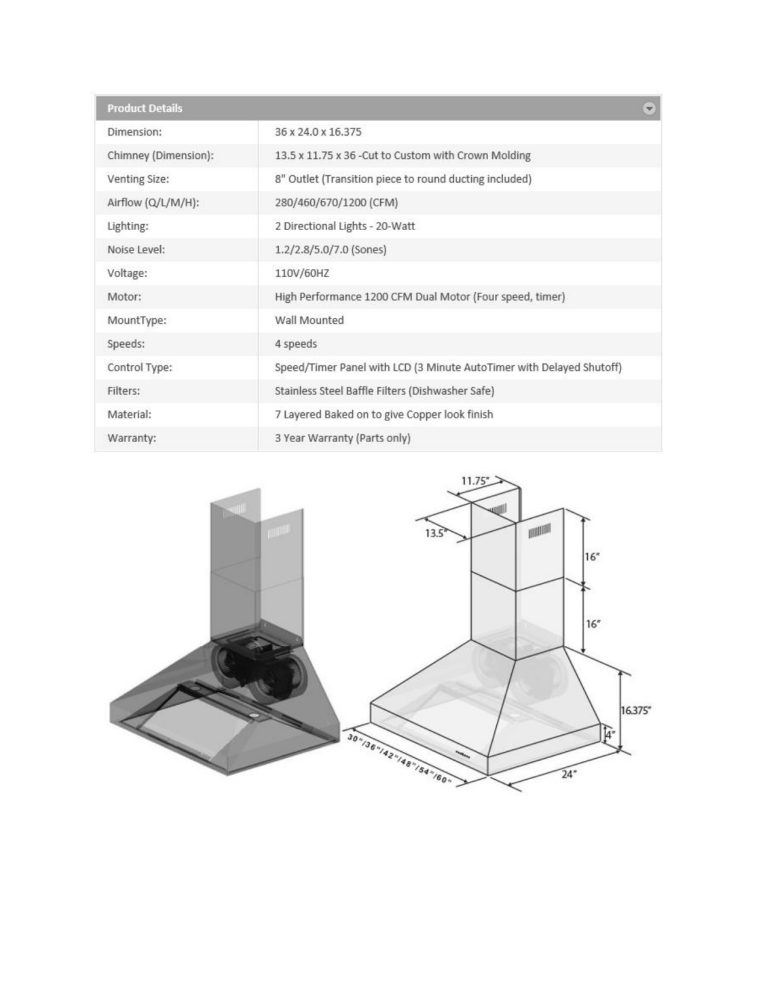

ZLINE Kitchen and Bath 655-CCXXX-36 Specification

ZLINE Kitchen and Bath 655-CCXXX-36 Specification
Dimension: 36 x 24.0 x 16.375
Chimney (Dimension): 13.5 x 11.75 x 36 -Cut to Custom with Crown Molding
Venting Size: 8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H): 280/460/670/1200 (CFM)
Lighting: 2 Directional Lights - 20-Watt
Noise Level: 1.2/2.8/5.0/7.0 (Sones)
Voltage: 110V/60HZ
Motor: High Performance 1200 CFM Dual Motor (Four speed, timer)
MountType: Wall Mounted
Speeds: 4 speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 7 Layered Baked on to give Copper look finish
Warranty: 3 Year Warranty (Parts only)
11.75"
Tie
135 les
16"
16”
> М Ÿ
6375"
24°
