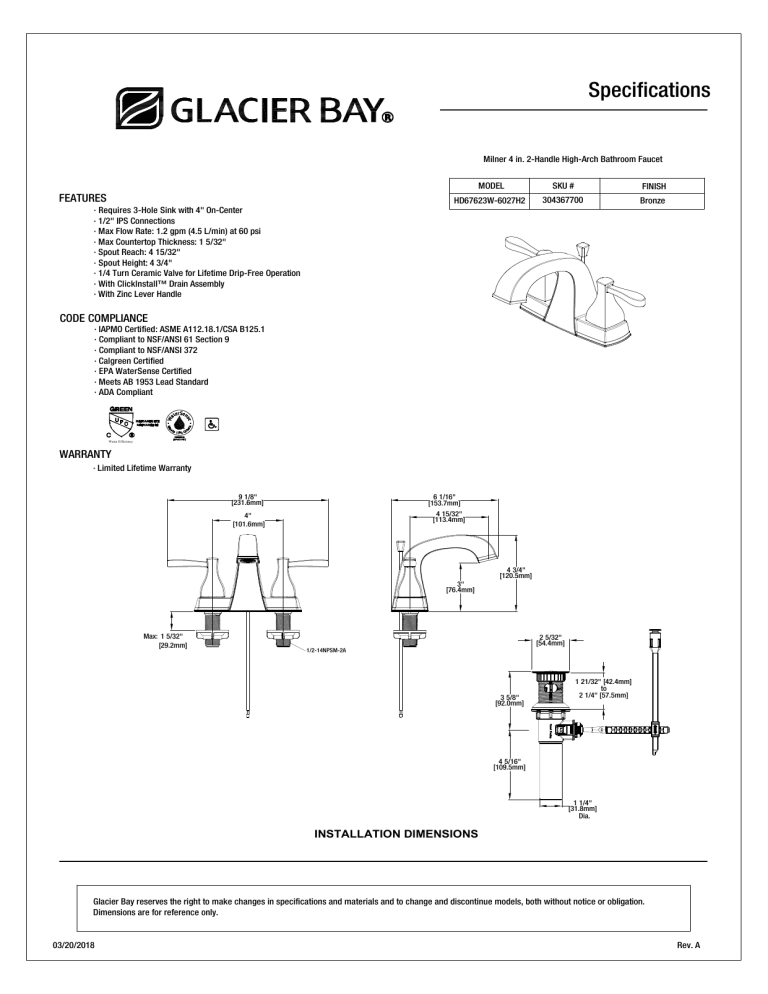

Glacier Bay HD67623W-6027H2 Milner 4 in. Centerset 2-Handle High-Arc Bathroom Faucet Specification

Add to my manuals
1 Pages

advertisement

Glacier Bay HD67623W-6027H2 Milner 4 in. Centerset 2-Handle High-Arc Bathroom Faucet Specification | Manualzz

FEATURES

· Requires 3-Hole Sink with 4" On-Center

· 1/2" IPS Connections

· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi

· Max Countertop Thickness: 1 5/32"

· Spout Reach: 4 15/32"

· Spout Height: 4 3/4"

· 1/4 Turn Ceramic Valve for Lifetime Drip-Free Operation

· With ClickInstall™ Drain Assembly

· With Zinc Lever Handle

CODE COMPLIANCE

· IAPMO Certified: ASME A112.18.1/CSA B125.1

· Compli a nt to NSF/ANSI 61 Section 9

· Compli a nt to NSF/ANSI 372

· Calgreen Certified

· EPA WaterSense Certified

· Meets AB 1953 Lead Standard

· ADA Compliant

Water Efficiency

WARRANTY

· Limited Lifetime Warranty

9 1/8"

[231.6mm]

4"

[101.6mm]

Max: 1 5/32"

[29.2mm]

1/2-14NPSM-2A

6 1/16"

[153.7mm]

Specifications

Milner 4 in. 2-Handle High-Arch Bathroom Faucet

MODEL

HD67623W-6027H2

SKU #

304367700

FINISH

Bronze

2 5/32"

[54.4mm]

1 21/32" [42.4mm] to

2 1/4" [57.5mm]

Dia.

INSTALLATION DIMENSIONS

03/20/2018

Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.

Dimensions are for reference only.

Rev. A
