American Standard 7023201.002 Specification

American Standard 7023201.002 Specification

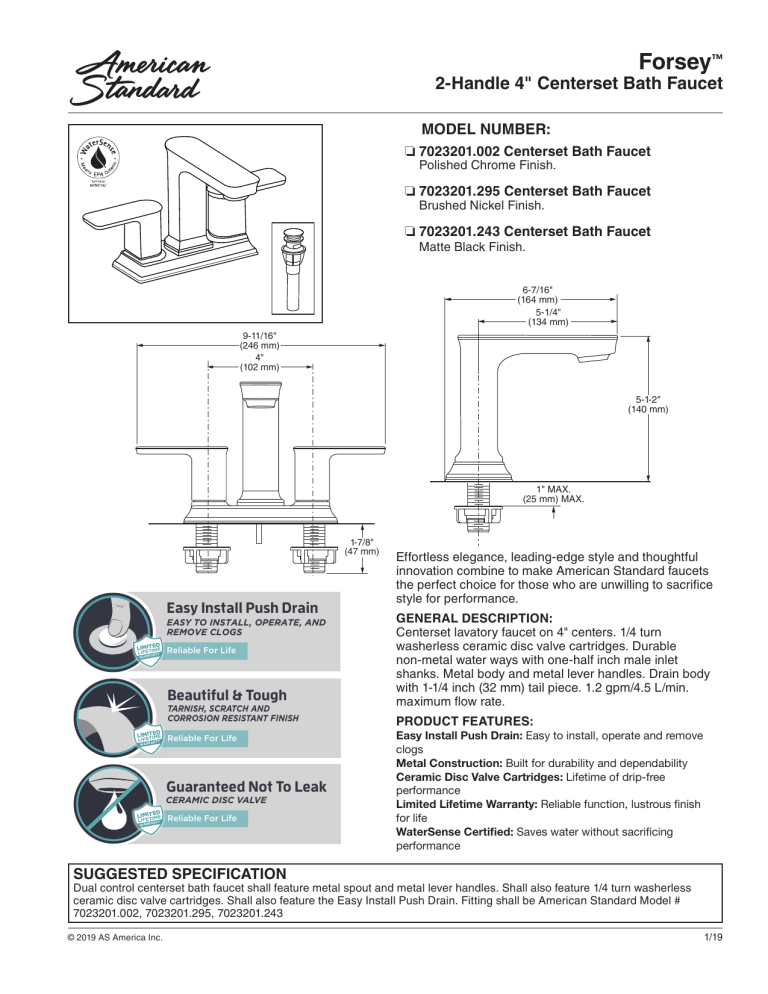

Forsey™
2-Handle 4" Centerset Bath Faucet
MODEL NUMBER:
❏ 7023201.002 Centerset Bath Faucet
Polished Chrome Finish.
❏ 7023201.295 Centerset Bath Faucet
Brushed Nickel Finish.
❏ 7023201.243 Centerset Bath Faucet
Matte Black Finish.
9-11/16"
(246 mm)
4"
(102 mm)
9-11/16"
(246 mm)
4"
(102 mm)
6-7/16"
(164 mm)
5-1/4"
(134 mm)
6-7/16"
(164 mm)
5-1/4"
(134 mm)
5-1-2"
(140 mm)
5-1-2"
(140 mm)
1-7/8"
(47 mm)
1-7/8"
(47 mm)
Easy Install Push Drain
EASY TO INSTALL, OPERATE, AND
REMOVE CLOGS
ED
LIMIT
TIME
LIFE
NTY
WARRA
Reliable For Life
Beautiful & Tough
TARNISH, SCRATCH AND
CORROSION RESISTANT FINISH
ED
LIMIT
TIME
LIFE
NTY
WARRA
Reliable For Life
Guaranteed Not To Leak
CERAMIC DISC VALVE
ED
LIMIT
TIME
LIFE
NTY
WARRA
Reliable For Life
1" MAX.
(25 mm) MAX.
1" MAX.
(25 mm) MAX.
Effortless elegance, leading-edge style and thoughtful
innovation combine to make American Standard faucets
the perfect choice for those who are unwilling to sacrifice
style for performance.
GENERAL DESCRIPTION:
Centerset lavatory faucet on 4" centers. 1/4 turn
washerless ceramic disc valve cartridges. Durable
non-metal water ways with one-half inch male inlet
shanks. Metal body and metal lever handles. Drain body
with 1-1/4 inch (32 mm) tail piece. 1.2 gpm/4.5 L/min.
maximum flow rate.
PRODUCT FEATURES:
Easy Install Push Drain: Easy to install, operate and remove
clogs
Metal Construction: Built for durability and dependability
Ceramic Disc Valve Cartridges: Lifetime of drip-free
performance
Limited Lifetime Warranty: Reliable function, lustrous finish
for life
WaterSense Certified: Saves water without sacrificing
performance
SUGGESTED SPECIFICATION
Dual control centerset bath faucet shall feature metal spout and metal lever handles. Shall also feature 1/4 turn washerless
ceramic disc valve cartridges. Shall also feature the Easy Install Push Drain. Fitting shall be American Standard Model #
7023201.002, 7023201.295, 7023201.243
© 2019 AS America Inc.
1/19
Forsey™
2-Handle 4" Centerset Bath Faucet
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
1.2
GALLONS PER MINUTE
ANSI A117.1
ASME A112.18.1
CSA B125.1
NSF 61/Section 9
NSF 372
FLOW RATE*
1.4
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Product
Number
Description
7023201.002
Centerset lavatory. Metal lever handles. Easy Install Push Drain. Polished Chrome finish.
7023201.295
Centerset lavatory. Metal lever handles. Easy Install Push Drain. Brushed Nickel finish.
7023201.243
Centerset lavatory. Metal lever handles. Easy Install Push Drain. Matte Black finish.
Meets the American Disabilities Act Guidelines
ANSI A117.1 Requirements for the
physically challenged.
© 2019 AS America Inc.
1/19
