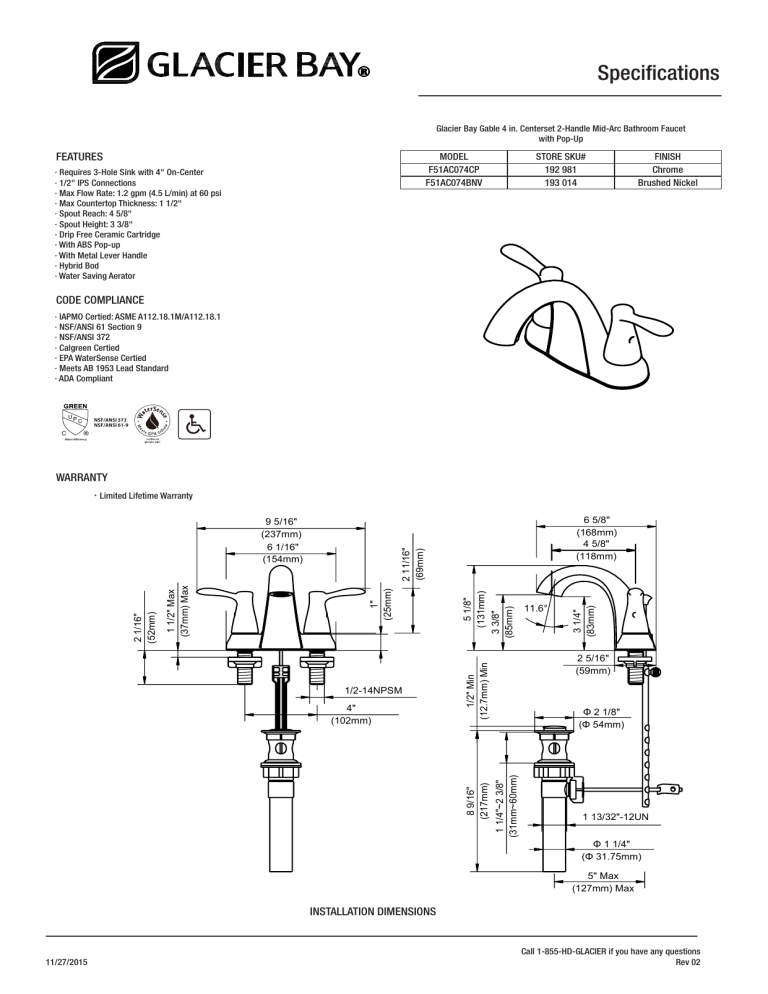

Specifications
Glacier Bay Gable 4 in. Centerset 2-Handle Mid-Arc Bathroom Faucet
with Pop-Up
FEATURES
MODEL
F51AC074CP
F51AC074BNV
· Requires 3-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 1/2"
· Spout Reach: 4 5/8"
· Spout Height: 3 3/8"
· Drip Free Ceramic Cartridge
· With ABS Pop-up
· With Metal Lever Handle
· Hybrid Bod
· Water Saving Aerator
STORE SKU#
192 981
193 014
FINISH
Chrome
Brushed Nickel
CODE COMPLIANCE
· IAPMO Certied: ASME A112.18.1M/A112.18.1
· NSF/ANSI 61 Section 9
· NSF/ANSI 372
· Calgreen Certied
· EPA WaterSense Certied
· Meets AB 1953 Lead Standard
· ADA Compliant
NSF/ANSI 372
NSF/ANSI 61-9
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
5 1/8"
(131mm)
3 3/8"
(85mm)
Φ 2 1/8"
(Φ 54mm)
1 1/4"~2 3/8"
(31mm~60mm)
8 9/16"
(217mm)
4"
(102mm)
2 5/16"
(59mm)
1/2" Min
(12.7mm) Min
1/2-14NPSM
11.6°
3 1/4"
(83mm)
6 5/8"
(168mm)
4 5/8"
(118mm)
2 11/16"
(69mm)
1"
(25mm)
1 1/2" Max
(37mm) Max
2 1/16"
(52mm)
9 5/16"
(237mm)
6 1/16"
(154mm)
1 13/32"-12UN
Φ 1 1/4"
(Φ 31.75mm)
5" Max
(127mm) Max
INSTALLATION DIMENSIONS
11/27/2015
Call 1-855-HD-GLACIER if you have any questions
Rev 02
