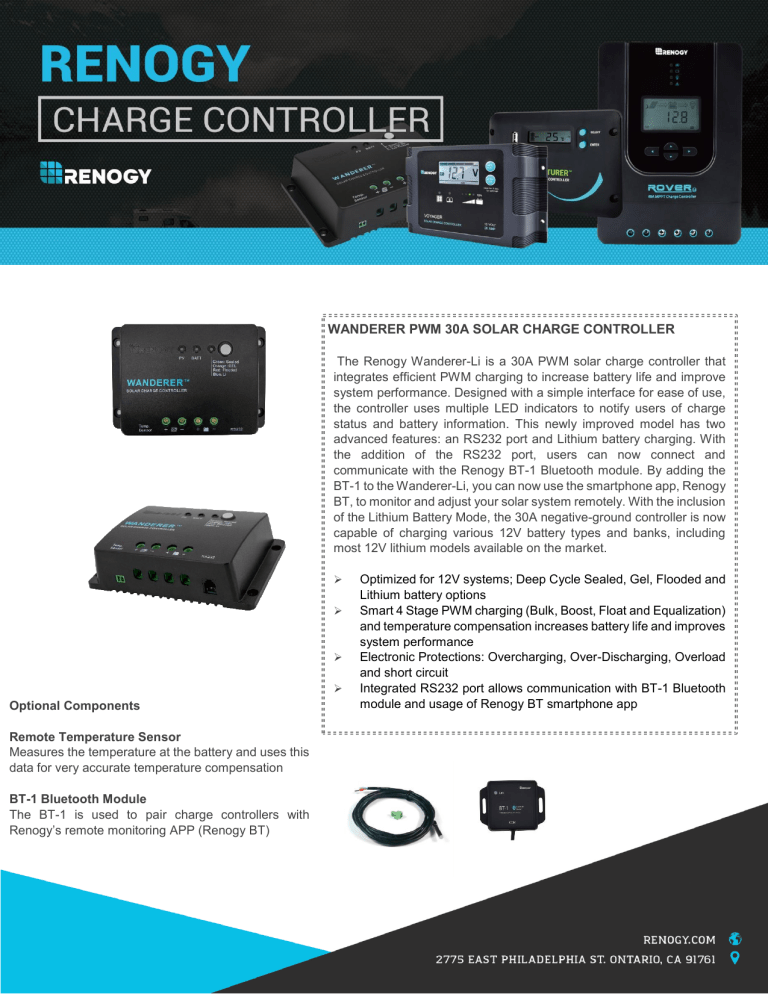

WANDERER PWM 30A SOLAR CHARGE CONTROLLER
The Renogy Wanderer-Li is a 30A PWM solar charge controller that
integrates efficient PWM charging to increase battery life and improve
system performance. Designed with a simple interface for ease of use,
the controller uses multiple LED indicators to notify users of charge
status and battery information. This newly improved model has two
advanced features: an RS232 port and Lithium battery charging. With
the addition of the RS232 port, users can now connect and
communicate with the Renogy BT-1 Bluetooth module. By adding the
BT-1 to the Wanderer-Li, you can now use the smartphone app, Renogy
BT, to monitor and adjust your solar system remotely. With the inclusion
of the Lithium Battery Mode, the 30A negative-ground controller is now
capable of charging various 12V battery types and banks, including
most 12V lithium models available on the market.
➢
➢
➢
➢
Optional Components
Remote Temperature Sensor
Measures the temperature at the battery and uses this
data for very accurate temperature compensation
BT-1 Bluetooth Module
The BT-1 is used to pair charge controllers with
Renogy’s remote monitoring APP (Renogy BT)
Optimized for 12V systems; Deep Cycle Sealed, Gel, Flooded and
Lithium battery options
Smart 4 Stage PWM charging (Bulk, Boost, Float and Equalization)
and temperature compensation increases battery life and improves
system performance
Electronic Protections: Overcharging, Over-Discharging, Overload
and short circuit
Integrated RS232 port allows communication with BT-1 Bluetooth
module and usage of Renogy BT smartphone app
SPECIFICATION
Parameters
Nominal System Voltage
Rated Charge Current
Max. PV Input Voltage
Battery Type
Self-Consumption
Temperature Compensation
Coefficientl
Dimensions
Max. Terminal Size
Net Weight
Working Temperature
Enclosure
Communication
Certification
12VDC
30A
25 VDC
Sealed (AGM), Gel, Flooded and Lithium (LFP)
≤10mA
W
-3mV/°C
/2V
168 x 109 x 44mm; 6.45 x 4.31 x 1.76in
8 AWG; 10mm2
0.29 kg; 0.65 lbs.
-35°C to +45°C; -20 ˚F to 113 ˚F
IP20
RS232
FCC, CE, RoHS
Battery Charging Parameters (Temp:25°C)
Battery Type
High Voltage Disconnect
Charging Limit Voltage
Equalization Voltage
Boost Voltage
Float Voltage
Boost Return Voltage
Low Voltage Reconnect
Under Voltage Recover
Under Voltage Warning
Low Voltage Disconnect
Discharging Limit Voltage
Equalization Duration
Boost Duration
SEALED
16V
15.5V
14.6V
GEL
16V
15.5V
----
FLOODED
16V
15.5V
14.8V
14.4V
14.2V
14.6V
13.8V
13.2V
12.6V
12.2V
12.0V
11.1V
10.8V
2 hours
2 hours
13.8V
13.2V
12.6V
12.2V
12.0V
11.1V
10.8V
---2 hours
13.2V
13.2V
12.6V
12.2V
12.0V
11.1V
10.8V
2 hours
2 hours
LI (LFP)
16V
15.5V
---14.2V (User:
12.6-15.5V)
---13.2V
12.6V
9-17V
12.0V
11.1V
10.8V
-------
