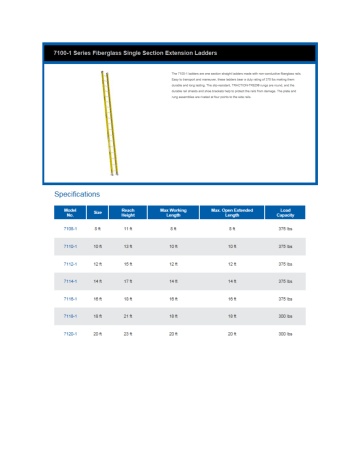

7100-1 Series Fiberglass Single Section Extension Ladders
The 7100-1 ladders are one section straight ladders made with non-conductive fiberglass rails.
| Essy to transport and maneuver, these ladders bear a duty rating of 375 Ibs making them
durable and long lasting. The slip-resisiant, TRACTION-TREDE rungs are round, and the
durable rail shields and shoe brackets help to protect the rails from damage. The plate and
rung assembfes are riveted at four points to the side rails.
Ln po
ни
Specifications
Reach Max Working Max. Open Extended Load
Height Na Length Le Te
7108-1 sit 11f = sit TE lbs
7110-1 10 ft 13 fi 10 ft 10 fi 375 lbs
7112-1 12 fi 15 ft 12 fi 12 ft 75 lbs
7114-1 14 ft 17 ft 14 ft 14 fi 375 lbs
7116-1 16 fi 18 ft 16 fi 18 ft TE lbs
7115-1 18 fi 21 fi 15 ft 18 fi 300 lbs
7120-1 20 ft 23 ft 20 fi 20 ft 300 lbs
