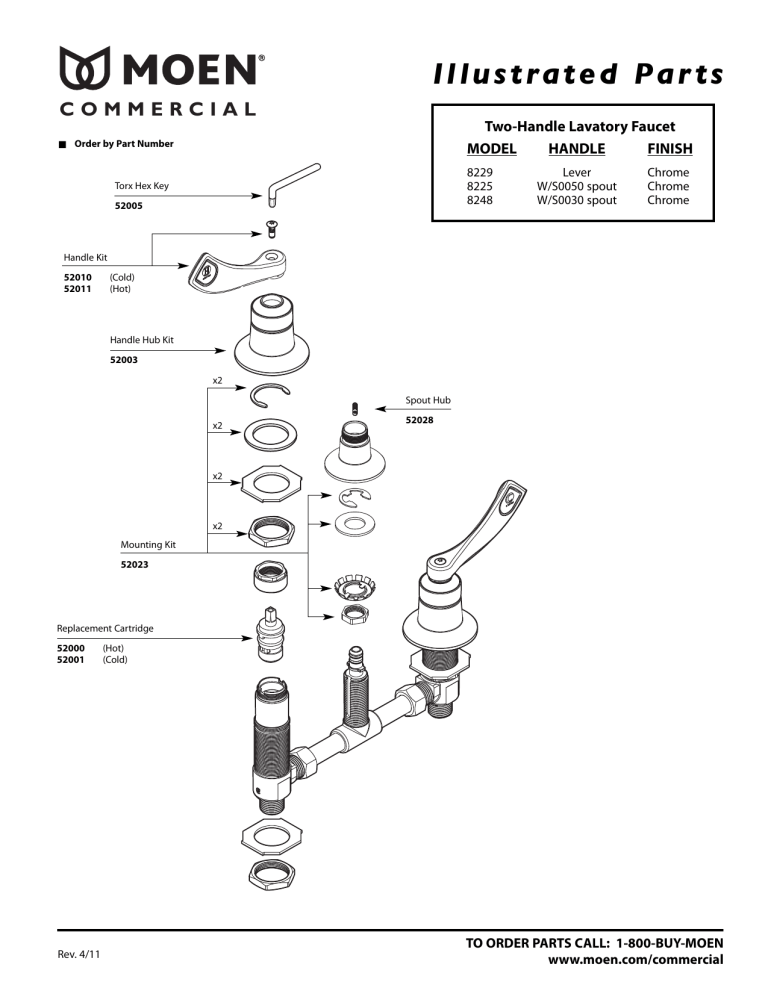

I l l u s t r a t e d Pa r t s
COMMERCIAL
Two-Handle Lavatory Faucet
MODEL
HANDLE
FINISH
■ Order by Part Number
8229
8225
8248
Torx Hex Key
52005
Lever
W/S0050 spout
W/S0030 spout
Chrome
Chrome
Chrome
Handle Kit
52010
52011
(Cold)
(Hot)
Handle Hub Kit
52003
x2
Spout Hub
x2
52028
x2
x2
Mounting Kit
52023
Replacement Cartridge
52000
52001
Rev. 4/11
(Hot)
(Cold)
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com/commercial
