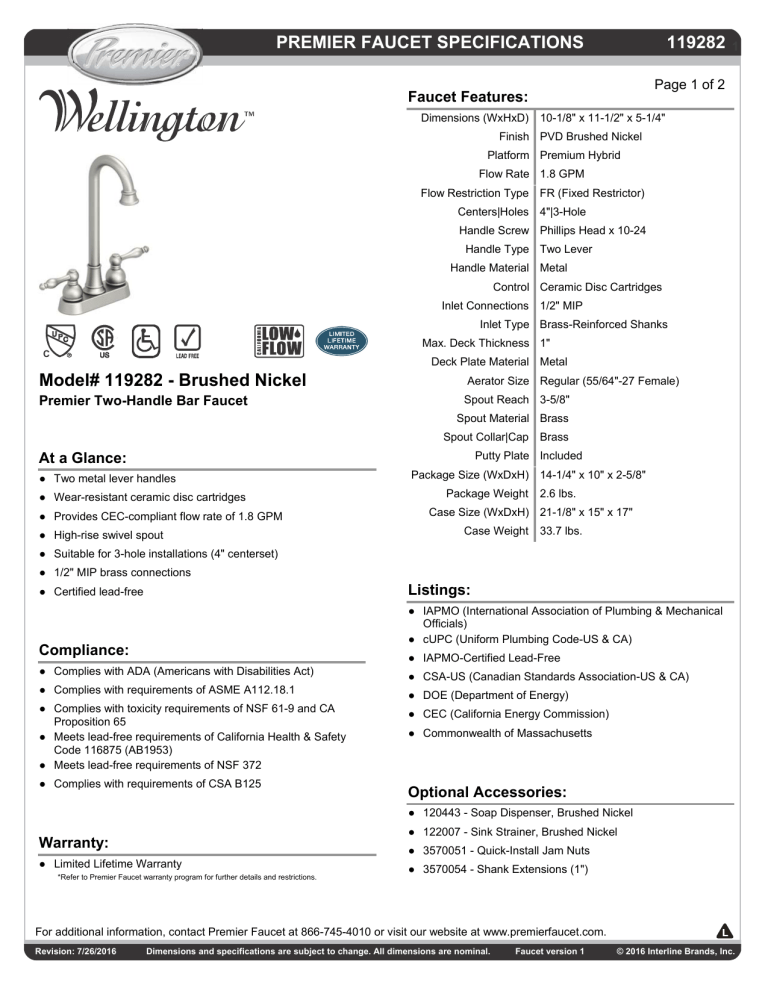

PREMIER FAUCET SPECIFICATIONS
119282
1
Page 1 of 2
Faucet Features:
Dimensions (WxHxD) 10-1/8" x 11-1/2" x 5-1/4"
Finish PVD Brushed Nickel
Platform Premium Hybrid
Flow Rate 1.8 GPM
Flow Restriction Type FR (Fixed Restrictor)
Centers|Holes 4"|3-Hole
Handle Screw Phillips Head x 10-24
Handle Type Two Lever
Handle Material Metal
Control Ceramic Disc Cartridges
Inlet Connections 1/2" MIP
Inlet Type Brass-Reinforced Shanks
Max. Deck Thickness 1"
C
Deck Plate Material Metal
Model# 119282 - Brushed Nickel
Aerator Size Regular (55/64"-27 Female)
Premier Two-Handle Bar Faucet
Spout Reach 3-5/8"
Spout Material Brass
Spout Collar|Cap Brass
At a Glance:
Putty Plate Included
● Two metal lever handles
● Wear-resistant ceramic disc cartridges
● Provides CEC-compliant flow rate of 1.8 GPM
● High-rise swivel spout
Package Size (WxDxH) 14-1/4" x 10" x 2-5/8"
Package Weight
2.6 lbs.
Case Size (WxDxH) 21-1/8" x 15" x 17"
Case Weight
33.7 lbs.
● Suitable for 3-hole installations (4" centerset)
● 1/2" MIP brass connections
Listings:
● Certified lead-free
● IAPMO (International Association of Plumbing & Mechanical
Officials)
● cUPC (Uniform Plumbing Code-US & CA)
Compliance:
● IAPMO-Certified Lead-Free
● Complies with ADA (Americans with Disabilities Act)
● CSA-US (Canadian Standards Association-US & CA)
● Complies with requirements of ASME A112.18.1
● DOE (Department of Energy)
● Complies with toxicity requirements of NSF 61-9 and CA
Proposition 65
● Meets lead-free requirements of California Health & Safety
Code 116875 (AB1953)
● Meets lead-free requirements of NSF 372
● CEC (California Energy Commission)
● Complies with requirements of CSA B125
● Commonwealth of Massachusetts
Optional Accessories:
● 120443 - Soap Dispenser, Brushed Nickel
● 122007 - Sink Strainer, Brushed Nickel
Warranty:
● 3570051 - Quick-Install Jam Nuts
● Limited Lifetime Warranty
*Refer to Premier Faucet warranty program for further details and restrictions.
● 3570054 - Shank Extensions (1")
For additional information, contact Premier Faucet at 866-745-4010 or visit our website at www.premierfaucet.com.
Revision: 7/26/2016
Dimensions and specifications are subject to change. All dimensions are nominal.
Faucet version 1
© 2016 Interline Brands, Inc.
PREMIER FAUCET SPECIFICATIONS
119282
1
Page 2 of 2
Installation Configurations:
3‐Hole Installation
Dimensional Drawing:
10-1/8"
5-1/4"
4"
4-1/4"
1
4°
11-1/2"
3-5/8"
8-3/4"
2-7/8"
7/8"
2-1/8"
1-7/8"
1" Max. Thickness
2
6"
1)
2)
55/64"-27 female threaded aerator shell
Fits standard hole openings 1-1/4" to 1-1/2" in diameter
For additional information, contact Premier Faucet at 866-745-4010 or visit our website at www.premierfaucet.com.
Revision: 7/26/2016
Dimensions and specifications are subject to change. All dimensions are nominal.
Faucet version 1
© 2016 Interline Brands, Inc.
