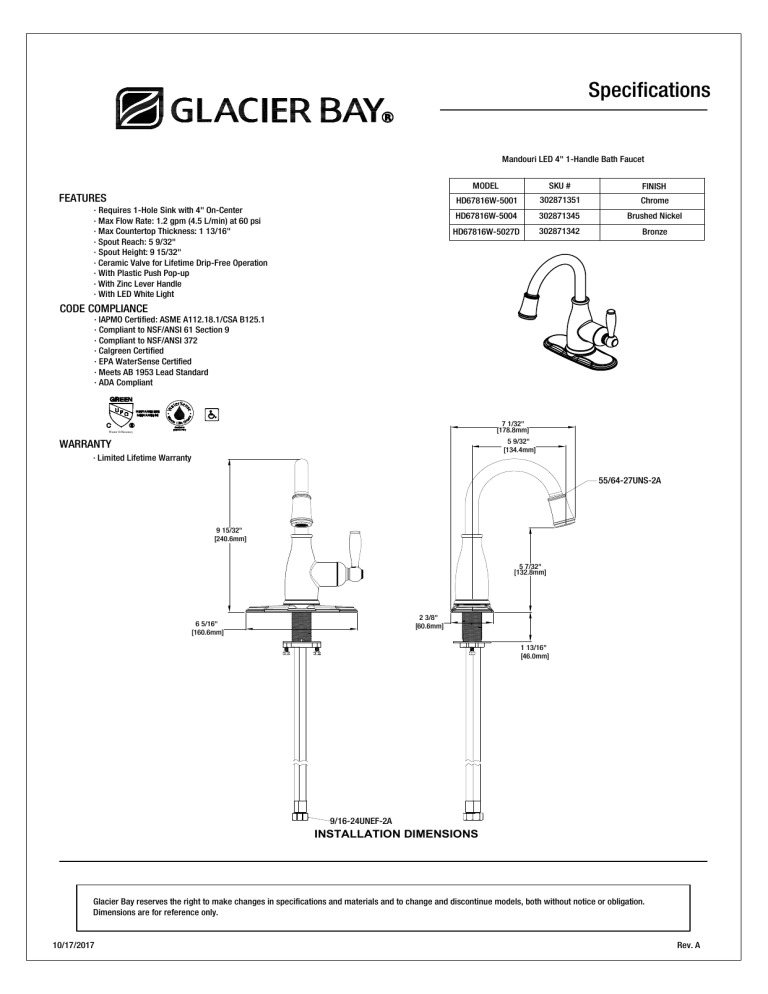

Specifications
Mandouri LED 4" 1-Handle Bath Faucet
FEATURES
· Requires 1-Hole Sink with 4" On-Center
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 13/16"
· Spout Reach: 5 9/32"
· Spout Height: 9 15/32"
· Ceramic Valve for Lifetime Drip-Free Operation
· With Plastic Push Pop-up
· With Zinc Lever Handle
· With LED White Light
MODEL
SKU #
FINISH
HD67816W-5001
302871351
Chrome
HD67816W-5004
302871345
Brushed Nickel
HD67816W-5027D
302871342
Bronze
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
7 1/32"
[178.8mm]
Water Efficiency
5 9/32"
[134.4mm]
WARRANTY
· Limited Lifetime Warranty
55/64-27UNS-2A
9 15/32"
[240.6mm]
5 7/32"
[132.8mm]
2 3/8"
[60.6mm]
6 5/16"
[160.6mm]
1 13/16"
[46.0mm]
9/16-24UNEF-2A
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
10/17/2017
Rev. A
