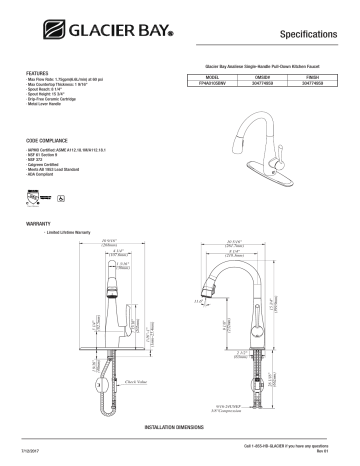

Specifications
Glacier Bay Analiese Single-Handle Pull-Down Kitchen Faucet
FEATURES
MODEL
FP4A0105BNV
· Max Flow Rate: 1.75gpm(6.6L/min) at 60 psi
· Max Countertop Thickness: 1 9/16"
· Spout Reach: 8 1/4"
· Spout Height: 15 3/4"
· Drip-Free Ceramic Cartridge
· Metal Lever Handle
OMSID#
304774959
FINISH
304774959
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1M/A112.18.1
· NSF 61 Section 9
· NSF 372
· Calgreen Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
10 9/16"
(268mm)
4 1/4"
(107.6mm)
10 5/16"
(261.7mm)
8 1/4"
(210.3mm)
15 3/4"
(399.9mm)
1 3/16"
(30mm)
9 1/8"
(232mm)
1/16"~1"
(1mm~25.4mm)
7 15/16"
(202mm)
3 1/4"
(82.5mm)
11.6
26 1/16"
(662mm)
1 9/16"
(40mm)
2 1/2"
(63mm)
Check Value
9/16-24UNEF
3/8''Compression
INSTALLATION DIMENSIONS
7/12/2017
Call 1-855-HD-GLACIER if you have any questions
Rev 01
