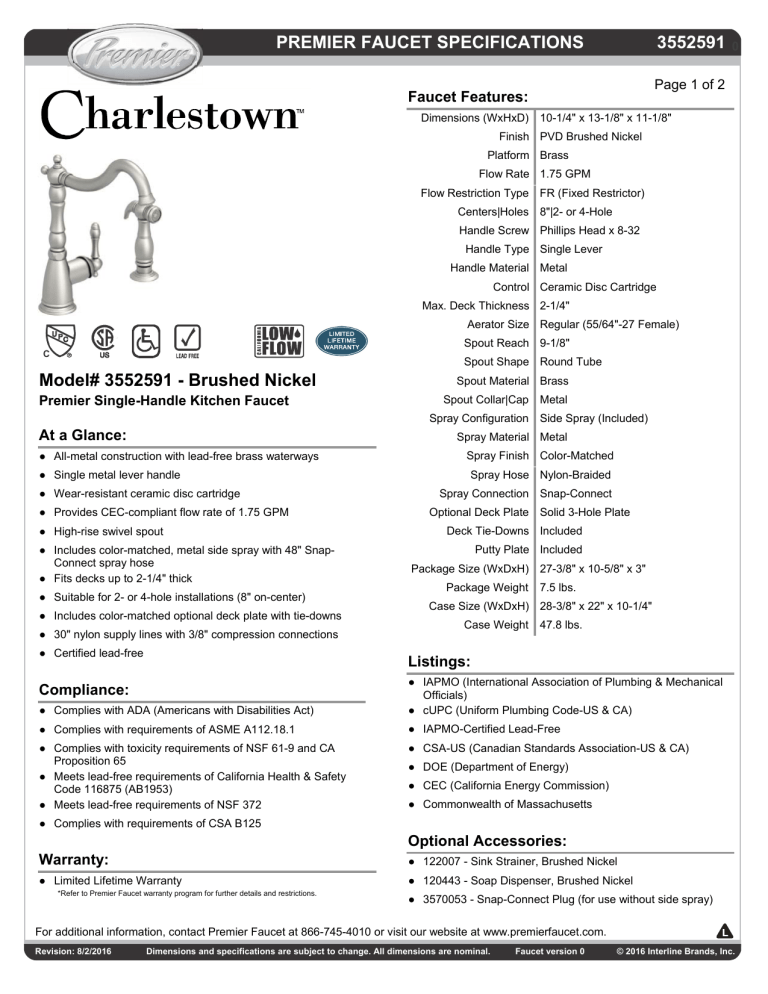

PREMIER FAUCET SPECIFICATIONS
3552591
0
Page 1 of 2
Faucet Features:
Dimensions (WxHxD) 10-1/4" x 13-1/8" x 11-1/8"
Finish PVD Brushed Nickel
Platform Brass
Flow Rate 1.75 GPM
Flow Restriction Type FR (Fixed Restrictor)
Centers|Holes 8"|2- or 4-Hole
Handle Screw Phillips Head x 8-32
Handle Type Single Lever
Handle Material Metal
Control Ceramic Disc Cartridge
Max. Deck Thickness 2-1/4"
Aerator Size Regular (55/64"-27 Female)
Spout Reach 9-1/8"
C
Spout Shape Round Tube
Model# 3552591 - Brushed Nickel
Premier Single-Handle Kitchen Faucet
Spout Material Brass
Spout Collar|Cap Metal
Spray Configuration Side Spray (Included)
At a Glance:
Spray Material Metal
● All-metal construction with lead-free brass waterways
● Single metal lever handle
● Wear-resistant ceramic disc cartridge
● Provides CEC-compliant flow rate of 1.75 GPM
● High-rise swivel spout
● Includes color-matched, metal side spray with 48" SnapConnect spray hose
● Fits decks up to 2-1/4" thick
● Suitable for 2- or 4-hole installations (8" on-center)
● Includes color-matched optional deck plate with tie-downs
● 30" nylon supply lines with 3/8" compression connections
● Certified lead-free
Spray Finish Color-Matched
Spray Hose Nylon-Braided
Spray Connection Snap-Connect
Optional Deck Plate Solid 3-Hole Plate
Deck Tie-Downs Included
Putty Plate Included
Package Size (WxDxH) 27-3/8" x 10-5/8" x 3"
Package Weight
7.5 lbs.
Case Size (WxDxH) 28-3/8" x 22" x 10-1/4"
Case Weight
47.8 lbs.
Listings:
● Complies with ADA (Americans with Disabilities Act)
● IAPMO (International Association of Plumbing & Mechanical
Officials)
● cUPC (Uniform Plumbing Code-US & CA)
● Complies with requirements of ASME A112.18.1
● IAPMO-Certified Lead-Free
● Complies with toxicity requirements of NSF 61-9 and CA
Proposition 65
● Meets lead-free requirements of California Health & Safety
Code 116875 (AB1953)
● Meets lead-free requirements of NSF 372
● CSA-US (Canadian Standards Association-US & CA)
Compliance:
● DOE (Department of Energy)
● CEC (California Energy Commission)
● Commonwealth of Massachusetts
● Complies with requirements of CSA B125
Optional Accessories:
Warranty:
● 122007 - Sink Strainer, Brushed Nickel
● Limited Lifetime Warranty
● 120443 - Soap Dispenser, Brushed Nickel
*Refer to Premier Faucet warranty program for further details and restrictions.
● 3570053 - Snap-Connect Plug (for use without side spray)
For additional information, contact Premier Faucet at 866-745-4010 or visit our website at www.premierfaucet.com.
Revision: 8/2/2016
Dimensions and specifications are subject to change. All dimensions are nominal.
Faucet version 0
© 2016 Interline Brands, Inc.
PREMIER FAUCET SPECIFICATIONS
3552591
0
Page 2 of 2
Installation Configurations:
2‐Hole Installation
4‐Hole Installation
Dimensional Drawing:
10-1/4"
11-1/8"
8"
9-5/8"
5-1/8"
1
13-1/8"
360°
18°
9-1/8"
11-1/4"
10-3/8"
5-3/4"
1/4"
2"
2-1/2"
5
3
1-3/4"
2-1/8"
2
1)
2)
3)
4)
5)
2-1/8"
2-1/4" Max. Thickness
4
55/64"-27 female threaded aerator shell
30" nylon supply lines with 3/8" compression connections for easy installation (28" usable length)
1/4"-20 threaded tie-downs
Plastic wing nuts for easy, tool-free installation (included)
48" nylon spray hose with Snap-Connect for easy installation
Fits standard hole openings 1-1/4" to 1-1/2" in diameter
For additional information, contact Premier Faucet at 866-745-4010 or visit our website at www.premierfaucet.com.
Revision: 8/2/2016
Dimensions and specifications are subject to change. All dimensions are nominal.
Faucet version 0
© 2016 Interline Brands, Inc.
