FV-01WS2

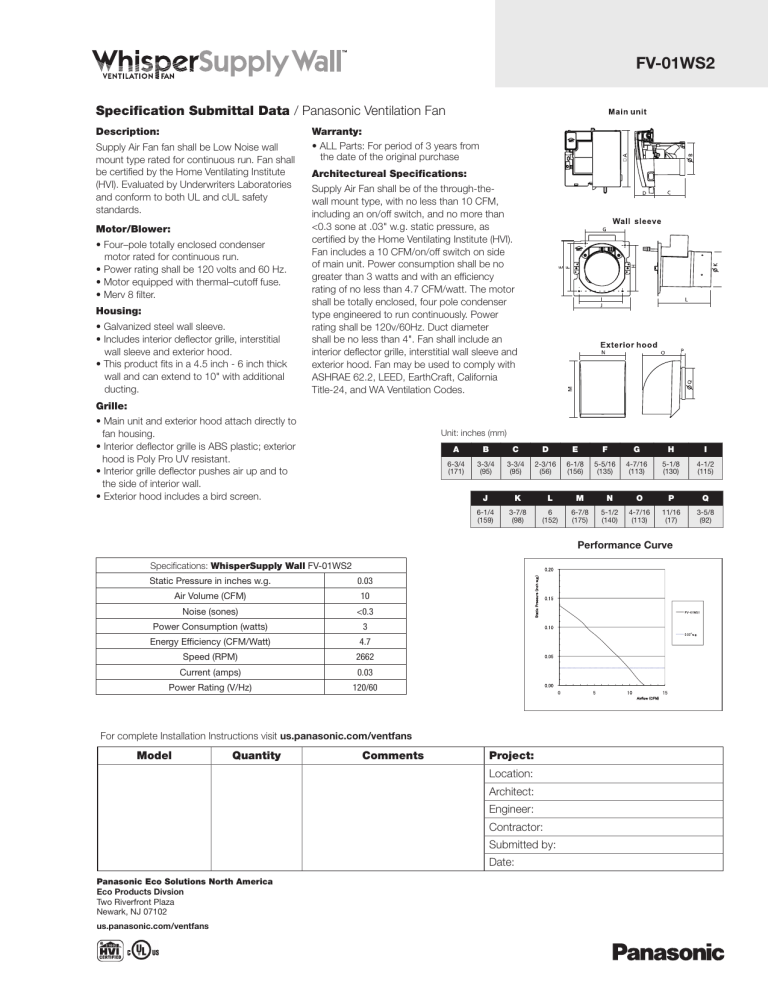

Specification Submittal Data / Panasonic Ventilation Fan
Description:
Supply Air Fan fan shall be Low Noise wall
mount type rated for continuous run. Fan shall
be certified by the Home Ventilating Institute
(HVI). Evaluated by Underwriters Laboratories
and conform to both UL and cUL safety
standards.
Motor/Blower:
• Four–pole totally enclosed condenser
motor rated for continuous run.
• Power rating shall be 120 volts and 60 Hz.
• Motor equipped with thermal–cutoff fuse.
• Merv 8 filter.
Housing:
• Galvanized steel wall sleeve.
• Includes interior deflector grille, interstitial
wall sleeve and exterior hood.
• This product fits in a 4.5 inch - 6 inch thick
wall and can extend to 10" with additional
ducting.
Warranty:
• ALL Parts: For period of 3 years from
the date of the original purchase
Architectureal Specifications:
Supply Air Fan shall be of the through-thewall mount type, with no less than 10 CFM,
including an on/off switch, and no more than
<0.3 sone at .03" w.g. static pressure, as
certified by the Home Ventilating Institute (HVI).
Fan includes a 10 CFM/on/off switch on side
of main unit. Power consumption shall be no
greater than 3 watts and with an efficiency
rating of no less than 4.7 CFM/watt. The motor
shall be totally enclosed, four pole condenser
type engineered to run continuously. Power
rating shall be 120v/60Hz. Duct diameter
shall be no less than 4". Fan shall include an
interior deflector grille, interstitial wall sleeve and
exterior hood. Fan may be used to comply with
ASHRAE 62.2, LEED, EarthCraft, California
Title-24, and WA Ventilation Codes.
Grille:
• Main unit and exterior hood attach directly to
fan housing.
• Interior deflector grille is ABS plastic; exterior
hood is Poly Pro UV resistant.
• Interior grille deflector pushes air up and to
the side of interior wall.
• Exterior hood includes a bird screen.
Unit: inches (mm)
A
B
C
D
E
F
G
H
I
6-3/4
(171)
3-3/4
(95)
3-3/4
(95)
2-3/16
(56)
6-1/8
(156)
5-5/16
(135)
4-7/16
(113)
5-1/8
(130)
4-1/2
(115)
J
K
L
M
N
O
P
Q
6-1/4
(159)
3-7/8
(98)
6
(152)
6-7/8
(175)
5-1/2
(140)
4-7/16
(113)
11/16
(17)
3-5/8
(92)
Performance Curve
Specifications: WhisperSupply Wall FV-01WS2
Static Pressure in inches w.g.
0.03
Air Volume (CFM)
10
Noise (sones)
<0.3
Power Consumption (watts)
3
Energy Efficiency (CFM/Watt)
4.7
Speed (RPM)
2662
Current (amps)
0.03
Power Rating (V/Hz)
120/60
For complete Installation Instructions visit us.panasonic.com/ventfans
Model
Quantity
Comments
Project:
Location:
Architect:
Engineer:
Contractor:
Submitted by:
Date:
Panasonic Eco Solutions North America
Eco Products Divsion
Two Riverfront Plaza
Newark, NJ 07102
us.panasonic.com/ventfans
