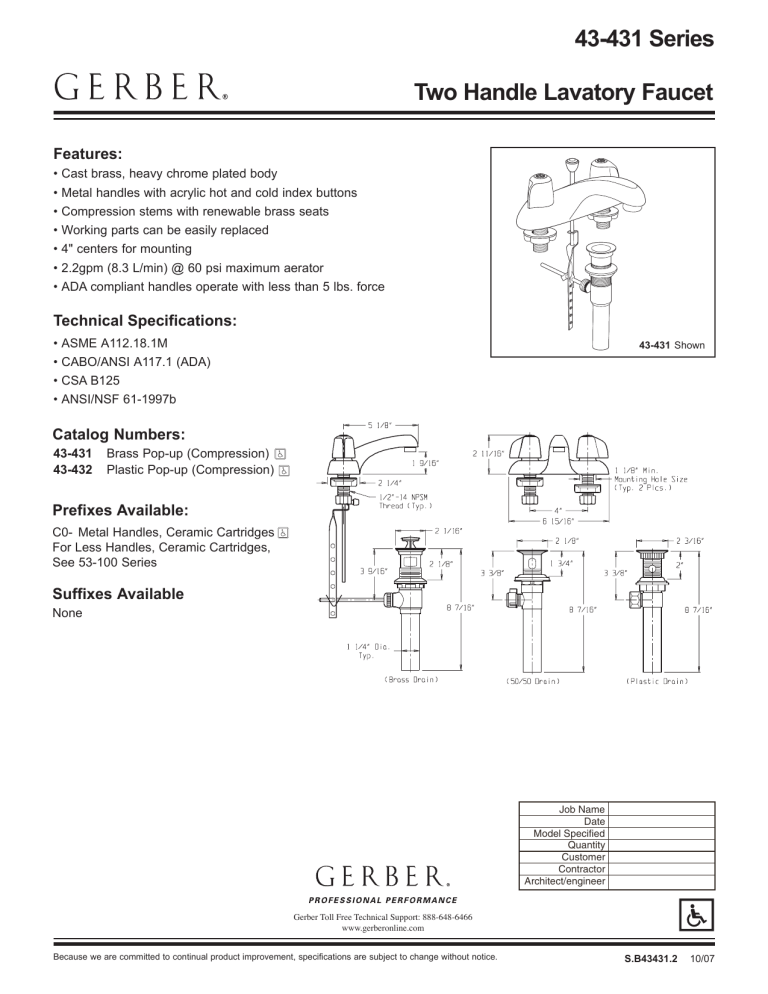

Gerber G0743431 Specification

Gerber G0743431 Specification
43-431 Series
Two Handle Lavatory Faucet
Features:
•
•
•
•
•
•
•
Cast brass, heavy chrome plated body
Metal handles with acrylic hot and cold index buttons
Compression stems with renewable brass seats
Working parts can be easily replaced
4" centers for mounting
2.2gpm (8.3 L/min) @ 60 psi maximum aerator
ADA compliant handles operate with less than 5 lbs. force
Technical Specifications:
• ASME A112.18.1M
• CABO/ANSI A117.1 (ADA)
43-431 Shown
• CSA B125
• ANSI/NSF 61-1997b
Catalog Numbers:
43-431
43-432
Brass Pop-up (Compression)
Plastic Pop-up (Compression)
Prefixes Available:
C0- Metal Handles, Ceramic Cartridges
For Less Handles, Ceramic Cartridges,
See 53-100 Series
Suffixes Available
None
Job Name
Date
Model Specified
Quantity
Customer
Contractor
Architect/engineer
Gerber Toll Free Technical Support: 888-648-6466
www.gerberonline.com
Because we are committed to continual product improvement, specifications are subject to change without notice.
S.B43431.2
10/07
