Cavaliere SV168B2-30T Installation guide

Cavaliere SV168B2-30T Installation guide

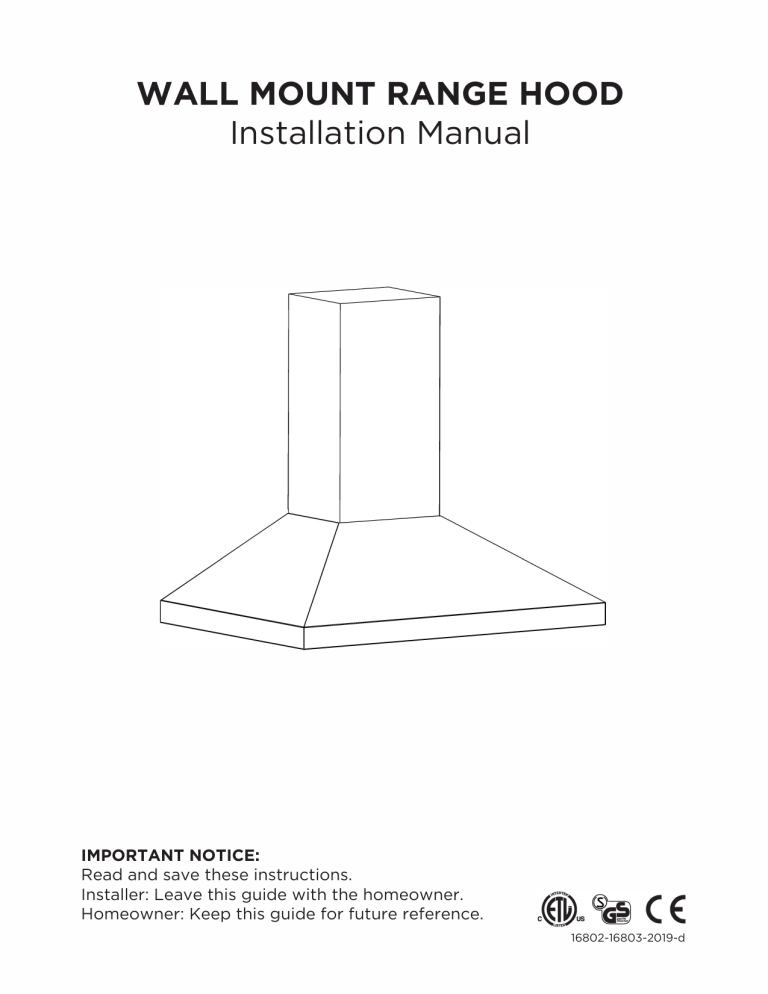

WALL MOUNT RANGE HOOD
Installation Manual
IMPORTANT NOTICE:
Read and save these instructions.
Installer: Leave this guide with the homeowner.
Homeowner: Keep this guide for future reference.
16802-16803-2019-d
Table of Contents
INSTALLATION
Safety Notice .............................................................................................................................................................1-2
Specifications ................................................................................................................................................................ 3
Parts Supplied ..............................................................................................................................................................4
Tools Required .............................................................................................................................................................5
Venting Requirements .............................................................................................................................................. 6
Venting Methods .........................................................................................................................................................7
Height Clearances & Duct Size Calculator .........................................................................................................8
Charcoal Filter Installation & Electrical Requirements .................................................................................9
Preparation ..................................................................................................................................................................10
Installation Overview .................................................................................................................................................11
Installation ...............................................................................................................................................................11-14
USE AND CARE
Range Hood Operations .........................................................................................................................................15
Troubleshooting .........................................................................................................................................................16
Use and Care Information ......................................................................................................................................17
Electric Schematic ....................................................................................................................................................18
MAINTENANCE
Cleaning, Replacing Filter & Lightbulb ..................................................................................................... .19-20
WARRANTY
Coverage & Exceptions ...........................................................................................................................................21
Disclaimer ....................................................................................................................................................................22
Contact Information ................................................................................................................................................22
Important Safety Notice
• Ducted fans MUST always be vented to the outdoors.
• DO NOT vent exhaust into spaces between walls, crawl spaces, ceiling, attics or garages.
• Any old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease fire.
Check all joints on duct work to insure proper connection and all joints should be properly taped.
• Use only metal ductwork and this unit MUST be grounded.
• Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to
• prevent power from being switched ON accidentally.
When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other
• hidden utilities.
All electrical wiring must be properly installed, insulated and grounded.
• U se this unit only in the manner intended by the manufacturer. If you have questions, contact
the vendor.
• DO NOT touch the bottom side of the range hood directly after usage because it may be hot. Wait
until it has cooled.
• Make sure to inspect shipment and it's contents as soon shipment is received.
• Plug in and test range hood and all its functions, (refer to Range Hood Operations, Page 15),
directly after receiving shipment, and before scheduling an installer.
TO REDUCE THE RISK OF A STOVE TOP GREASE FIRE:
• Clean grease laden surfaces frequently.
• Clean ventilating fan frequently.
• Keep all surfaces clean from grease or oil build up.
• Grease should not be allowed to accumulate on fan, baffle, spaces, filter, grease tunnel and oil
container.
• Always turn range hood ON when cooking at high heat or when cooking flaming foods. Use high
settings on cooking range only when necessary.
• Never leave burners or cooktop at high settings unattended. Boil overs cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
• Always use appropriate cookware and utensils size.
• Always use cookware appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A STOVE TOP GREASE FIRE:
• SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn OFF the burner.
BE CAREFUL TO PREVENT BURNS. NEVER PICK UP A FLAMING PAN-you may be burned.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames DO NOT
go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT or dial your local
emergency service immediately.
• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion may result.
• Use an extinguisher ONLY if:
• You know you have a Class A, B, C extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it is started.
• The fire department is being called.
• You can fight the fire while maintaining a safe exit path.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A GAS LEAKS:
• Extinguish any open flame.
• DO NOT turn on the range hood fan or any type of ventilator.
• DO NOT turn on the lights or any type of appliance.
• Open all doors and windows to disperse the gas. If you still smell gas, call the gas company and
fire department, or dial your local emergency service immediately.
■
------------------..ar:@'--�jll-------------------
Specifications
Body Material
Stainless Steel, Brushed Finish
Overall Voltage
115V/60Hz
Maximum Power Usage
88W
Lighting Wattage
l.5W(x2)
Lamp Type
LED
Motor Power
85W
Motor Speed
1388 to 2237 RPM , 3 Levels
Motor Type
Induction, Ultra Quiet
Fan Type
Centrifugal
Maximum Airflow
400 CFM
Air Pressure
128 pa
Noise Level (dB/ Sone)
44.25 to 56.48 dB
Ducting/ Venting
6 inches, Round, Top Venting
Control Type
Electronic Control Panels with LED Display
Protections
Electrical Short Fuse
Filtration Type
Stainless Steel Baffle Filter
* Subject to change without notice, please contact your local reseller for details.
IHI
Preparation
Advanced Preparations:
1. Familiarize yourself with the controls of the range hood by
reading through Range Hood Operations, Page 15.
Excessive Weight
2. Place the range hood on a flat, stable surface. Connect the
Require three or more persons to
range hood to a designated standard outlet (please refer
move and install this range hood.
the product label for the suitable voltage of this unit) and
Spinal or other bodily injuries
turn on the range hood. Verify all operations of the range
could occur if it is not followed.
hood by referring to Range Hood Operations, Page 15.
3. Place all supplied parts and required hardware on a flat, stable surface and verify the
presence of all Parts Supplied listed on Page 4.
4. Carefully remove the white plastic protective coat from the chimney covers and range hood.
5. Determine whether your household ducting has a draft damper system; only 1 draft damper
system is recommended for proper efficiency.
6. Determine if you will be using the draft damper system on the range hood. Install them onto
the range hood before starting the installation. If you are using a draft damper system within
the household ducting, the draft dampers do not need to be used on the range hood.
Preparations:
1. NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
Determine and mark the center line on the wall where the range hood will be installed. Make
sure there is proper clearance within the ceiling or wall for exhaust vent.
2. Due to the weight and size of this unit, please make sure that the support system or
framework being used is stable and secure in the wall or ceiling.
3. Put a thick, protective covering over counter top, cook top or range to protect from damage
or dirt. Remove any hazardous objects around the area when installing.
4. Mark the locations of the support mounting bracket holes, ducting cutout (if used) and power
supply cable cutout on the wall or ceiling behind the chimney. Use drill and saber saw or
keyhole saw to cut openings for power supply cable and ducting (see Venting Requirements
and Electrical Req uirements, Pages 6 & 9 ).
5. If venting to the outside install vent system (see Venting Methods, Page 7). Use caulking to
seal exterior wall or roof openings.
6. Disconnect main electrical supply, prepare and run electrical wiring through ceiling or wall.
Install a power outlet within reaching distance of the range hood assembly. DO NOT restore
power until installation is completed.
7. Disconnect power cord, remove the baffle filter by pressing on the latch toward the direction
of solid arrow while holding the metal handle, gently pull the aluminum filter toward the
direction of dashed arrow as shown in Figure 1.
8. Set aside the baffle filters and grease cup until the range hood is properly installed.
9. If the range hood comes with a glass canopy and has not already been mounted to the hood,
loosen the four canopy screws and washers from the hood top, carefully place the canopy on
the hood top, and loosely tighten the four canopy screws along with washers. DO NOT put
excessive pressure against the glass.
&WARNING
&WARNING
Severe Injury
Rotating fan can cause severe
injury. Stay clear of fan when
power is present.
---------------------�·"'·"'(�,,-------------------
Installation Overview
®
--�
i
®
Qty: 9 PCS
�@
---+----- Upper Chimney
@
Qty: 2 PCS
®
---+----- Lower Chimney
�©
Qty: 9 PCS
------- 6" Round Duct (Exhaust)
------- Motor Housing
Note: Type "A" anchors are
designed for for dry wall or
sheet rock. Not to be used
with any other types of walls.
Wall Mount
Range Hood
Installation
1. Confirm where you want your range hood installed
Confirm your centerline and side measurements of
each piece of hardware. Use removable tape, pencil,
or erasable marker to mark your ideal installation.
Measure the distance between the stovetop and the
bottom edge of your range hood and then confirm
the recommended height of 26" to 30"*; Mark where the bottom of your range will be
installed.
*Due to different ceiling height configurations, this recommended height range may not be
applicable.
---------------------1-n,1----------------------
Troubleshooting
If the range hood or light
does not operate after
installation:
• Check if the range hood has been plugged in, make
sure that all power has been turned back ON, and all
electrical wiring are properly connected.
Swap out light bulb to working ones to determine
• whether it is caused by defective bulbs. See
Replacing the light bulbs on Page 20.
The range hood vibrates
when the suction is on:
• The range hood might not have been secured
properly on to the ceiling or wall. Check with your
installer
• Check that the duct sized used is at least 6".
Range hood WILL NOT function
efficiently with insufficient duct size. For example:
7" duct over 6" hole and loosely secured.
• Check if duct is clogged or if damper unit
(half-circular flapper) is not installed correctly or
opening properly. A tight mesh on a side wall cap
unit might also cause restriction to the air flow.
The lights work but the
suction is not spinning, is
stuck or is rattling.
• The blower might be jammed or scraping the
bottom due to shipping damage. Please contact us
immediately.
• Make sure the distance between the stove top and
the bottom of the hood is within 26" and 30" in
distance. *Due to different ceiling height
configurations, recommended height may not be
applicable.
• Reduce the number of elbows and length of duct
work. Check if all joints are properly connected,
sealed, and taped.
• Make sure the power is on high speed for heavy
cooking.
Purpose of the
slots/holes/openings near the
top of the upper chimney:
• These slots/holes/openings are used to exhaust
filtered air.
Note: For all other inquiries, please contact us. Our contact if/formation can be found on the back cover page.
--------------------ID!l-P!� l'P. f.�■1-------------------
Electric Schematic
Black
--
--
L
E
N
l Green
White
7
_J
--
L M H
Motor
Lamp
Touch Switch PCB
* Subject to change without notice, please contact your local reseller for details.
Mt=•
