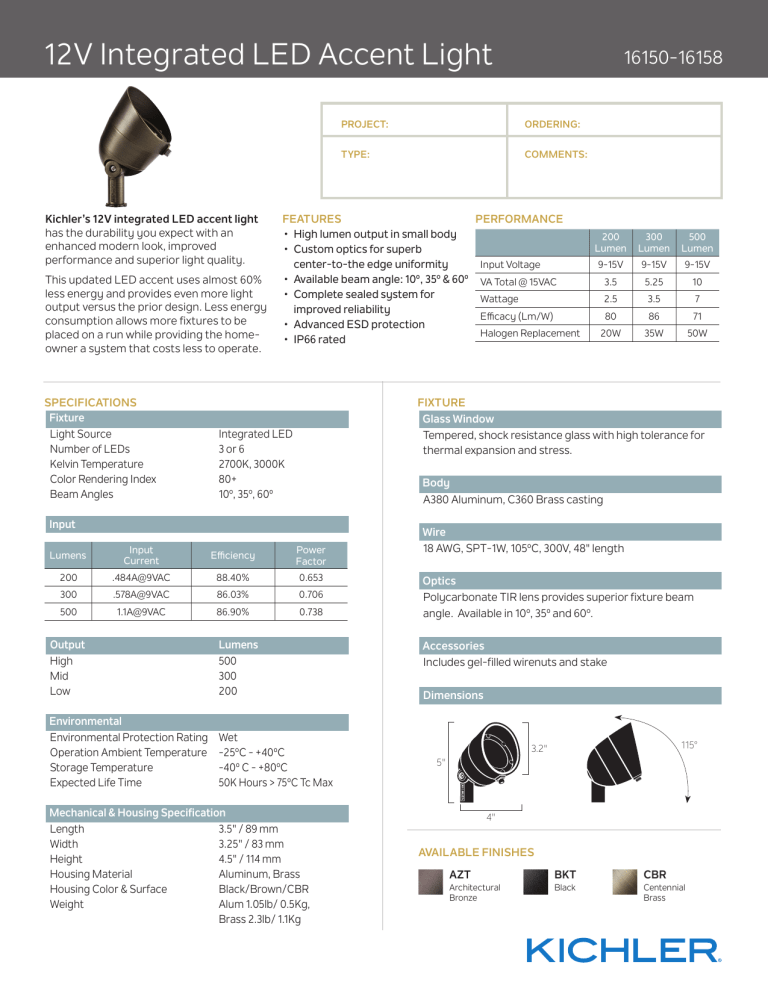

12V Integrated LED Accent Light
Kichler’s 12V integrated LED accent light
has the durability you expect with an
enhanced modern look, improved
performance and superior light quality.
This updated LED accent uses almost 60%
less energy and provides even more light
output versus the prior design. Less energy
consumption allows more fixtures to be
placed on a run while providing the homeowner a system that costs less to operate.
SPECIFICATIONS
Fixture
Light Source
Number of LEDs
Kelvin Temperature
Color Rendering Index
Beam Angles
16150-16158
PROJECT:
ORDERING:
TYPE:
COMMENTS:
FEATURES
PERFORMANCE
• High lumen output in small body
• Custom optics for superb
center-to-the edge uniformity
Input Voltage
• Available beam angle: 10º, 35º & 60º VA Total @ 15VAC
• Complete sealed system for
Wattage
improved reliability
Efficacy (Lm/W)
• Advanced ESD protection
Halogen Replacement
• IP66 rated
200
Lumen
300
Lumen
500
Lumen
9-15V
9-15V
9-15V
3.5
5.25
10
2.5
3.5
7
80
86
71
20W
35W
50W
FIXTURE
Glass Window
Tempered, shock resistance glass with high tolerance for
thermal expansion and stress.
Integrated LED
3 or 6
2700K, 3000K
80+
10º, 35º, 60º
Body
A380 Aluminum, C360 Brass casting
Input
Lumens
Input
Current
Efficiency
Power
Factor
200
[email protected]
88.40%
0.653
300
[email protected]
86.03%
0.706
500
[email protected]
86.90%
0.738
Output
High
Mid
Low
Lumens
500
300
200
Environmental
Environmental Protection Rating
Operation Ambient Temperature
Storage Temperature
Expected Life Time
Wet
-25ºC - +40ºC
-40º C - +80ºC
50K Hours > 75ºC Tc Max
Mechanical & Housing Specification
Length
3.5" / 89 mm
Width
3.25" / 83 mm
Height
4.5" / 114 mm
Housing Material
Aluminum, Brass
Housing Color & Surface
Black/Brown/CBR
Weight
Alum 1.05lb/ 0.5Kg,
Brass 2.3lb/ 1.1Kg
Wire
18 AWG, SPT-1W, 105ºC, 300V, 48" length
Optics
Polycarbonate TIR lens provides superior fixture beam
angle. Available in 10º, 35º and 60º.
Accessories
Includes gel-filled wirenuts and stake
Dimensions
115°
3.2"
5"
4"
AVAILABLE FINISHES
AZT
BKT
CBR
Architectural
Bronze
Black
Centennial
Brass
12V Integrated LED Accent Light
16150-16158
INSTALLATION INFORMATION
AC Voltage (VA)
Lumens
9V
12V
15V
9V
12V
15V
200
4.32
4.25
5.1
2.8
2.76
2.73
300
5.13
5.3
6.11
3.56
3.51
3.49
500
9.74
9.42
10.1
Wire Gauge / Length / (ft/m) Load Chart
DC Voltage (W)
6.9
6.87
Power (W)
10
12
14
16
0-20
1860/567
1150/351
730/223
450/137
40
930/283
580/177
370/113
230/70
60
620/189
390/119
240/73
150/46
80
470/143
290/88
180/55
110/34
100
370/113
230/70
140/43
90/27
6.73
>100
1
2
3
16150 = Small 10º Spot
16151 = Small 35º Flood
16152 = Small 60º Wide Flood
AZT = Textured Architectural Bronze
BKT = Black
CBR = Centennial Brass
27 = 2700K, Warm White
30 = 3000K, Pure White
Item Number for Fixture
Size & Beam Angle:
Ordering Guide
(product number
breakdown)
Item
Number
Beam Angle
8'
12'
24'
36'
48'
60'
Item
Number
Beam Angle
Max Candela
Ft. Away
8'
12'
24'
36'
48'
60'
8'
12'
24'
36'
48'
60'
Color
Temperature:
C BR
3 0
16150
16151
16152
10° Spot
35° Flood
60° Wide Flood
3867
527
221
Foot-candles
Beam Width
Ft.
Foot-candles
Beam Width
Ft.
Foot-candles
Beam Width
38.4
17.1
4.3
1.9
1.1
.7
1.5
2.2
4.5
6.7
8.9
11.1
4'
8'
16'
24'
32'
40'
21.7
5.4
1.4
.6
.3
.2
2.5
4.9
9.8
14.7
19.6
24.5
4'
8'
16'
24'
32'
40'
8.3
2.1
.5
.2
.1
.1
4.2
8.3
16.7
25
33.3
41.7
16153
16154
16155
10° Spot
35° Flood
60° Wide Flood
5213
738
282
Foot-candles
Beam Width
Ft.
Foot-candles
Beam Width
Ft.
Foot-candles
Beam Width
66.2
29.4
7.4
3.3
1.8
1.2
1.5
2.3
4.6
6.9
9.2
11.5
4'
8'
16'
24'
32'
40'
30.5
7.6
1.9
.9
.5
.3
2.5
5
9.9
14.9
19.8
24.8
4'
8'
16'
24'
32'
40'
10.7
2.7
.8
.3
.2
.1
4.3
8.7
17.4
26.1
34.8
43.4
Item
Number
Beam Angle
Max Candela
Ft. Away
Product
Finish:
16150
Example: 16150 CBR 30
Max Candela
Ft. Away
Consult Technical Support
16156
16157
16158
10° Spot
35° Flood
60° Wide Flood
9236
1298
514.4
Foot-candles
Beam Width
Ft.
Foot-candles
Beam Width
Ft.
Foot-candles
Beam Width
111
49.3
12.3
5.5
3.1
2
1.5
2.2
4.4
6.6
8.7
10.9
4'
8'
16'
24'
32'
40'
54
13.5
3.4
1.5
.8
.5
2.4
4.8
9.7
14.5
19.3
24.2
4'
8'
16'
24'
32'
40'
19.2
4.8
1.2
.5
.3
.2
4.2
8.4
16.8
25.2
33.6
42
Visit Kichler.com/Landscape
© The L.D. Kichler Co. Kichler® All rights reserved.
12V Integrated LED Accent Light
16150-16158
TROUBLESHOOTING
Fixture does not illuminateVerify power connections. Review installation guide for installation problem. Insure manual reset
breaker has not been tripped.
Fixture turns offVerify power connections. Review installation guide for installation problems. Insure manual reset
breaker has not been tripped. Check voltage drop at fixture.
Fixture trips breakerCheck installation for a possible short or overload state. Isolate the identified short and replace
affected fixture or remove fixture(s) installed in overload.
LISTING
UL 1838 Issued: 2003/01/13 Ed: 3 Rev: 2015/01/13
Low Voltage Landscape Lighting Systems.
Contact: [email protected]
CSA C22.2#250.7 Issued: 2007/11/01 (R2012)
Ed: 1 Extra-low-voltage landscape lighting systems –
General Instruction No. 1: 2008.
1. Chip binning ranges: (2700K 80+ CRI: 3 step), (3000K 80+ CRI: 3 step). LED chip data measured in
accordance to IES LM-80
2. Fixture has a 90% confidence luminous flux range to stated 3000K CCT target. Photometric
(flux and color) data has been measured in accordance to IES LM- 79.
3. Actual efficacy value can be calculated as follows: Lumen value divided by average power consumption.
4. Do not extend beyond the recommended maximum run length.
5. Recommend product be installed with 10 or 12 gauge wire.
6. Recommend 80% load/20% overhead rule for fixture load planning in reference to the power source.
Calculating fixture loading this way provides additional resource for fixture adjustment and loss due
to voltage drop due to wire run lengths.
WARRANTY
10-year limited warranty
See Kichler.com/Warranty for warranty details.
Consult Kichler Advanced Product Solutions
for additional product support and design
layouts by visiting Kichler.com/APS.
7. We reserve the right to modify and improve the design of our fixtures without prior notice. We cannot
guarantee to match existing installed fixtures for subsequent orders or replacements in regards to
product appearance, CCT, or lumen output.
8. Do not modify product beyond instructions or warranty will be void.
AZT
BKT
CBR
Visit Kichler.com/Landscape
© The L.D. Kichler Co. Kichler® All rights reserved.
ST17LD5147 | LD20009
