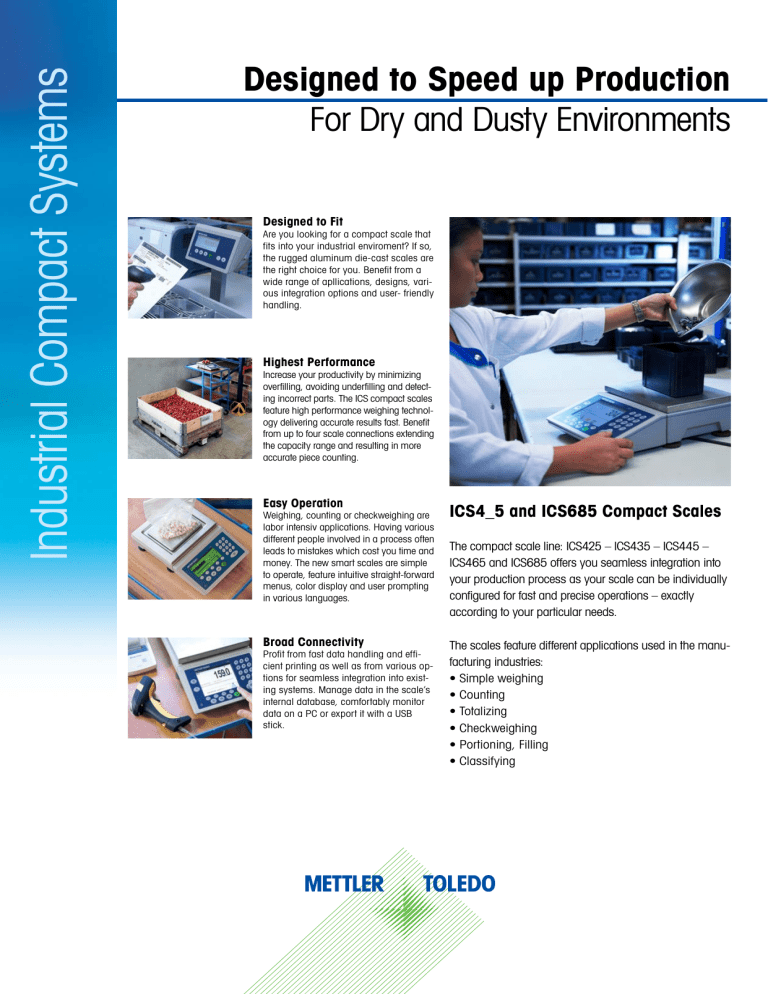

Industrial Compact Systems
Designed to Speed up Production
For Dry and Dusty Environments
Designed to Fit
Are you looking for a compact scale that
fits into your industrial enviroment? If so,
the rugged aluminum die-cast scales are
the right choice for you. Benefit from a
wide range of apllications, designs, various integration options and user- friendly
handling.
Highest Performance
Increase your productivity by minimizing
overfilling, avoiding underfilling and detecting incorrect parts. The ICS compact scales
feature high performance weighing technology delivering accurate results fast. Benefit
from up to four scale connections extending
the capacity range and resulting in more
accurate piece counting.
Easy Operation
Weighing, counting or checkweighing are
labor intensiv applications. Having various
different people involved in a process often
leads to mistakes which cost you time and
money. The new smart scales are simple
to operate, feature intuitive straight-forward
menus, color display and user prompting
in various languages.
Broad Connectivity
Profit from fast data handling and efficient printing as well as from various options for seamless integration into existing systems. Manage data in the scale’s
internal database, comfortably monitor
data on a PC or export it with a USB
stick.
ICS4_5 and ICS685 Compact Scales
The compact scale line: ICS425 – ICS435 – ICS445 –
ICS465 and ICS685 offers you seamless integration into
your production process as your scale can be individually
configured for fast and precise operations – exactly
according to your particular needs.
The scales feature different applications used in the manufacturing industries:
• Simple weighing
• Counting
• Totalizing
• Checkweighing
• Portioning, Filling
• Classifying
Terminals
Technical Data
Model
ICS425
ICS435
ICS445
ICS465
ICS685
•
•
•
•
•
Counting; Totalizing
•
•
•
Over/Under Checkweighing; Portioning
•
•
•
Basic weighing; average weighing
Totalizing to a target, Classifying
•
colorWeight®
•
•
Configurable soft keys
•
•
•
User prompting
•
•
•
numeric
alpha-numeric
User management
•
Keypad
Number of attachable platforms
numeric
1
1
Data storage
2
2
4*
100 entries
100 entries
5000 entries
•
•
•
optional
optional
standard**
Support of Database Software “DatabICS”
Optional Alibi Memory (300,000 entries)
* Maximum 1 analog scale
** Also configurable as transaction memory with customized data format
General Specifications
Resolution
Analog platforms: up to 300,000d; 7,500e, OIML / 10,000d, NTEP
Digital platforms: The resolution is defined by the respective platform
Display ICS425,435,445,465
LCD liquid crystal graphical display with backlighting; 3 different display layouts
Display ICS685
Color TFT Display, size of 320 x 240 pixel
Display languages
English, German, French, Italian, Spanish, Chinese, Portuguese, Japanese
Character height
Standard ICS4_5: 19mm; ICS685: 17 mm; max. configurable for all ICS__5: 25 mm
Dimensions
248 x 164 x 78 mm (CAD data available on mt.com)
Housing
Aluminium die-cast
Ingress Protection
IP5x as standard & IP65 optional
Power Connection
100 – 240 V / 50 – 60 Hz / 300 mA, Length of power cord approx. 2.5 m
Battery (Option)
12 VDC / 2.5 A Continuous operation with one strain gauge load cell ~ 22 h; with 4 strain
gauge load cells ~ 18 h. (Duration decreases with installed options like e.g. WLAN).
Life time: 500 to 1000 charging/discharging cycles
Interfaces (Standard and Options)
Standard: 1 x scale interface (SICSpro) / 1 x RS232 data interface
ICS4_5 offers 1 optional interface and ICS685 up to 3 interfaces.
Possible optional interfaces: RS232, RS422/485, USB device, USB host, Ethernet, WLAN,
Digital I/O, IDNet scale, SICSpro scale, analog scale
Interface update rate
Max. 10 weighing values/sec through RS232, RS422/485, Ethernet and WLAN.
Use of multiple interfaces might cause speed reduction.
Connectable platforms
All Analog & SICS & SICSpro platforms
IDNet interface only possible if terminal is ordered as separate unit
Analog scale interface specification
Impedance: ≥ 87.5 Ω (means 1 x 350 Ω; 4 x 350 Ω),
Excitation: 3.3 VDC, Sensitivity: 2 to 3 mV/V
Max. Resolution: 7500e (OIML), 300 000d (non-approvable)
Min. verification scale interval: 0.264 μV/e
Class II, 10 to 30 °C (PBK7-Serie)
Class II, 0 to 40 °C (PBK9-Series, PFK9-Series)
Class III, -10 to 40 °C (Strain gauge)
Temperature Range
Humidity
Max. rel. humidity 85 % for temperatures up to 40 °C
Net / Shipping weight
2 kg / 2.5 kg (terminal only)
Approvals
OIML, NTEP, CE, CSA, GMP (Weights & Measures data is shown in display and indicates if
system is approved/not-approved)
248 mm
2
33 mm
78 mm
Dimensions
164 mm
Compact Scales
For highest precision: MonoBloc ® technology
• Approved resolution up to 61 000e OIML, Class II
• Non-approved resolution up to 610 000d
• Fully Automated Calibration Technology (FACT) function calibrates the scale according to time and temperature changes and
increases accuracy of weighing results
Single Range Platforms ICS425k- / ICS435k- / ICS445k- / ICS465k- / ICS685kPlatform Type
0.6XS/f
3XS/f
6XS/f
6SM/f
15LA/f
35LA/f
Capacity [g]
610
3100
6100
6100
15100
35100
Readability not approved, d [g], standard
0.001
0.01
0.01
0.1
0.1
0.1
Readability approved, e [g]*
0.01
0.1
0.1
1
1
1
Readability approved, e [g], option
-
-
-
0.2
0.5
-
Repeatability (sd) [g]
0.001
0.01
0.01
0.1
0.1
0.1
Linearity Deviation [g]
0.002
0.02
0.02
0.2
0.2
0.2
Ingress Protection: Standard/Optional
IP5x/-
IP5x/IP65
IP5x/IP65
IP5x/IP65
IP5x/IP65
IP5x/IP65
Weight of compact scale [kg]
6.4
5.7
5.7
5.7
9.0
9.0
Delta Range Platforms ICS425k- / ICS435k- / ICS445k- / ICS465k- / ICS685kPlatform Type
0.6XS/DR
3XS/DR
6XS/DR
6SM/DR
15LA/DR
35LA/DR
Capacity [g]
120/610
600/3100
1200/6100
1200/6100
3000/15100
7000/35100
Readability not approved, d [g], standard
0.001/0.01
0.01/0.1
0.01/0.1
0.1/1
0.1/1
0.1/1
Readability approved, e [g]*
0.01
0.1
0.1
1
1
1
Other specifications are identical to single range platforms.
*Scale shows standard readability with last digit in small font.
For optimum performance: Strain gauge technology
• Approved resolution of 1 x 6000e OIML, Class III
• Non-approved resolution up to 60 000d
Platforms ICS425s- / ICS435s- / ICS445s- / ICS465s- / ICS685sPlatform Type
3SM /f
6SM /f
15LA /f
35LA /f
PBD655/t
Capacity [kg]
3
6
15
35
Readability not approved, d [g], standard
0.5
1
2
5
Readability not approved, d [g], option
0.05
0.1
0.2
0.5
Readability approved, e [g]
0.5
1
2
5
Repeatability (sd) [g]
0.05
0.1
0.2
0.5
Linearity Deviations [g]
0.1
0.2
0.5
1
for higher capacities from
6 - 600 kg, 1 x 6000e OIML,
platform size
240 x 300 mm
600 x 800 mm
see brochure PBD655 Digital
Weighing Platform
Ingress Protection: Standard/Optional
IP5x/IP65
IP5x/IP65
IP5x/IP65
IP5x/IP65
IP65
Weight of scale [kg]
5.5
5.5
7.7
7.7
-
Accessories
• Cable with plugs for the offered interfaces
• Column (height 330 mm)
• Wall bracket
• Windshield**
• Printers
• Protective cover for terminal
** ...0.6XS standard; ...3XS, ...6XS optional
• Battery charger
• Auxiliary display
• Relay module
• Power supply conversion kit
to operate on 9-28 Volt DC
Model with accessory column
(height: 330 mm)
3
Dimensions and Drawings
Compact Scale with Small Platform (XS and SM types)
Scale ICS__5k-0.6XS MonoBloc
with Windshield
Platform size
XS: 160 x 130 mm / SM: 240 x 200 mm
Compact Scale with Large Plattform (LA types)
Platform size
LA: 350 x 240 mm
Additional Information:
Terminal can be separated from XS, SM or LA platform with 2 screws. Platform comes with cable of 0.8 meter length placed under plastic cover.
Mettler-Toledo AG
CH-8606 Greifensee
Switzerland
Phone +41 44 944 22 11
Fax
+41 44 944 30 60
Subject to technical changes
© 07/2015 Mettler-Toledo AG
MarCom Industrial
MTSI 302499632
17025
ISO/IEC17025 Accredited
Service Organizations
Results, not promises.
www.mt.com
