Victron Energy Lithium HE Battery Quick User Guide

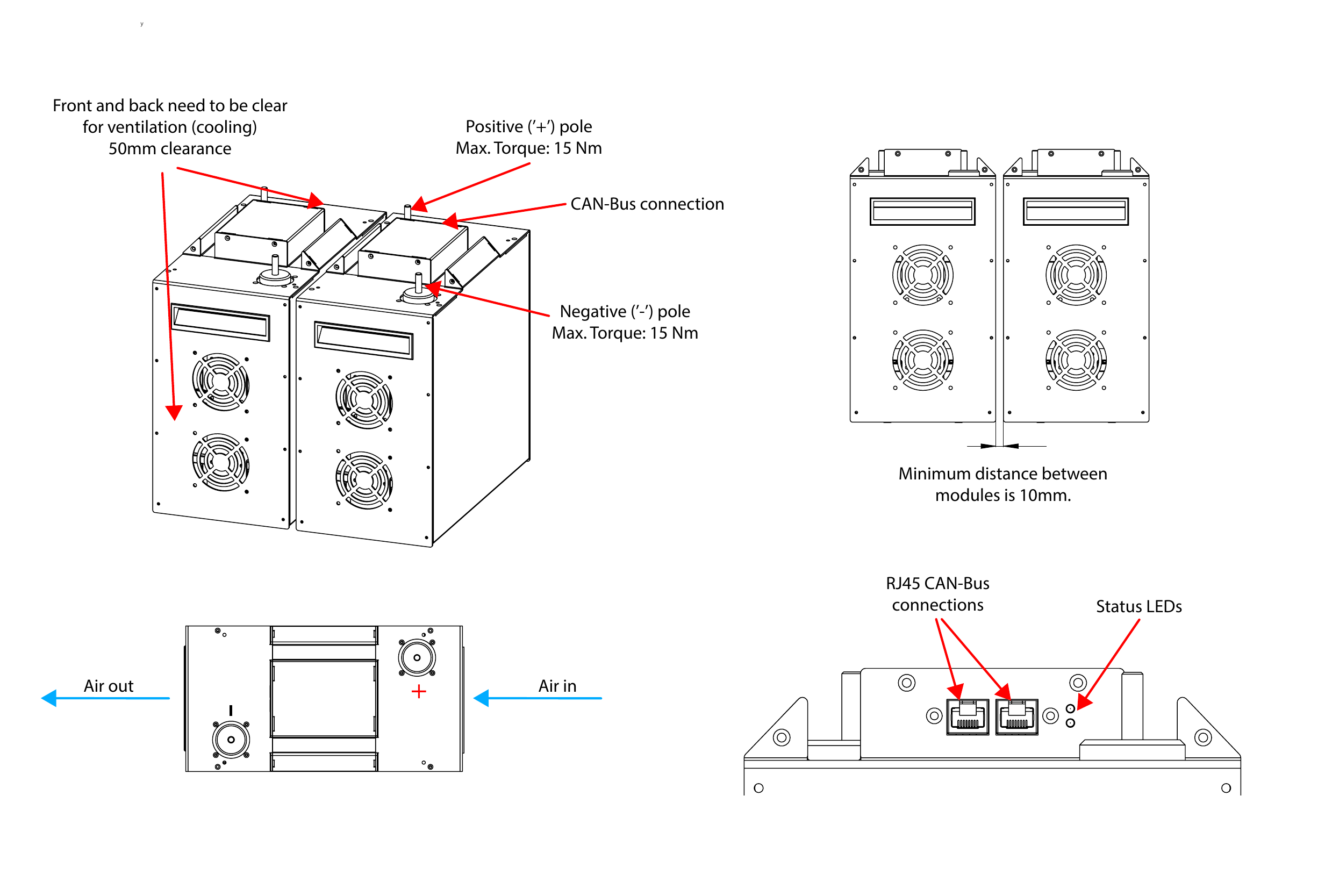

Front and back need to be clear
for ventilation (cooling)
50mm clearance
Positive (’+’) pole
Max. Torque: 15 Nm
CAN-Bus connection
Negative (’-’) pole
Max. Torque: 15 Nm
Minimum distance between
modules is 10mm.
RJ45 CAN-Bus
connections
Air out
Air in
Status LEDs
48V example connection
200mm
Approx. 200mm clearance.
BMS CAN-Bus
100mm
CAN-Bus
terminator
Minimum 100mm clearance for
ventilation (cooling)
Mounting by bracket or straps
Minimum distance between
